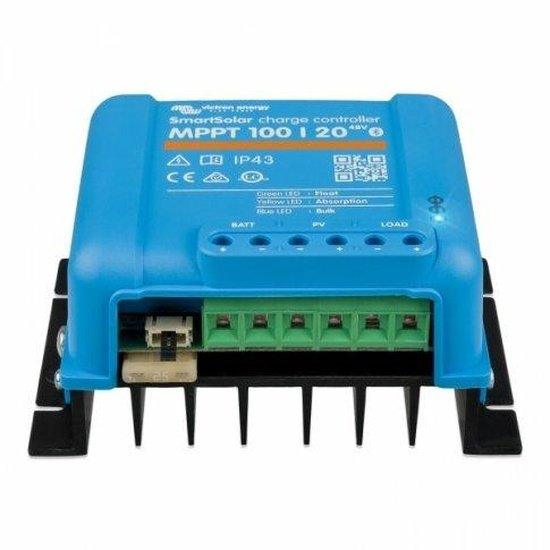

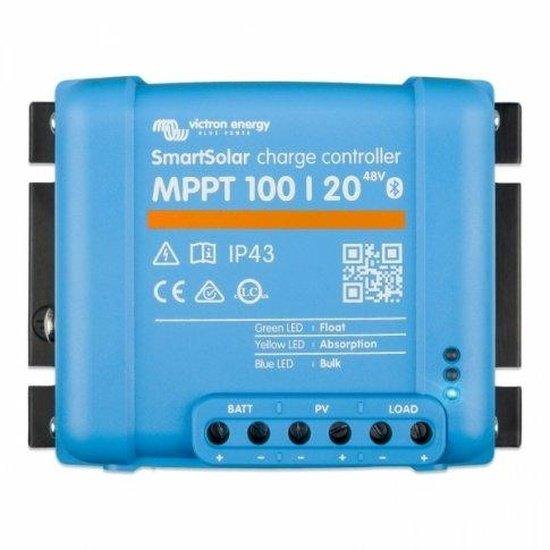

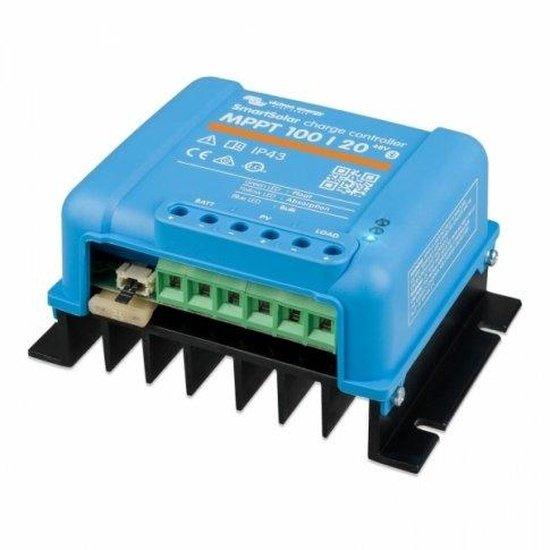

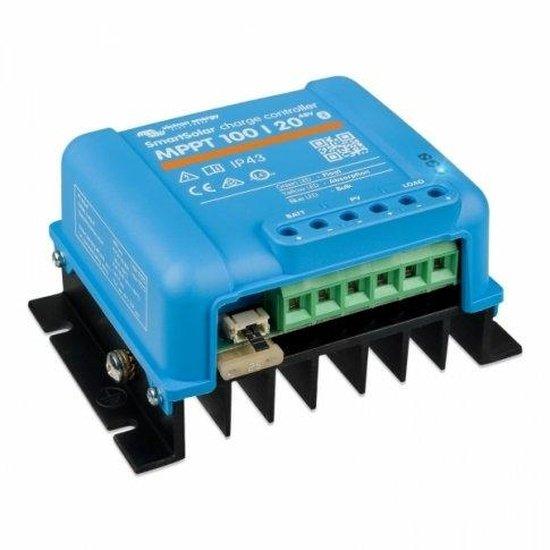

Victron SmartSolar MPPT 100/20 20A solar charge controller for solar panels up to 290W (12V) / 580W (24V) / 1160W (48V) up to 100V (Bluetooth inbuilt)

Victron SmartSolar MPPT 100/20 20A solar charge controller for solar panels up to 290W (12V) / 580W (24V) / 1160W (48V) up to 100V (Bluetooth inbuilt) This Victron 100V 20A MPPT?ÿcontroller comes?ÿfrom the intelligent SmartSolar range, which uses the latest ultrafast MPPT technology to?ÿmaximise energy harvest whilst maintaining optimal battery health. This SmartSolar MPPT controller uniquely features built-in Bluetooth , to allow remote system monitoring via any Bluetooth enabled device,?ÿin addition to an intelligent BatteryLife function?ÿ. Ultrafast MPPT Technology: This 20A MPPT solar charge controller is designed to deliver the highest possible energy yield in the shortest amount of time.?ÿThis is achieved?ÿthrough the use of high speed Maximum Power Point Tracking technology, which?ÿtracks the maximum power voltage point of the solar panels as it varies depending on sunlight exposure and temperature.?ÿ This?ÿtechnology enables the controller to produce?ÿup to?ÿ30% greater energy yield than PWM controllers and as much as 10% more power than slower MPPT controllers. This advanced technology?ÿallows the controller to?ÿperform extremely well?ÿin low-light or cloudy conditions, as the controller consistently strives to extract?ÿthe maximum?ÿavailable power from the solar array. Inbuilt safety protection: Fully equipped with an extensive range of safety features, this controller?ÿoffers complete?ÿprotection against potential hazards such as battery reverse polarity, load short circuit, low-voltage load disconnect and battery overheating -?ÿmonitored via the internal temperature sensor. The controller also has self-diagnostic capability?ÿand highlights?ÿany system errors using sophisticated fault-targeting technology.?ÿThese?ÿare signalled via the high intensity LED indicators.?ÿ?ÿ Intelligent 'BatteryLife' function: To prevent complete discharge of the battery?ÿand avoid potentially permanent damage,?ÿthis controller is equipped with the Victron BatteryLife function; a state-of-the-art feature designed to extend the lifetime of the battery by monitoring and controlling the output of?ÿexcessive loads. Using an intelligent algorithm, the controller will continuously monitor the battery state of charge, and if required (e.g. during periods of poor weather), will?ÿgradually adjust the load disconnect threshold until a full 100% recharge is consistently achieved on a?ÿweekly basis. Alternatively, the load voltage disconnect point can be?ÿmanually configured to your preferred level, using the VictronConnect software (see below). Inbuilt Bluetooth: This SmartSolar?ÿcharge controller features?ÿ built-in Bluetooth which allows the user to easily connect to any Bluetooth enabled device, such as a mobile phone, tablet or?ÿiPad?ÿin order to access ?ÿ the VictronConnect App ?ÿ(no additional Bluetooth dongle required).?ÿThe?ÿmobile app unlocks?ÿnumerous possibilities for?ÿadvanced programming and remote monitoring of your Victron SmartSolar system. Once the controller is paired with the app,?ÿa wide range of?ÿadditional features are made available, including: Live data transmission: Real-time information is displayed including solar panel output, battery voltage and current (flowing into and out of the battery) as well as battery state of charge. Detailed?ÿdata logs: System activity for the past 30 days is available to?ÿview; either as in-depth daily logs or as a monthly summary. These easy-view graphics display daily energy yield, maximum recorded power and voltage, time spent in each charging stage, minimum and maximum recorded battery voltages, error records and total energy counters. Load configuration: Option to choose from one of the pre-set load management programs or create a user-defined program. Includes a streetlight function to control the duration and brightness of nighttime lighting. The VictronConnect App is?ÿalso available to download?ÿas a PC version , for computers without bluetooth connectivity. If you would like to?ÿuse?ÿthe PC version of the app to monitor/program your SmartSolar system, this controller can be connected to your PC via a VE Direct USB cable . Optional Remote LCD Display: The user can connect an optional MPPT Control panel (sold separately) to the controller to access a range of monitoring and programming functions. The display shows charging parameters (voltage, current,?ÿpower) for the solar panel, battery and load, as well as 30 day?ÿperformance data. The user can also adjust the load settings and?ÿspecifically set the duration and voltage of each charging stage.?ÿ?ÿ Other features: The Victron SmartSolar MPPT?ÿ100/20 model is ideal for a wide range of applications as it is resistant to extreme temperatures, high altitudes, dusty environments and marine environments. The unit enclosure is IP43 water resistant with resin encapsulation of the internal electrical components and has a PD3 pollution rating. This solar charge controller is also compatible with a wide range of battery types, including AGM, Gel , Tubular plate and Lithium batteries. Click on the Details and Specifications tab for more information about this product. Specifications: - The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system - Fully automated operation and auto 12 / 24V selection -?ÿ3 pairs of terminals (solar panel, battery, load) for wires up to 6mm2 - Inbuilt bluetooth - Max solar panel voltage: 100V - Max solar panel power: 290W (12V) / 580W (24V) / 1160W (48V) - Temperature sensor for automatic compensation (-16mV ?øC resp. -32mV ?øC) - Comprehensive electronic protection features - Communication port: RS232 / TTL?ÿfor VE Direct accessories - Self-consumption (load on): 12V: 26mA / 24V: 20mA / 48V: 19mA - Self-consumption (load off): 12V: 10mA / 24V: 8mA / 48V: 7mA - Load Current : 20A (12V/24V); 1A (48V) - Working temperature: -30?øC to +60?øC - IEC/EN certified - Enclosure: IP43 (electronic components)?ÿ/ IP22 (connection area) - Pollution Degree rating: PD3 - Dimensions:?ÿ100 x?ÿ113 x?ÿ60?ÿmm - Mounting dimensions:?ÿ99 x 84?ÿmm - Weight: 650g - 4 x mounting holes for ease of installation This product is covered by a?ÿ 5 year warranty .?ÿ This product comes with a detailed user manual which explains wiring and operations (see Documents tab). If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone. The following documents are available to download: User manual for Victron 20A MPPT SmartSolar solar charge controller VSSM100-20 Product datasheet for Victron 20A MPPT SmartSolar solar charge controller VSSM100-20
