Product Details

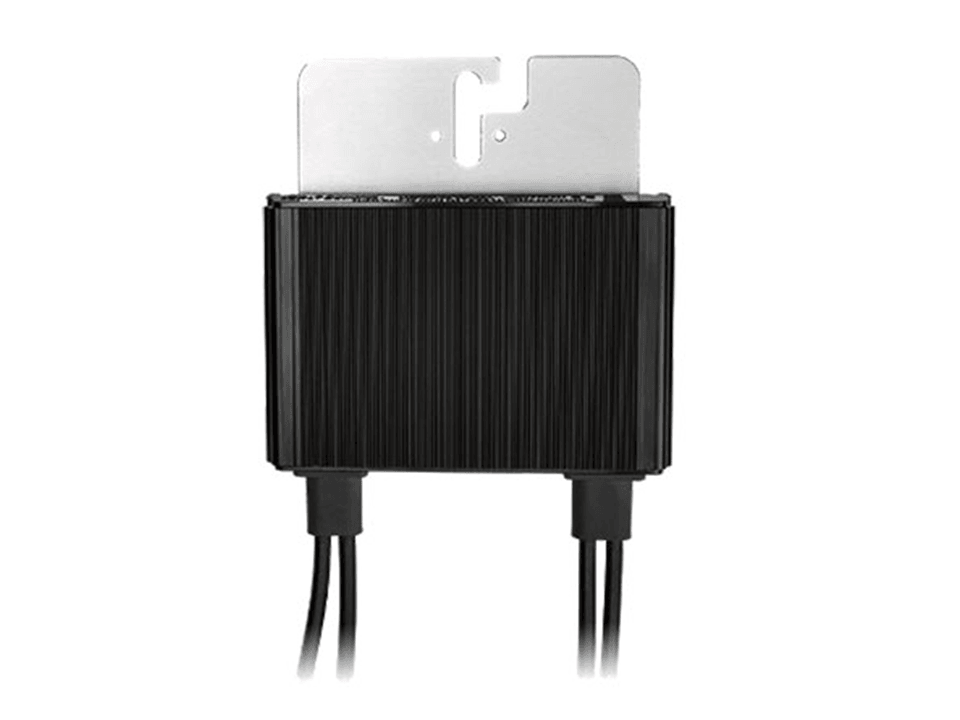

S500 Solar Edge Power Optimizer - International sales only
The S500 Power Optimiser is suitable for use with high power modules with output up to 500W, provided that both Voc (60V) and Isc (15A ) are not exceeded.
Optimisers allow for uneven strings, longer strings, mix of panel types and orientations on the same string as well as reducing the impact of partial shading on the array.
Specifications:
- Max input Voc: 60V
- Max current Isc: 15A
- Minimum number of optimisers: 8
- Maximum number of optimisers: 25
SolarEdge have a system design tool, available here. See also the site designer tutorial and the full list of benefits of using solaredge.
Part No: S500-MC4 Inverters - Optimisers
SE P500 Optimiser Installation Guide
- Specifically designed to work with SolarEdge residential inverters
- Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
- Faster installations with simplified cable management and easy assembly using a single bolt
- Detects abnormal PV connector behavior, preventing potential safety issues
- Module-level voltage shutdown for installer and firefighter safety
- Flexible system design for maximum space utilization
- Compatible with bifacial PV modules
- Superior efficiency (99.5%)
