Product Details

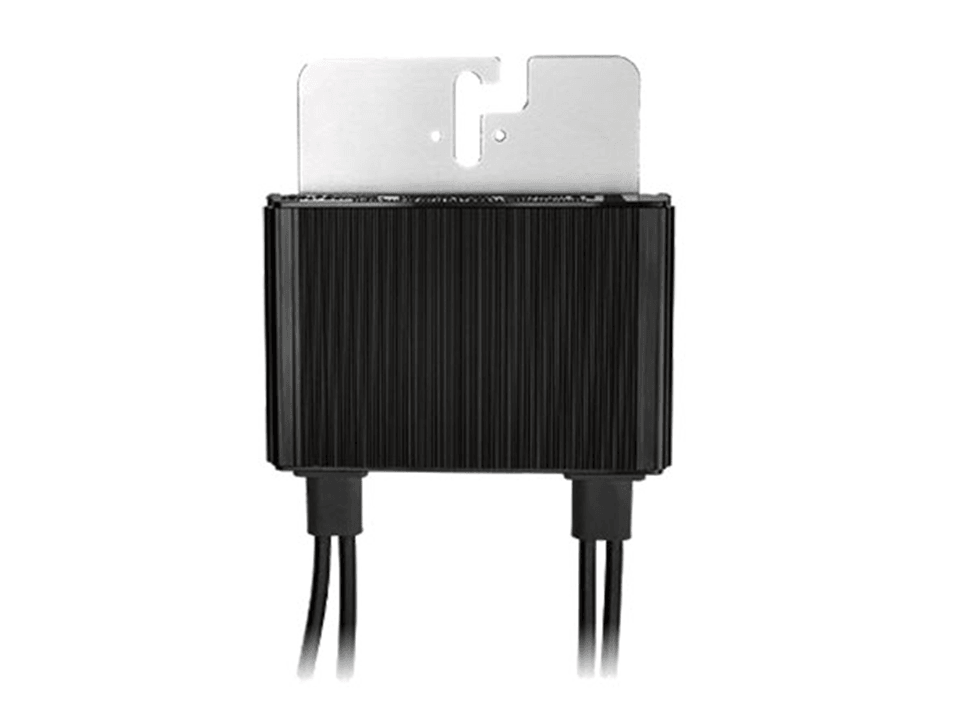

S440 Solar Edge Power Optimizer
The S440 Power Optimiser is suitable for use with high power modules with output up to 440W, provided that both Voc (60V) and Isc (14.5A ) are not exceeded.
Optimisers allow for uneven strings, longer strings, mix of panel types and orientations on the same string as well as reducing the impact of partial shading on the array.
Specifications:
- Max input Voc: 60V
- Max current Isc: 14.5A
- Minimum number of optimisers: 8
- Maximum number of optimisers: 25
SolarEdge have a system design tool, available here. See also the site designer tutorial and the full list of benefits of using solaredge.
SE S440 Optimiser Ground Mounted Manual
SE S440 Optimiser Certification
Minimum order - 360
Part No: S440-MC4 Inverters - Optimisers
- Specifically designed to work with SolarEdge residential inverters
- Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
- Faster installations with simplified cable management and easy assembly using a single bolt
- Detects abnormal PV connector behaviour, preventing potential safety issues
- Module-level voltage shutdown for the installer and firefighter safety
- Flexible system design for maximum space utilization
- Compatible with bifacial PV modules
- Superior efficiency (99.5%)
