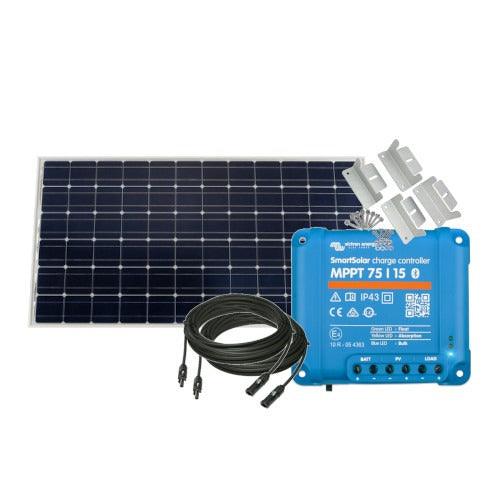

Victron 175W Mono Solar Panel Kit with SmartSolar MPPT 75/15, Solar cable and Mounts

Regular price £329.99 Sale

per
Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU: VJ175-Zbrackets

  • For all products over £50 you will get an extra 10% off, right in the check-out page!!
  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping

  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

    This 175w Solar Panel Kit is designed for off-grid, campervans, motorhomes and yachts/boats. The included Victron SmartSolar MPPT 75/15 charge controller ensures maximum power output and battery charging efficiency.This kit is perfect for those looking to set up a reliable and efficient solar power system for campervan conversions, boats, yachts, motorhomes and other off-grid applications.



    Victron Energy Solar Panel 12V 175W Mono series 4a

    • Low voltage-temperature coefficient enhances high-temperature operation.
    • Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
    • 25-Year limited warranty on power output and performance.
    • 5-Year limited warranty on materials and workmanship.
    • Sealed, waterproof, multi-functional junction box gives high level of safety.
    • High performance bypass diodes minimize the power drop caused by shade.
    • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
    • A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
    • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
    • High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.




    Victron Energy SmartSolar MPPT 75V 15A

    A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

    The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.



    Features

    Bluetooth Smart built-in

    The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

    VE.Direct

    For a wired data connection to a Color Control GX, other GX products, PC or other devices

    Ultra-fast Maximum Power Point Tracking (MPPT)

    Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

    Load output

    Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.

    Battery Life: intelligent battery management

    When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

    Programmable battery charge algorithm

    See the software section on our website for details

    Day/night timing and light dimming option

    See the software section on Victron for details

    Internal temperature sensor

    Compensates absorption and float charge voltage for temperature.

    Optional external battery voltage and temperature sensing via Bluetooth

    A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.

    Fully discharged battery recovery function

    Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.




    Victron Energy Solarcable L=5m/4sqmm MC4-M/F

    5m/4spmm MC4-M/F of Solarcable




    Z Bracket Mounting Aluminium Fixing Set

    These brackets are made from 2mm aluminium

    Included:

    • 4x Z-Shape Tabbed Solar Panel Brackets
    • 8x Stainless Steel Self Tapping Screws
    • 4x Stainless Steel Spring Washers
    • 4x Stainless Steel Short Bolts
    • 4x Stainless Steel Washers
    • 4x Stainless Steel Nuts
    Brand

    Victron Energy

    Manufacturer Part Number

    792-SPM041751200, 792-SCC075015060R, 2x 5m40 and Z Bracket

    Solar Panel Voltage

    12V

    Nominal Power

    175W

    Cell Type

    Monocrystalline

    Number of Cells in Series

    36

    Maximum System Voltage

    1000V

    Solar Panel Dimensions

    L1485 x W668 x D30mm

    Solar Panel Weight

    11Kg

    Solar Panel Country of Manufacture

    China

    MPPT Voltage

    12/24V

    Rated Charge Current

    15A

    Nominal PV Power, 12V

    220W

    Max. PV Short Circuit Current

    15A

    Max. PV Open Circuit Voltage

    75V

    Protection Category

    IP43 (electronic components), IP22 (connection area)

    Efficiency

    98%

    Bluetooth Enabled

    Yes

    MPPT Dimensions

    H100 x W113 x D40mm

    MPPT Weight

    0.5Kg

    MPPT Country of Manufacture

    India

    Cable Length

    5m

    Cable Thickness

    4sqmm

    Cable Country of Manufacture

    China

    Warranty

    5 Years

    Advantages of Solar

    Solar panels are a great addition to caravans, campervans and motorhomes for a number of reasons. Not only do they provide a clean and renewable source of energy, but they also offer a number of practical advantages that make them a worthwhile investment for anyone who spends a lot of time on the road.

    One of the biggest advantages of solar panels in caravans and campervans is that they allow you to be more self-sufficient while you're traveling. With a solar panel system, you can generate your own electricity, which means you don't have to rely on hooking up to external power sources. This is especially useful when you're camping in remote areas where there may not be any electrical outlets nearby.

    Another advantage of solar panels in caravans, campervans and motorhomes is that they can help you save money on your energy bills. By generating your own electricity, you can reduce your reliance on more expensive sources of power, such as gasoline generators or hooking up to the grid. This can help you save money on fuel and other energy costs, making solar panels a cost-effective investment in the long run.

    Solar panels are also easy to install and maintain, which makes them a convenient choice for caravans and campervans. They are relatively lightweight, so they won't add a lot of extra weight to your vehicle, and they can be easily mounted on the roof or other parts of your caravan or campervan.

    In addition to the practical advantages, solar panels are also environmentally friendly. They produce clean, renewable energy, which means they don't produce any harmful emissions or contribute to climate change. This makes them a great choice for anyone who is looking to reduce their carbon footprint while they're on the road.

    Overall, solar panels are a great addition to caravans, campervans and motorhomes for anyone who spends a lot of time on the road. They offer a convenient and cost-effective way to generate your own electricity, and they are easy to install and maintain. Plus, they are environmentally friendly, making them a win-win for both practicality and sustainability.
