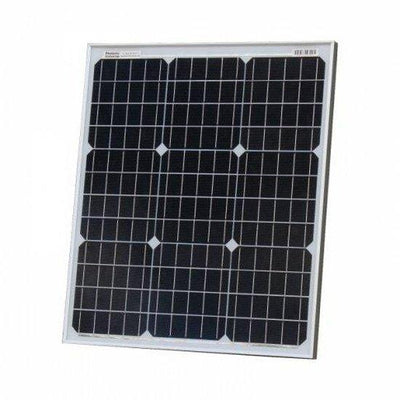

This waterproof 50W 12V monocrystalline solar panel is highly efficient and ideal for outdoor use. It's perfect for charging 12V batteries to power various applications like camper vans, motorhomes, boats, sheds, farms, as well as remote applications like telecommunications or monitoring equipment. The panel comes with 5m of special solar cable designed to work at high roof temperatures with minimal power losses. It also features a pair of male/female MC4 connectors crimped on the end of the cable for easy connection to other solar panels, your existing system, or 2.5mm extension cable. These connectors can be cut off when wiring to the screw terminals of a solar charge controller.

The long-lasting, high-efficiency monocrystalline solar cells and tough, sealed aluminum frame ensure years of consistent, free power. The panel's waterproof design allows for use in all weather conditions. It also features innovative 5 busbar solar cells which are more efficient than the 2, 3, or 4 busbar solar cells used in most other solar panels, and are able to extract more power from the same surface area. This results in a smaller overall solar panel, which is ideal for applications where space is limited. These solar cells are also the best choice for applications in warmer climates, as they operate well even in high ambient temperatures.

If you plan to use this solar panel to charge a 12V battery or battery bank, please note that it requires a solar charge controller/regulator. This panel is covered by a 1-year workmanship warranty provided by Photonic Universe, and the solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase.

Regarding installation, this solar panel is not supplied with an installation manual as it needs to be connected to further devices such as a solar charge controller or inverter, which are supplied with a manual. If you are planning to use this panel to charge a 12V battery, we recommend purchasing one of our solar charge controllers. All of our solar charge controllers include an instruction manual with detailed installation instructions and wiring diagrams. If you need help with installation or have any technical questions, we can provide FREE support - please contact us by email or phone.

Solar Panel Specifications:

- Peak power: 50W

- Maximum power voltage: 20.2V

- Maximum power current: 2.48A

- Open circuit voltage: 23.9V

- Short circuit current: 2.63A

- Power allowance range: +/- 3%

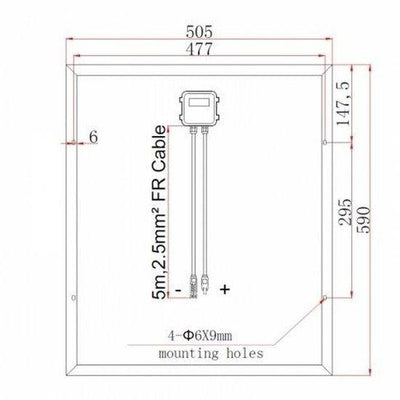

- Dimensions: 590 x 505 x 25mm

- Weight: 4.2 kg

- 4 mounting holes

- 2 x 5m of high-quality single-core solar cable 2.5mm cross-section

- Male and female MC4 connectors attached

50W 12V solar panel with 5m cable
