Product Details

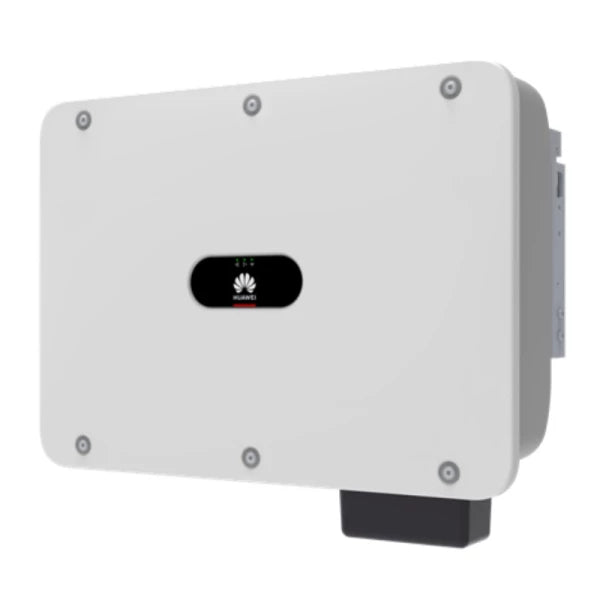

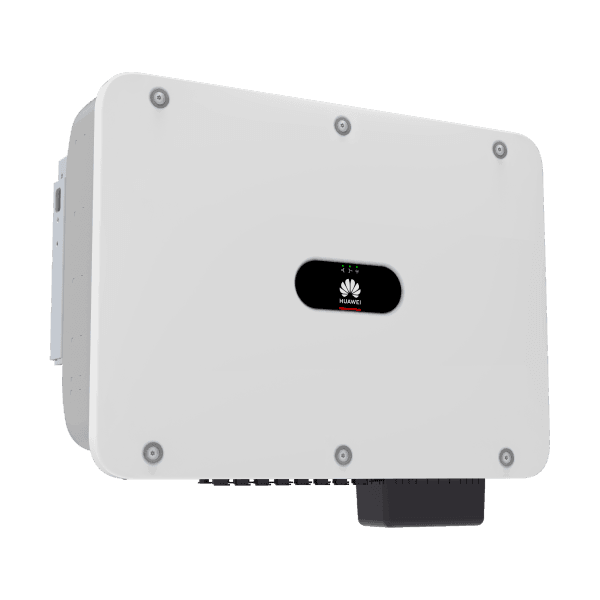

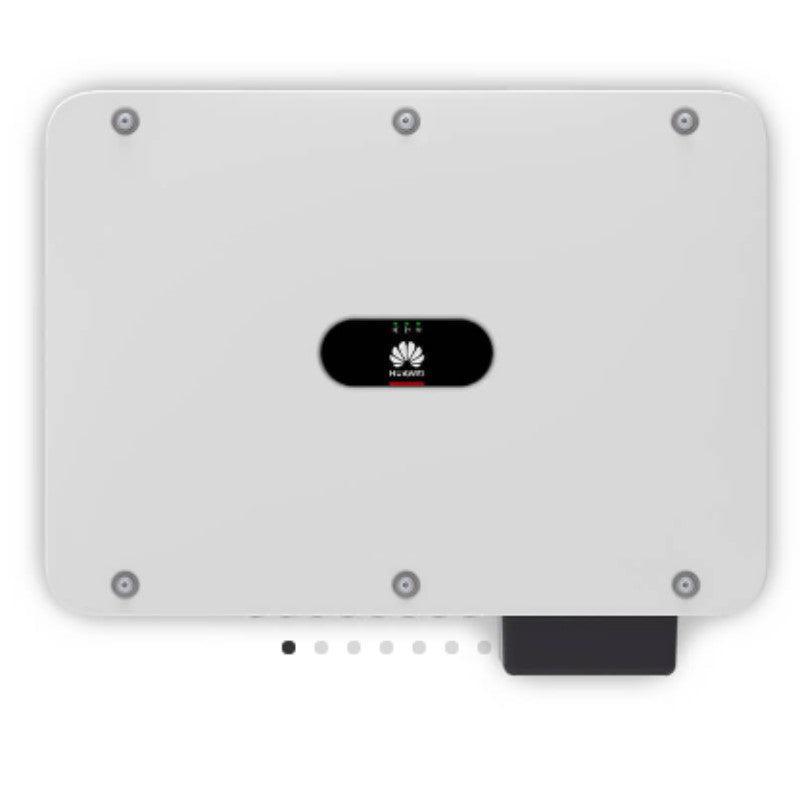

The SUN2000 36 kW 3-phase string inverter by Huawei is a high efficiency, high reliability option in the three phase string inverter market. It has a peak efficiency of 98.7% and a EU efficiency of 98.4%, meaning it maintains a high efficiency over its entire loading range. The 36KTL also has built in type II surge arresters for DC and AC, as well as a safe fuse free design that reduces maintenance requirements. Lastly, the 36KTL has 4 built in MPPT trackers to allow greater flexibility in string layout and ensures more can be got out of any array. AC attributes
Max power: 36kW
Max current: 58.0A
Number of phases: 3
DC attributes
Number of MPPT 4
V range of MPPT 200 - 1000V
Max Isc current 40A
Max voltage 1000V
Start up voltage 200V
System
Max efficiency 98.7%
IP rating IP66
Built in protection Type II AC/DC surge arresters, reverse polarity
Export limitations With smartlogger
Weight 43kg
Dimensions 640x530x270mm
Communication RS485 (WLAN, 4G optional)
Warranty (extensions) 5 years
Key features
8 strings intelligent monitoring
Max efficiency of 98.7%
Indoor or outdoor installation
Reliable - Type II surge arresters for AC and DC
Reliable - Type II surge arresters for AC and DC
