The SUN2000 40 kW 3 phase string inverter by Huawei is a high efficiency, high reliability option in the three phase string inverter market. It has a peak efficiency of 98.7% and a EU efficiency of 98.4%, meaning its maintains a high efficiency over its entire loading range. The 40KTL also has built in type II surge arresters for DC and AC as well as a safe fuse free design that reduces maintenance requirements. Lastly the 40KTL has 4 built in MPPT trackers to allow greater flexibility in string layout and ensures more can be got out of any array.

Max power: 40kW

Max current: 63.8A

Number of phases: 3

DC attributes

Number of MPPT 4

V range of MPPT 200 - 1000V

Max Isc current 40A

Max voltage 1000V

Start up voltage 200V

System

Max efficiency 98.7%

IP rating IP66

Built in protection Type II AC/DC surge arresters, reverse polarity

Export limitations With smartlogger

Weight 43kg

Dimensions 640x530x270mm

Communication RS485 (WLAN, 4G optional)

Warranty (extensions) 5 years

Key features

8 strings intelligent monitoring

Max efficiency of 98.7%

Indoor or outdoor installation
Reliable - Type II surge arresters for AC and DC

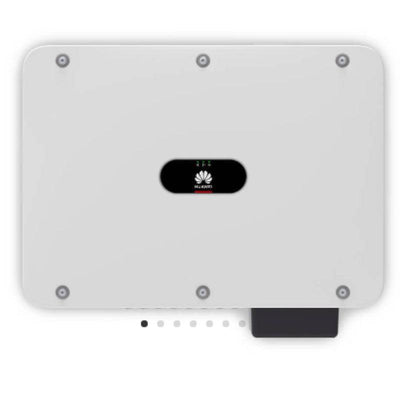

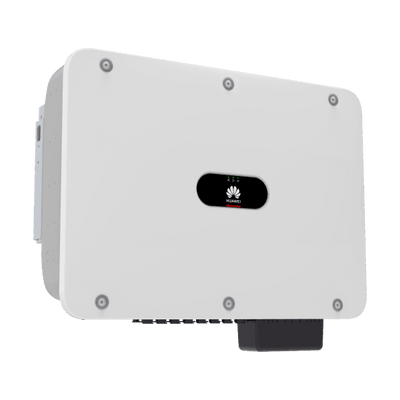

Huawei SUN2000 40KTL Three Phase Inverter M3
