Product Details

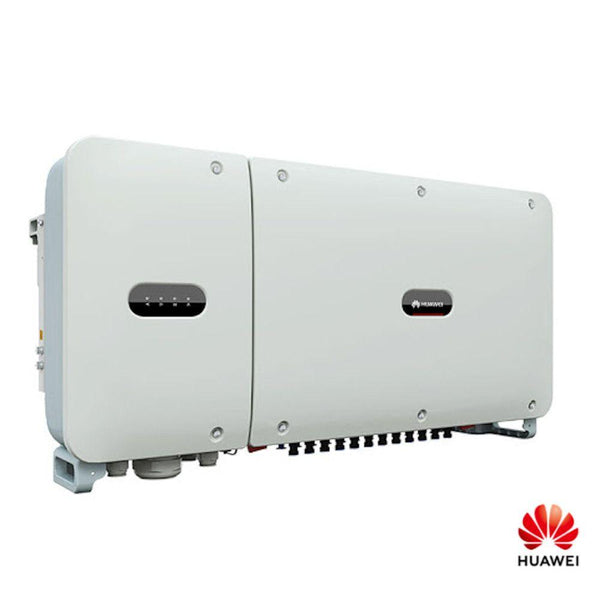

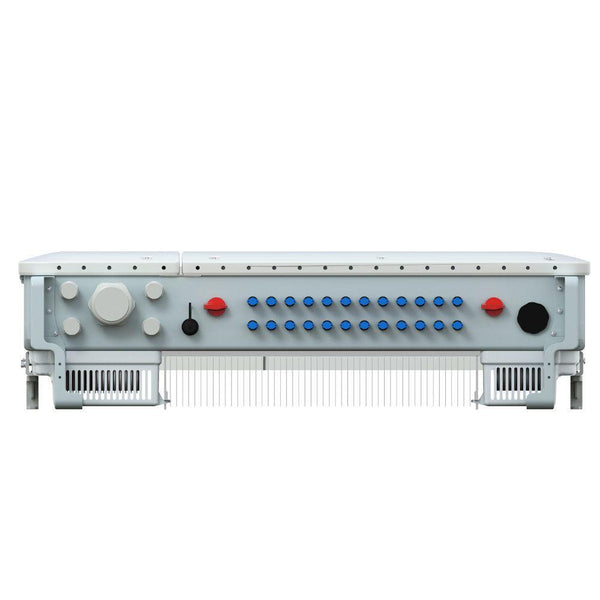

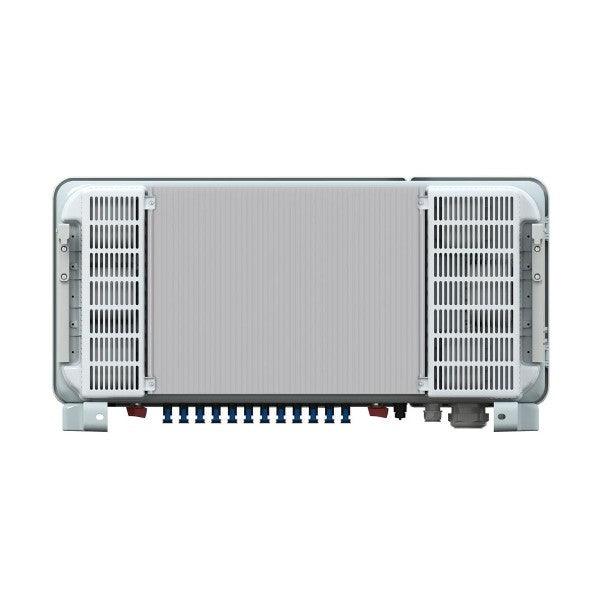

The SUN2000 60 kW 3 phase string inverter by Huawei is a high efficiency, high reliability option in the three phase string inverter market. It has a peak efficiency of 98.9% and a EU efficiency of 98.7%, meaning it maintains a high efficiency over its entire loading range. The 60KTL also has built in type II surge arresters for DC and AC, as well as a safe fuse free design that reduces maintenance requirements. Lastly, the 60KTL has 6 built in MPPT trackers to allow greater flexibility in string layout and ensures more can be got out of any array.
AC attributes
Max power: 60000W
Max current: 100A
Number of phases: 3
DC attributes
Number of MPPT 6
V range of MPPT 200 - 1000V
Max input current 22A
Max voltage 1080V
Start up voltage 200V
System
Max efficiency 98.7%
IP rating IP65
Built in protection Type II AC/DC surge arresters, reverse polarity
Export limitations With smartlogger
Weight 74kg
Dimensions 1075x555x300mm
Communication RS485, MBUS, USB
Warranty (extensions) 5 years
Key features
12 strings intelligent monitoring
Max efficiency of 98.7%
Indoor or outdoor installation
Reliable - Type II surge arresters for AC and DC
Reliable - Type II surge arresters for AC and DC
