Product Details

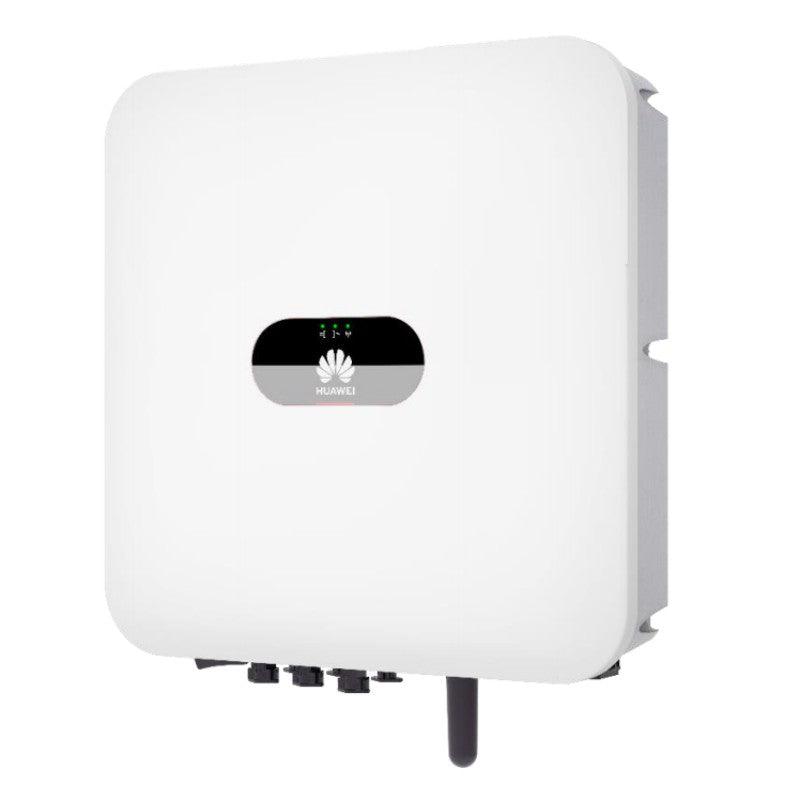

The Smart Energy Controller (SUN2000- 3 / 3.68 / 5 / 6KTL-L1) is Huawei new single-Phase inverter and is direct compatible with their own Huawei Luna battery.
AC attributes
Max power 3000W
Max current 15A
Number of phases 1
DC attributes
Panels:
Number of MPPT 2
V range of MPPT 90 - 560V
Max power 500W
Max current 18A
Max voltage 600V
Start up voltage 100V
Batteries:
Max power 5 kW*
Max current 14.2A
Battery types Lithium
Battery capacity 50 - 2000Ah
System
Max efficiency 98.3%
IP rating IP65
Built in protection** AC and DC surge protection Type II, arc fault
Export limitations Possible using CT or meter
Weight 27kg
Dimensions 365x365x156mm
Communication RS485, WLAN, (Ethernet, 4G optional)
Warranty (extensions) 10 years
Key features
AI Self leaning new arc detection
Real-time data at anytime and anywhere
Performance data back-up
Smart I-V Diagnosis
*This is the maximum output of the batteries but output power varies with number of batteries installed, a single battery will only output 2.5kW.
** for full list of protections see datasheet.
