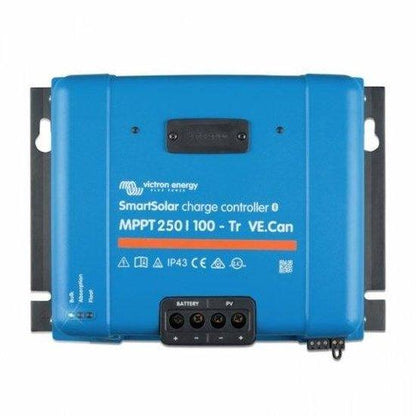

Victron SmartSolar MPPT 250/100 100A solar charge controller Bluetooth inbuilt
Victron SmartSolar MPPT 250/100 100A solar charge controller Bluetooth inbuilt
SKU:VSSM250-100
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

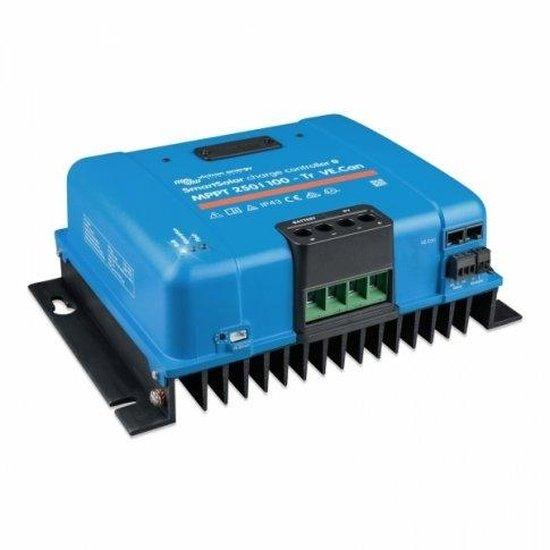

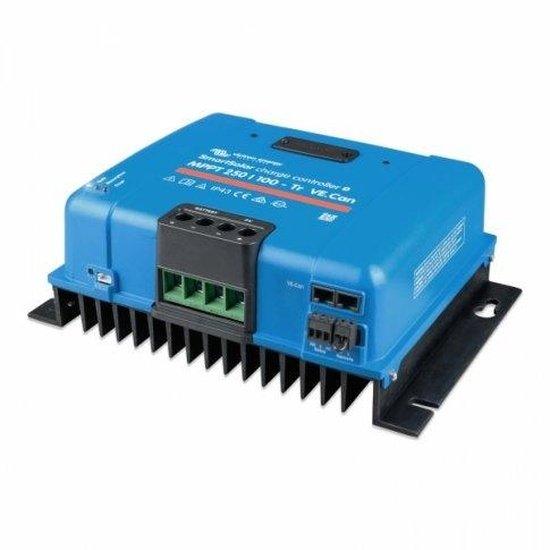

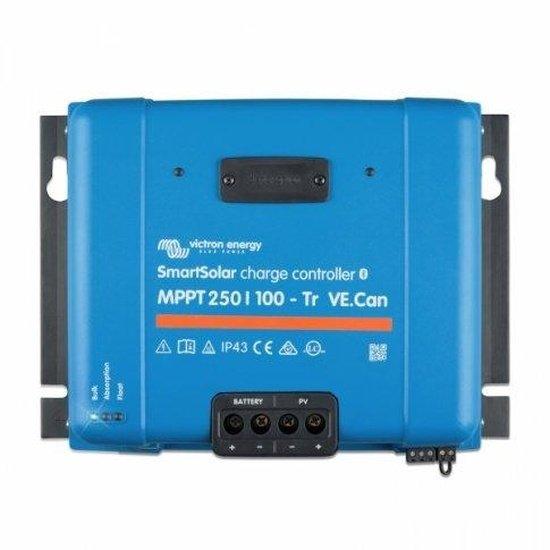

Victron SmartSolar MPPT 250/100 100A Solar Charge Controller
Ultrafast MPPT Technology | 250V PV Input | Integrated Bluetooth
The Victron SmartSolar MPPT 250/100 is a high-performance 100A solar charge controller designed for efficient energy harvesting from solar panels in various off-grid, marine, RV, and backup power systems. This advanced MPPT controller from Victron Energy maximises solar yield by continuously tracking the maximum power point of your solar array, even under challenging conditions like partial shading or fluctuating light intensity.
Featuring an impressive 250V maximum PV input voltage, the SmartSolar 250/100 can handle substantial solar arrays, automatically adapting to 12V, 24V, or 48V battery banks, with 36V selectable via software. Its integrated Bluetooth connectivity allows for convenient remote monitoring and configuration via the VictronConnect App on a smartphone, tablet, or computer, providing real-time data and historical performance logs.
KEY ADVANTAGE: Ultrafast MPPT technology boosts energy harvest by up to 30% compared to PWM controllers and 10% over slower MPPT models.
Key Features
| ▶ Ultrafast MPPT Tracking — Maximises energy harvest from solar panels in all conditions. |
| ▶ Integrated Bluetooth Smart — Enables wireless monitoring and configuration via the VictronConnect App. |
| ▶ Flexible Battery Compatibility — Supports 12V, 24V, 36V, and 48V battery systems, including Lithium, AGM, and Gel. |
| ▶ High PV Input Voltage — Accepts up to 250V PV open circuit voltage, suitable for larger solar arrays. |
| ▶ VE.Can & VE.Direct Ports — Allows for multi-controller synchronisation and integration with Victron GX devices. |
| ▶ Programmable Relay — Offers versatile control for external devices or alarms based on system events. |
| ▶ Optional LCD Display Support — Connect a plug-in display for direct monitoring and settings adjustment. |
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Voltage | 12 / 24 / 48V Auto Select (36V Manual) |
| Rated Charge Current | 100A |
| Max. PV Open Circuit Voltage | 250V |
| Max. PV Power (12V) | 1450W |
| Max. PV Power (24V) | 2900W |
| Max. PV Power (48V) | 5800W |
| Max. Efficiency | >98% |
| Self-consumption (12V / 48V) | <35mA / <20mA |
| Operating Temperature | -30°C to +60°C |
| Enclosure Protection | IP43 (electronics) / IP22 (connections) |
| Dimensions (H x W x D) | 216 x 295 x 103 mm |
| Weight | 4.5 kg |
Charging & Battery Modes
The Victron SmartSolar MPPT 250/100 offers a comprehensive and adaptable charging solution for various battery types, ensuring optimal performance and longevity.
| Feature | Description |
|---|---|
| Adaptive Multistage Charging | Intelligently optimises charge stages (bulk, absorption, float) to suit battery condition and extend battery life. |
| User-Defined Algorithms | Customise absorption voltage, time, float voltage, equalisation, and temperature compensation via VictronConnect. |
| BatteryLife Algorithm | Monitors battery state and intelligently adjusts load disconnect levels to ensure regular full charges, preventing sulfation. |
| Temperature Compensation | Internal temperature sensor automatically adjusts charge voltages for optimal battery health in varying climates. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Systems | Ideal for cabins, remote homes, and standalone power setups requiring reliable solar charging. |
| Marine & RV Installations | Robust design and wide temperature range suit demanding mobile and marine environments. |
| Backup Power Systems | Ensures batteries are optimally charged and ready for use during grid outages. |
| Larger Solar Installations | High current and voltage capacity, plus VE.Can for scalability, makes it suitable for extensive systems. |
Built-In Protection Functions
The Victron SmartSolar MPPT 250/100 is equipped with comprehensive electronic protection features to ensure system safety and reliability. These include: PV short circuit protection • PV reverse polarity protection • PV reverse current protection • Battery overvoltage protection • Battery reverse polarity protection (via internal fuse) • Over-temperature protection with power derating • Self-diagnostic capability with fault indication.
Common Questions
What is MPPT technology and why is it important?
MPPT (Maximum Power Point Tracking) technology ensures your solar panels operate at their peak efficiency by continuously adjusting to the optimal voltage and current. This results in up to 30% more energy harvest compared to older PWM controllers, especially beneficial in variable weather conditions.
Can I monitor this controller remotely?
Yes, the SmartSolar MPPT 250/100 has built-in Bluetooth. You can use the free VictronConnect App on your smartphone, tablet, or computer to monitor real-time data, view historical logs, and configure settings wirelessly.
Is this controller compatible with lithium batteries?
Yes, the Victron SmartSolar MPPT 250/100 is compatible with a wide range of battery types, including Lithium, AGM, Gel, and Tubular plate batteries. Its charging algorithm is fully programmable to match specific battery chemistry requirements.
What is the purpose of the VE.Can and VE.Direct ports?
The VE.Can port allows for daisy-chaining multiple SmartSolar controllers for synchronised charging and integration with Victron GX monitoring devices. The VE.Direct port provides connectivity for single-unit monitoring or other VE.Direct accessories.
Installation Notes
- Ensure adequate ventilation around the controller to prevent overheating, especially under full load.
- Always connect the battery first, then the solar panels, and disconnect in reverse order.
- Use appropriately sized cables for PV and battery connections to minimise voltage drop and ensure safety.
- Refer to the detailed user manual for specific wiring diagrams and installation instructions.
- Consider professional installation for complex systems or if unsure about electrical wiring.
Before You Buy
- Verify your total solar panel array voltage (Voc) does not exceed the controller's 250V limit.
- Confirm your battery bank voltage (12V, 24V, 36V, or 48V) matches the controller's auto-detection or manual setting.
- Calculate your maximum solar panel power to ensure it falls within the controller's specified limits for your battery voltage.
- Consider any additional Victron accessories, such as a GX device or external display, for enhanced monitoring.
- Ensure the physical dimensions and mounting requirements are suitable for your intended installation location.
Always verify product specifications and compatibility with your existing system components before purchase. This Victron SmartSolar MPPT 250/100 controller is covered by a 5-year manufacturer's warranty.
