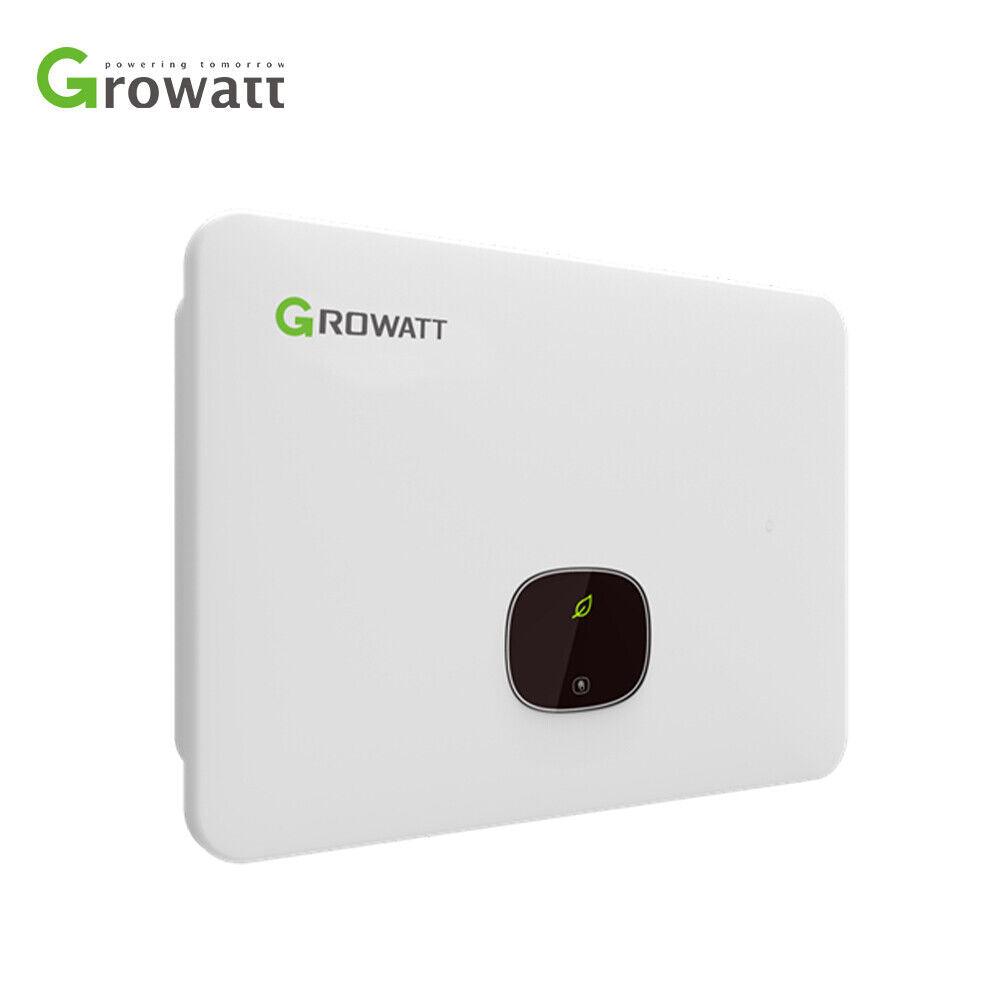

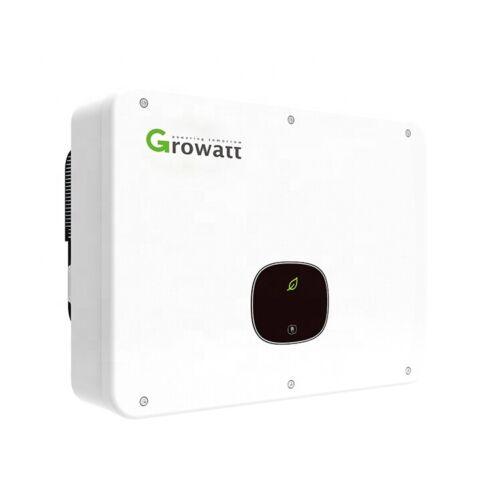

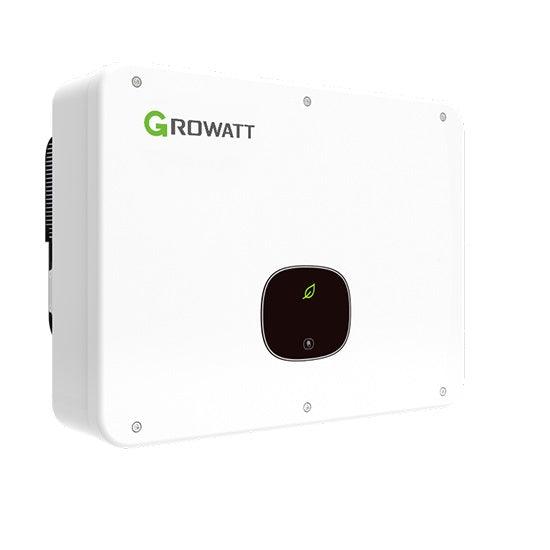

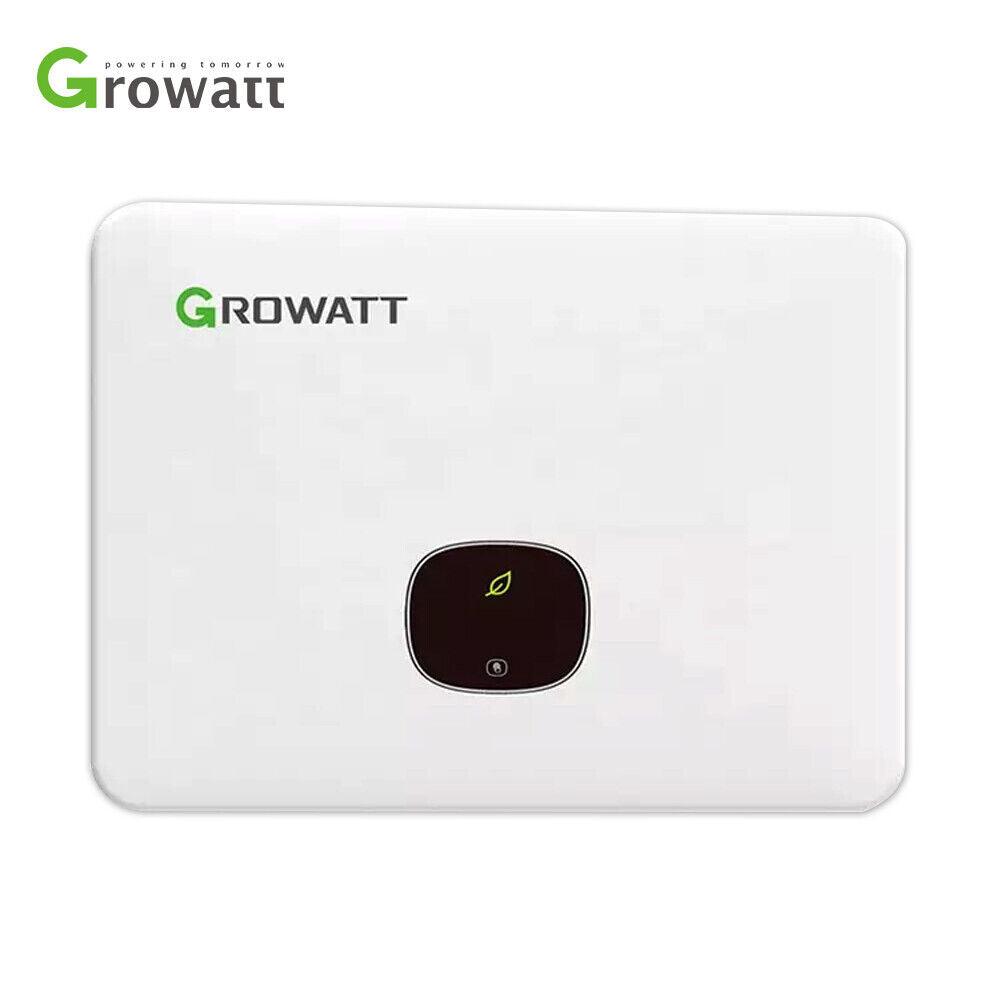

Growatt MID 33 KTL3-X Three Phase Inverter (3x MPPT)

Regular price £1,999.00 Sale

per
Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU: MID KTL3-33

  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping

  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

    • The new Growatt X range of 3-phase inverters is 40% lighter and more compact then the previous model, which combined with a new, sleeker design makes the KTL3-X range a good choice for 3-phase projects.

      The new OLED screen makes settings changes on the unit itself easier then ever.

      Note: These products are not compatible with the standard Shinelink or Shinevision monitoring options and require the Shinelink-X for monitoring.

      Now comes with a 10 year warranty as standard.

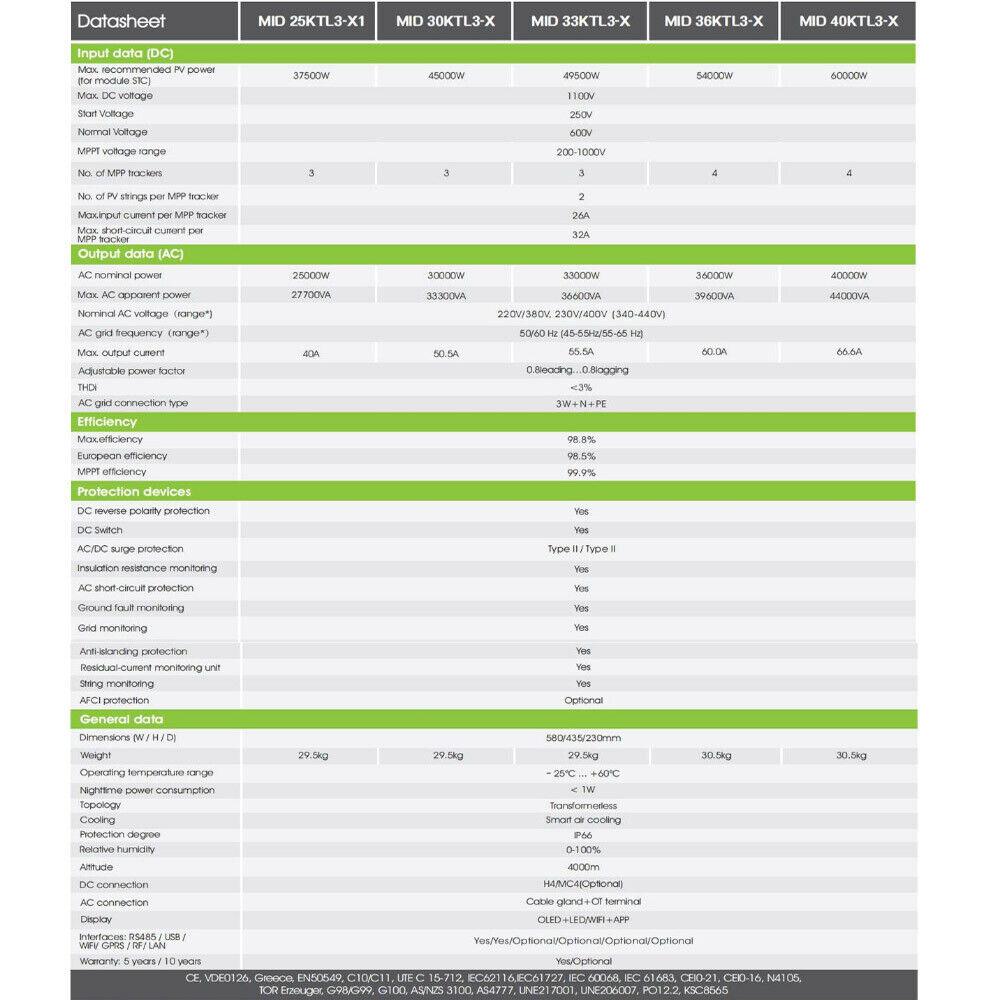

      AC attributes
      Max power: 33000W
      Max current: 55.5A
      Number of phases: 3

      DC attributes
      Number of MPPT 3
      Strings per MPPT 2
      V range of MPPT 200 - 1000V
      Max power 49500W
      Max Isc current 32A
      Max voltage 1100V
      Start up voltage 250V

      System
      Max efficiency 98.8%
      IP rating IP65
      Built in protection AC/DC Type II SPD
      Export limitations With meter
      Weight 29.5kg
      Dimensions
      580x435x230mm
      Communication
      USB, RS485 (wifi, GPRS, 4G, optional)
      Warranty (extensions)
      10 years
      Key features

      Compact design
      Easy-to-use OLED display
      Flexible communication options
