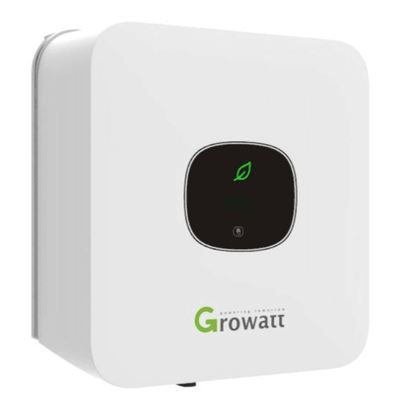

GROWATT 750TL X Single MPPT
#1: GROWATT-750-TL-X Inverters - Main Units
#2: Growatt MIC 750 TL-X single phase inverter (no DC)

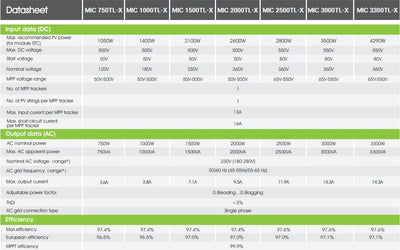

GROWATT 750TL X Data Sheet

GROWATT 750TL X Manual

GROWATT 750TL X Warranty

GROWATT 750TL X Quick Guide

GROWATT 750TL X G98 Certificate

*Collections are not permitted due to health & safety regulations*

Rating: 750W
Phases: 1

Growatt inverters are designed specifically for residential rooftop applications. With a maximum efficiency of 97.6% and a wide input voltage range, this robust inverter is perfect for residential installations. The TL-X range has a single MPPT.

The Growatt inverter range has the following leading-edge technology.

- MPPT tracking accuracy of 99%
- Max. Efficiency 97.6%, European Efficiency 96.5%
- Transformerless design, offer lighter and more convenient installation
- Power factor continuously adjustable
- Flexible interface
- Touch key & OLED display

UK only: This inverter has been tested and certified according to G98, but only for units having most recent Firmware and Hardware version. Please check if the unit you are purchasing meets that criteria and if in doubt, please update the inverter firmware.

Weight: 6 kg
Rated Power: 750 W
Min PPT Voltage: 50 V
Max PPT Voltage: 500 V
DC Startup Voltage: 50 V
DC Shutdown Voltage: 50 V
Max Input Voltage: 500 V
Max DC Power: 1,050 W
Max AC Power (5 Minutes): 750 W
Surge AC Power (1 Second): 750 W
Max DC Current: 13 A
Max DC Inputs: 1
Has DC Fuses: 0
Connector: Amphenol H4
Included Connectors: 1
Euro Efficiency: 96.5 %
Transformer: None
MPPT Quantity : 1
Has Integrated DC Switch: No
Warranty: 10 years

GROWATT 750TL X Single MPPT Grid tie solar inverter - 10 yr warranty £181 + vat
