Product Details

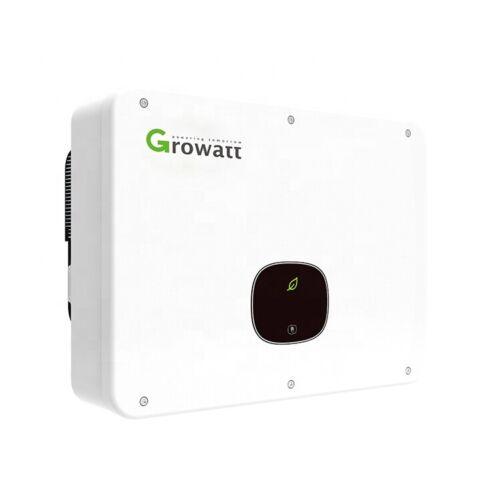

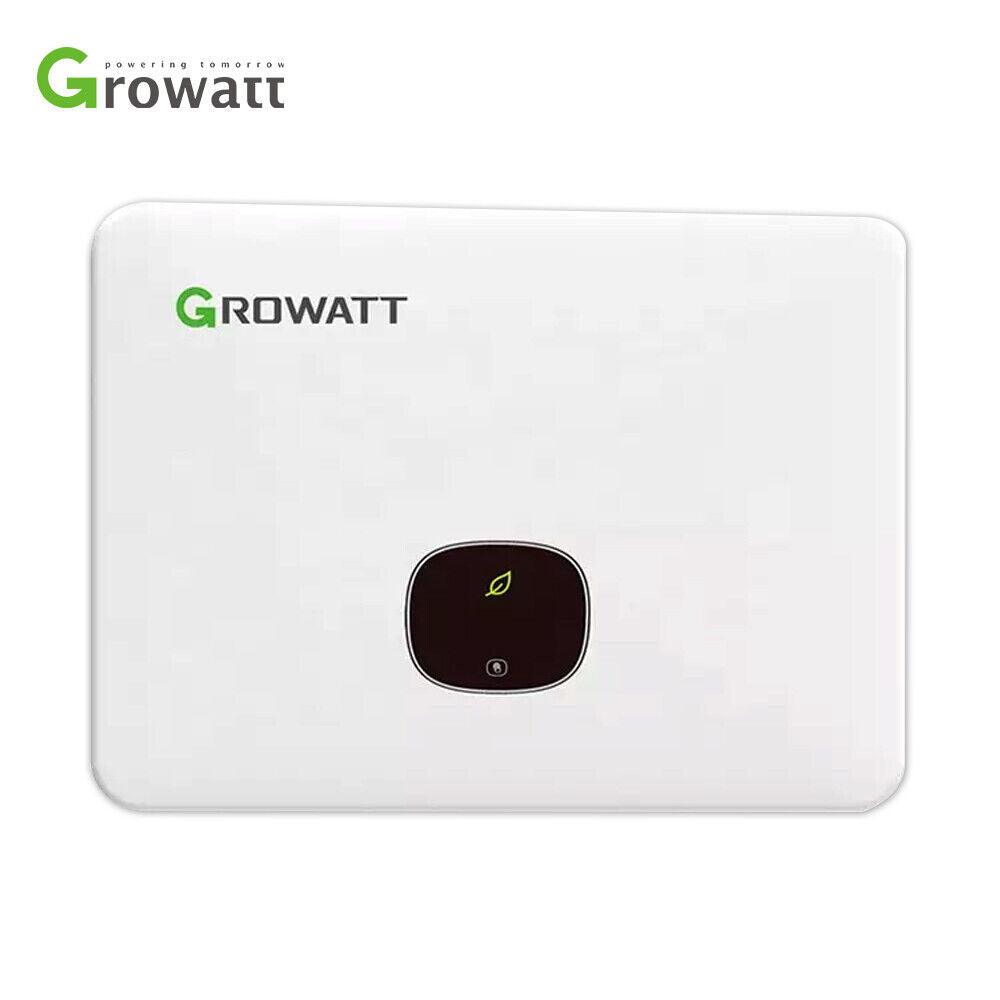

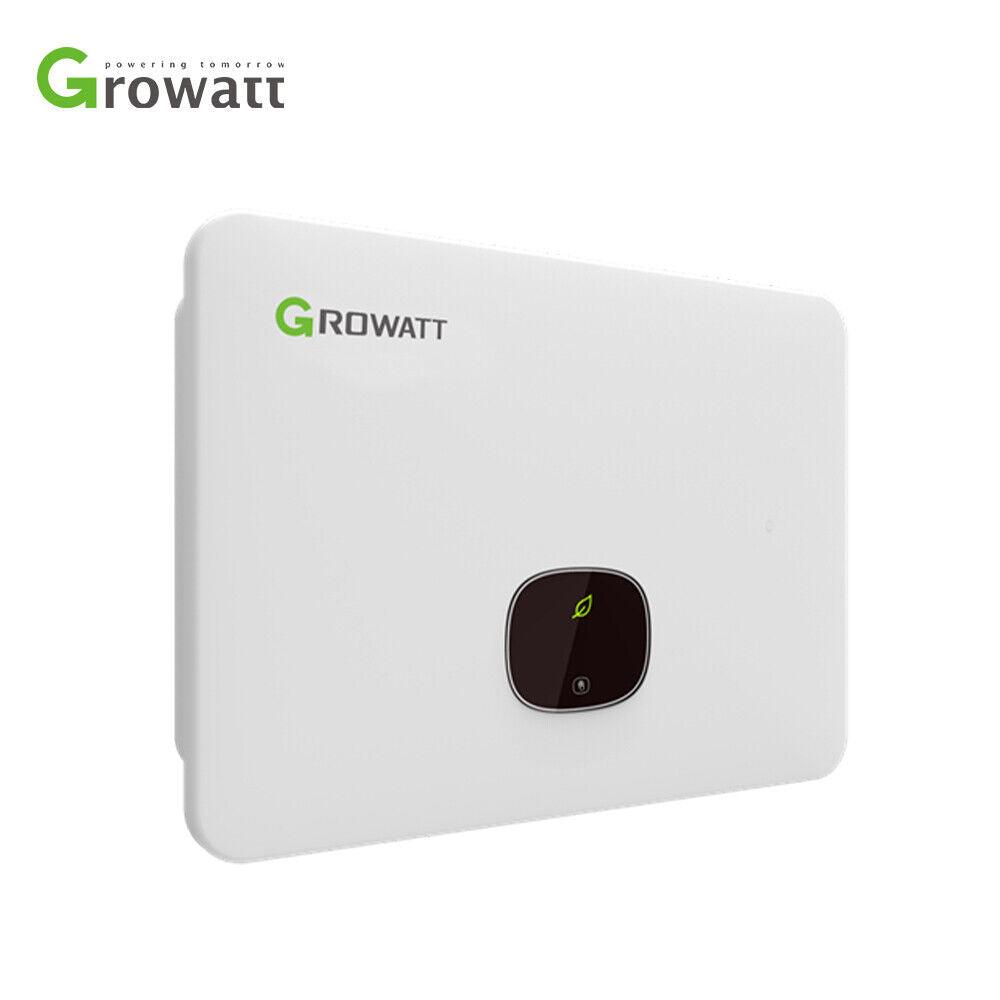

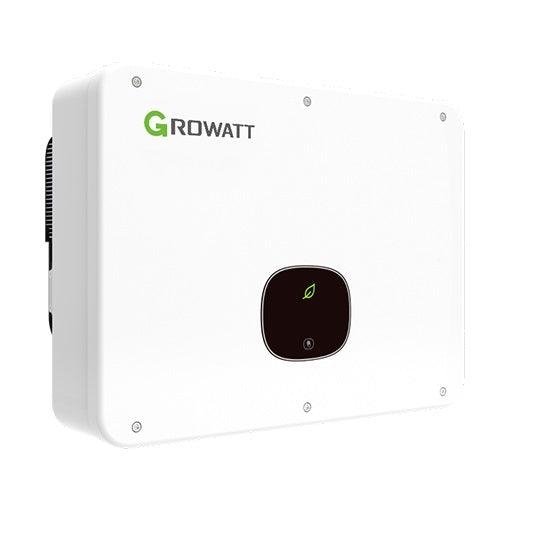

The new Growatt X range of 3-phase inverters is 40% lighter and more compact then the previous model, which combined with a new, sleeker design makes the KTL3-X range a good choice for 3-phase projects.

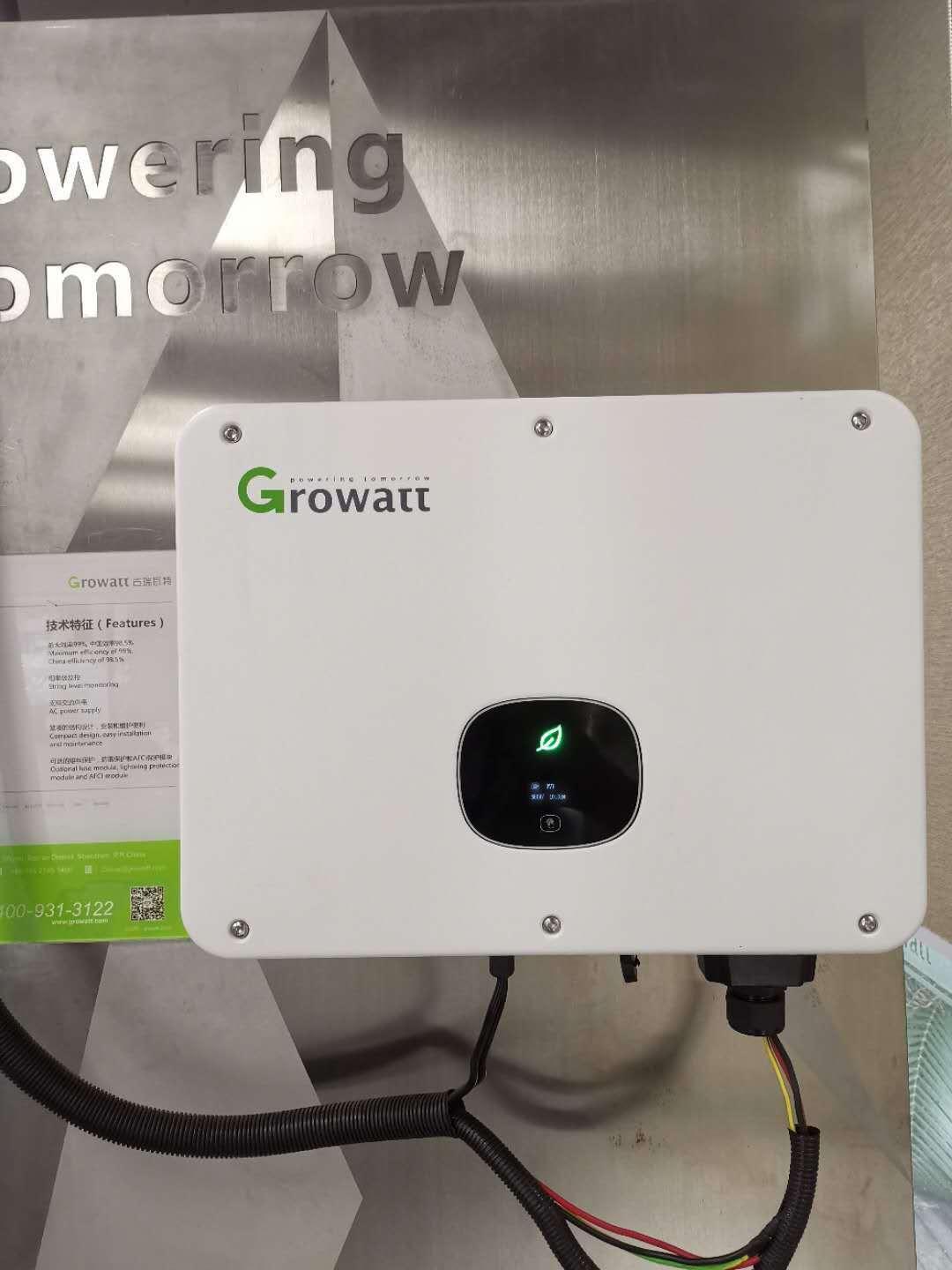

The new OLED screen makes settings changes on the unit itself easier then ever.
Note: These products are not compatible with the standard Shinelink or Shinevision monitoring options and require the Shinelink-X for monitoring.Now comes with a 10 year warranty as standard.

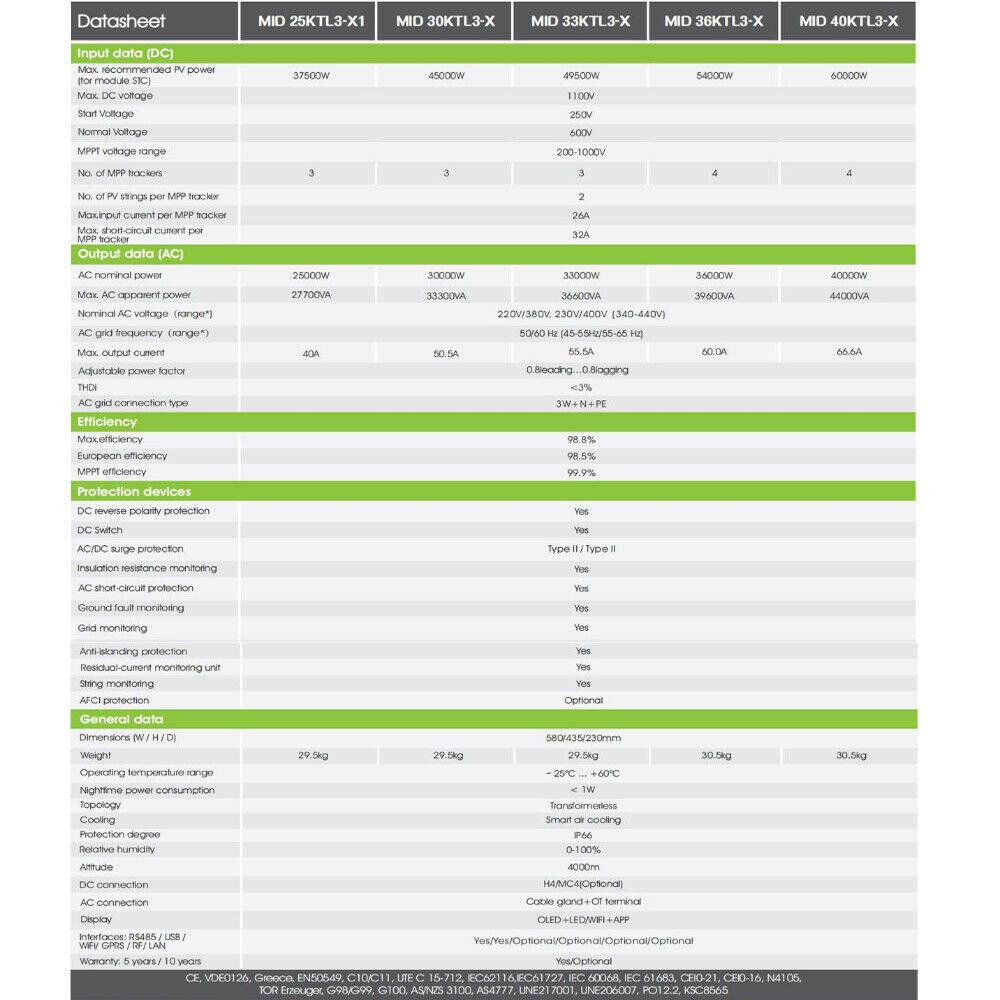

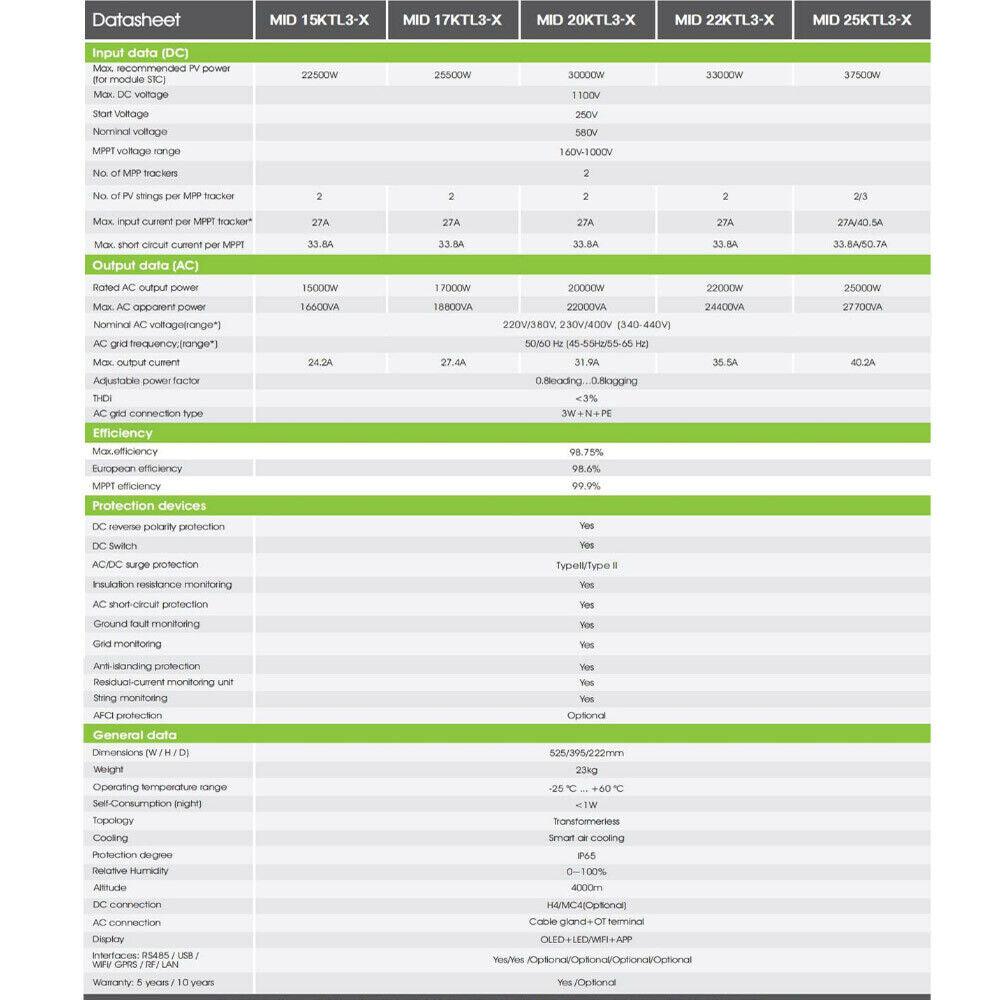

AC attributes
Max power: 25000W
Max current: 40.2A
Number of phases: 3
DC attributes
Number of MPPT 2
Strings per MPPT 3
Strings per MPPT 3
V range of MPPT 200 - 1000V
Max power 32500W
Max Isc current 32A
Max voltage 1100V
Start up voltage 250V
System
Max efficiency 98.6%
IP rating IP65
Built in protection AC/DC Type II SPD
Export limitations With meter
Weight 23kg
Dimensions
525x395x222mm
Communication
USB, RS485 (wifi, GPRS, 4G, optional)
Warranty (extensions)
10 years
Key features
Compact design
Easy-to-use OLED display
Easy-to-use OLED display
Flexible communication options
