RELIABILITY: Fully waterproof and encased in a corrosion-resistant aluminium frame, designed for harsh marine and off-grid environments.

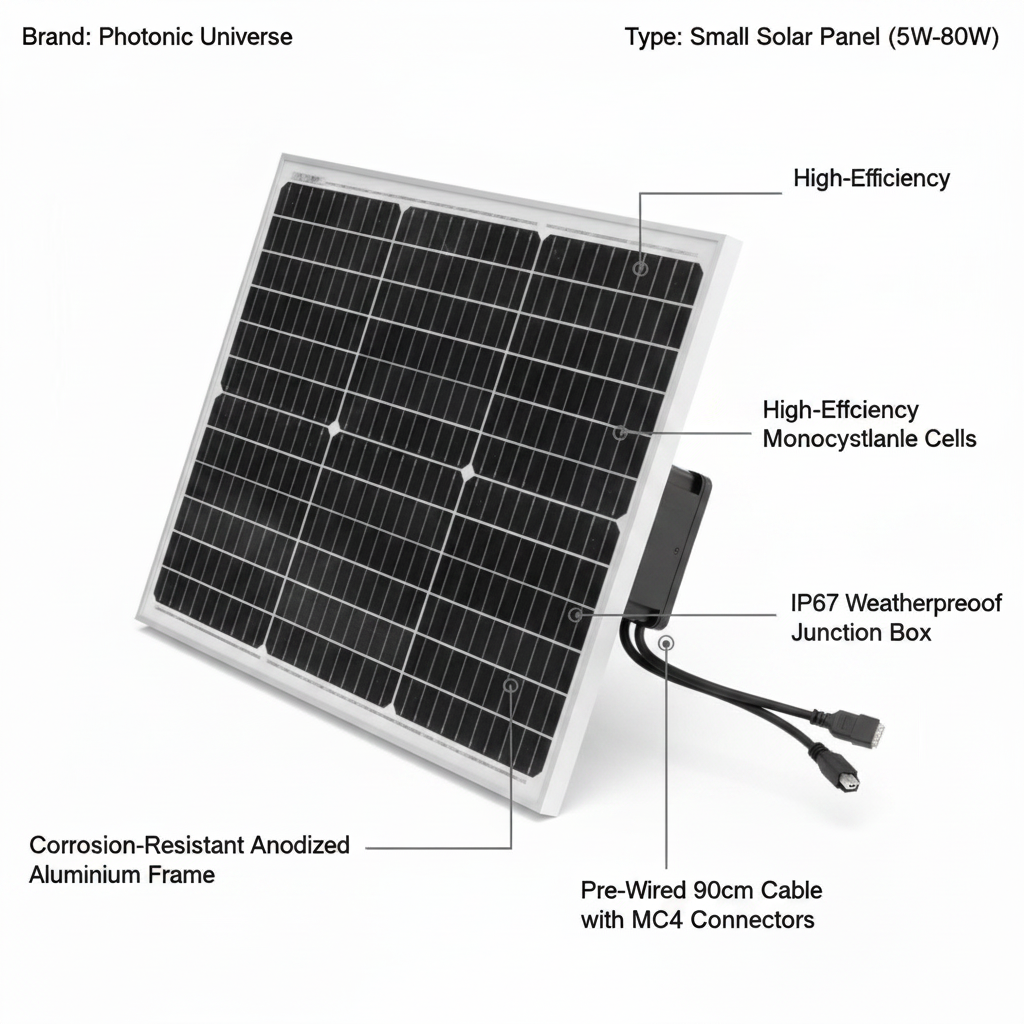

Key Features

• ✔ 5-Busbar Technology: Superior efficiency in low-light conditions.
• ✔ Pre-Wired: Includes 2 x 0.9m of 2.5mm² solar cable with MC4 connectors.
• ✔ Rigid Construction: Anodized aluminium frame for long-term durability.

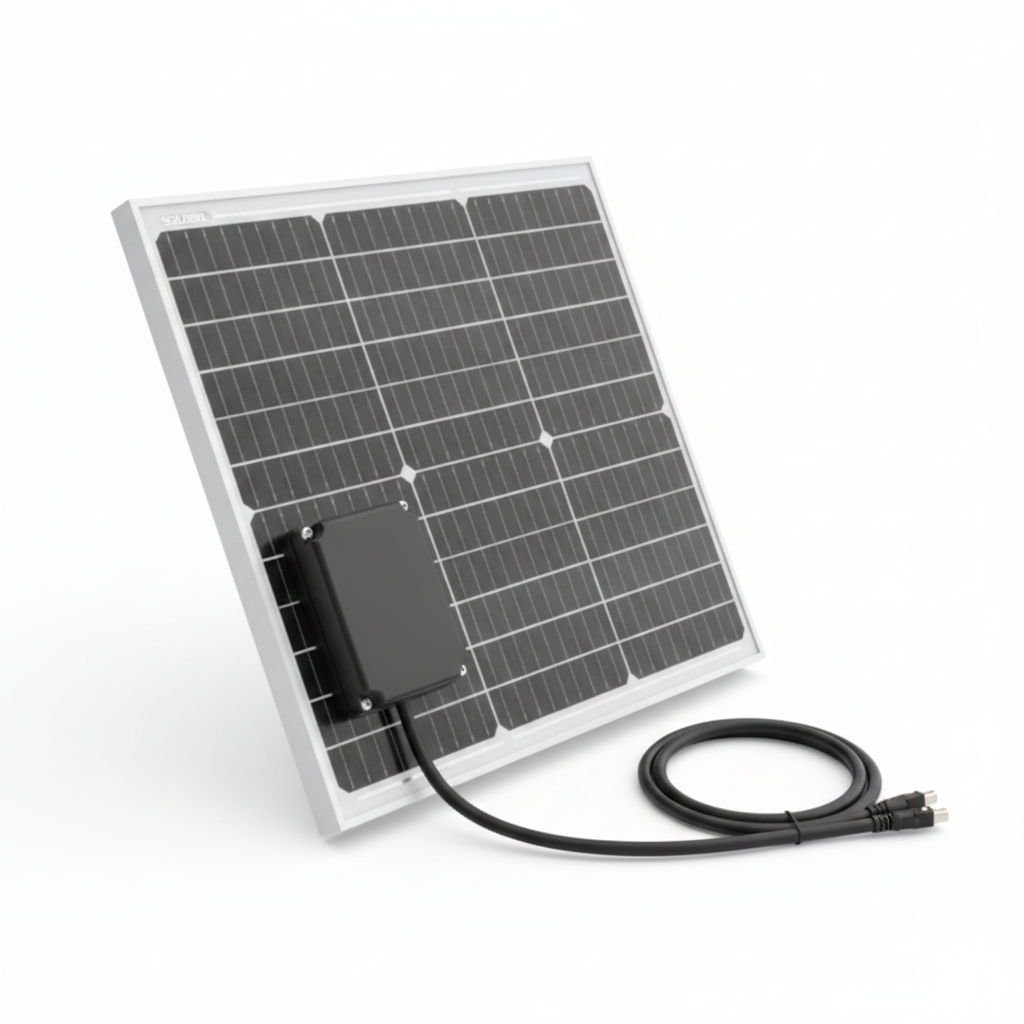

• ✔ Weatherproof: IP65/IP67 rated junction box for total rain protection.

Technical Specs

Peak Power (Pmax)	50W
Max Power Voltage (Vmp)	20.41V
Max Power Current (Imp)	2.45A
Open Circuit Voltage (Voc)	24.57V
Short Circuit Current (Isc)	2.61A

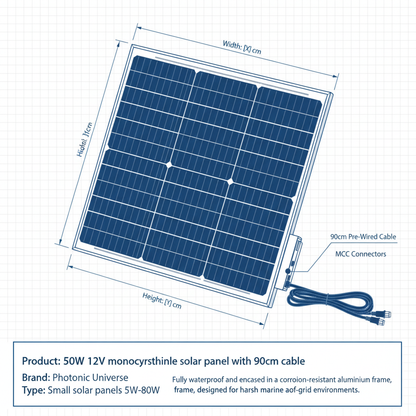

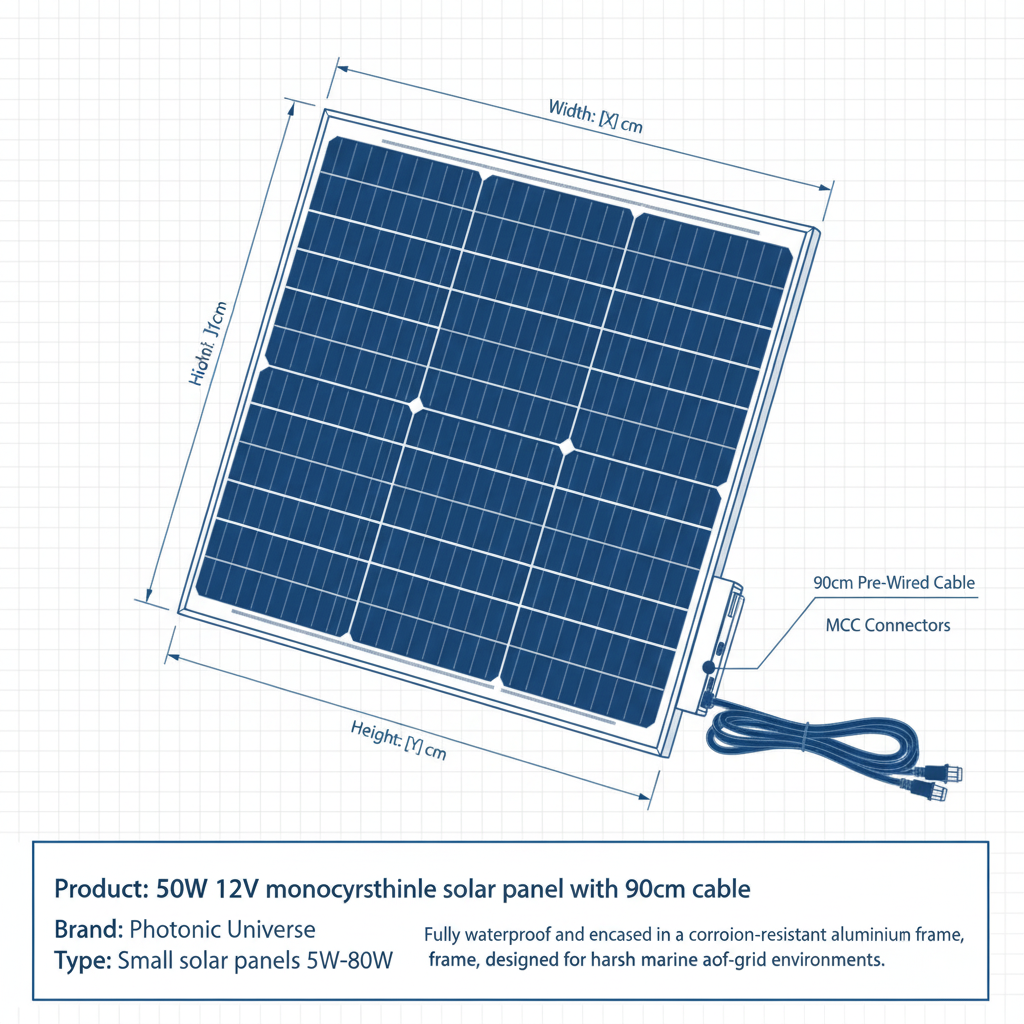

Dimensions	580 x 510 x 25 mm
Weight	3.2 kg

Application Type	System Compatibility	Notes
Leisure Vehicles	Campervans, Motorhomes, Caravans	Ideal for 12V battery maintenance.
Marine	Boats, Yachts, Narrowboats	Saltwater resistant frame.
Remote Sites	CCTV, Monitoring, Sheds, Farms	High performance in UK overcast weather.

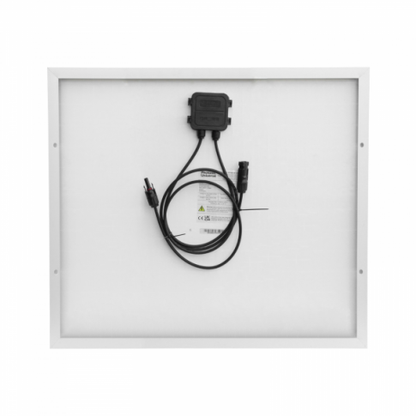

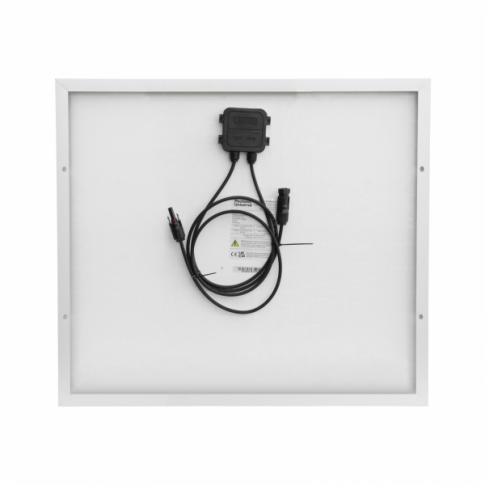

This panel is fitted with 0.9m of solar cable terminated with MC4-compatible connectors. Note: This panel must be connected to a suitable solar charge controller (PWM or MPPT) and should not be connected directly to a battery to avoid overcharging.

Is this a genuine original part?

This is a premium Solarika branded monocrystalline panel, manufactured to the same specifications as the SWG-50M SKU for high-performance off-grid use.

How do I know if it is compatible?

If you are replacing a 50W rigid panel with similar dimensions (approx. 580x510mm), this is a direct replacement. It is compatible with all 12V lead-acid, AGM, and Gel battery systems via a charge controller.

Can this panel be used to charge 24V batteries?

As a single 12V nominal panel, it is designed for 12V systems. However, two of these SWG-50M panels can be wired in series to charge a 24V battery bank using a standard charge controller.
