400W 12V Wind Turbine WTJ400-12 5 Blades
400W 12V Wind Turbine WTJ400-12 5 Blades
SKU:WTJ400-12
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
400W 12V Wind Turbine with 5 Blades
High-Efficiency Off-Grid Power | Model WTJ400-12
The Photonic Universe 400W 12V Wind Turbine (WTJ400-12) is a robust and efficient solution for off-grid power generation. Designed with five durable nylon fibre blades, this turbine is engineered to capture wind energy effectively, even at low wind speeds, making it suitable for a wide range of UK applications. It provides a reliable source of renewable energy for charging 12V battery banks.
This wind turbine comes complete with an external MPPT charge controller, ensuring optimal power transfer to your batteries and providing essential system protection. Its sturdy die-cast aluminium alloy body is built to withstand challenging outdoor conditions, offering long-term performance for homes, cabins, boats, and remote installations.
KEY BENEFIT: Reliable Power Generation — Designed for consistent performance in varying wind conditions.
Key Features
| ▶ 400W 12V Output — Ideal for charging 12V battery banks in off-grid systems. |
| ▶ Five Durable Nylon Fibre Blades — Optimised for efficient wind energy capture and low noise. |
| ▶ Low Start-Up Wind Speed (2.5 m/s) — Begins generating power sooner for increased daily output. |
| ▶ Integrated MPPT Charge Controller — Maximises power transfer to your batteries and provides protection. |
| ▶ Robust Die-Cast Aluminium Body — Ensures longevity and resistance to harsh outdoor environments. |
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Power | 400W |
| Rated Voltage | 12V DC |
| Start-up Wind Speed | 2.5 m/s |
| Rated Wind Speed | 12 m/s |
| Survival Wind Speed | 45 m/s |
| Number of Blades | 5 |
| Blade Material | Nylon Fibre |
| Generator Type | 3-Phase AC Permanent Magnet |
| Controller Type | External MPPT Wind Charge Controller (Included) |
| Rotation Diameter | 1.2m |
| Body Material | Die-casting Aluminium Alloy |
| Mounting Method | Pole Mount (Pole not included) |
| Approx. Weight (Turbine) | 8.5 kg |
Operating & Power Guidance
| Aspect | Details |
|---|---|
| Wind Speed Range | Operates from 2.5 m/s (start-up) up to 45 m/s (survival). |
| Generator Output | Produces 3-phase AC power, converted to stable DC by the included controller. |
| Controller Function | MPPT technology for efficient charging, with over-charge and over-current protection. |
| Recommended Battery Voltage | Specifically designed for 12V DC battery banks. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Provides primary or supplementary power for lighting, small appliances, and charging. |
| Marine & RV Systems | Ideal for charging leisure batteries on boats, yachts, caravans, and motorhomes. |
| Remote Monitoring Stations | Powers surveillance cameras, weather stations, and communication equipment in isolated areas. |
| Agricultural Use | Suitable for powering remote pumps, lighting, or electric fences where grid power is unavailable. |
Built-In Protection Functions
The Photonic Universe 400W 12V Wind Turbine system incorporates multiple protection features via its included MPPT charge controller to ensure safe and reliable operation. These include: Over-speed protection • Over-voltage protection • Over-current protection • Battery over-charge protection • Automatic braking system.
Common Questions
What is included with the Photonic Universe 400W 12V Wind Turbine?

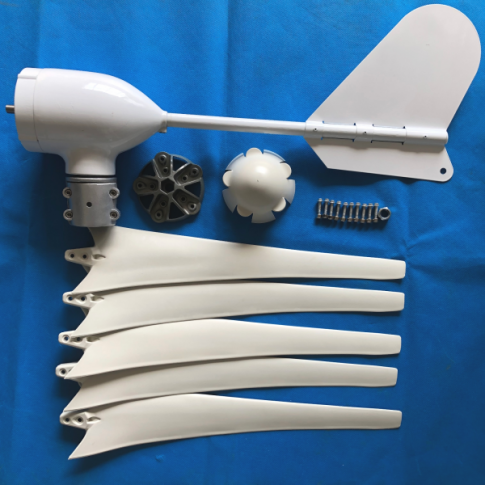

The package typically includes the wind turbine body, five nylon fibre blades, a nose cone, an external MPPT wind charge controller, and basic mounting hardware for attaching to a pole. A user manual is also supplied.
What kind of pole is required for mounting?
A sturdy mounting pole is required, typically with a diameter of 48mm to 60mm. The pole itself is not included with the turbine and must be sourced separately to suit your specific installation needs and local wind conditions.
Can this turbine charge 24V batteries?
No, this specific WTJ400-12 model is designed and rated for 12V DC systems only. Attempting to connect it to a 24V battery bank may result in improper charging or damage to the system. A dedicated 24V wind turbine model would be required for 24V battery systems.
How does the included MPPT charge controller function?
The MPPT (Maximum Power Point Tracking) charge controller optimises the power output from the wind turbine, converting the variable AC output into a stable DC current for efficient charging of your 12V battery bank. It also provides essential safety features like over-charge protection for the batteries.
Installation Notes
- Ensure the mounting pole is securely installed and capable of withstanding local wind loads.
- Connect the turbine's output to the included MPPT charge controller according to the manual's instructions.
- Connect the charge controller to your 12V battery bank, observing correct polarity.
- All wiring should be of appropriate gauge for the current and length of run to minimise voltage drop.
- For safety and optimal performance, professional installation is recommended.
Before You Buy
- Verify that your existing system or intended application is compatible with a 12V DC power source.
- Assess your local wind conditions to ensure the turbine will operate effectively in your chosen location.
- Plan for a suitable, sturdy mounting pole and a clear, unobstructed area for the turbine's rotation.
- Confirm you have a compatible 12V battery bank for energy storage.
- Review the product manual for detailed installation and safety guidelines.
Please verify all specifications and system compatibility before purchase. Photonic Universe products are designed for reliable performance.
