PERFORMANCE: Engineered with high-grade monocrystalline cells and a robust aluminium frame for reliable performance in all weather conditions.

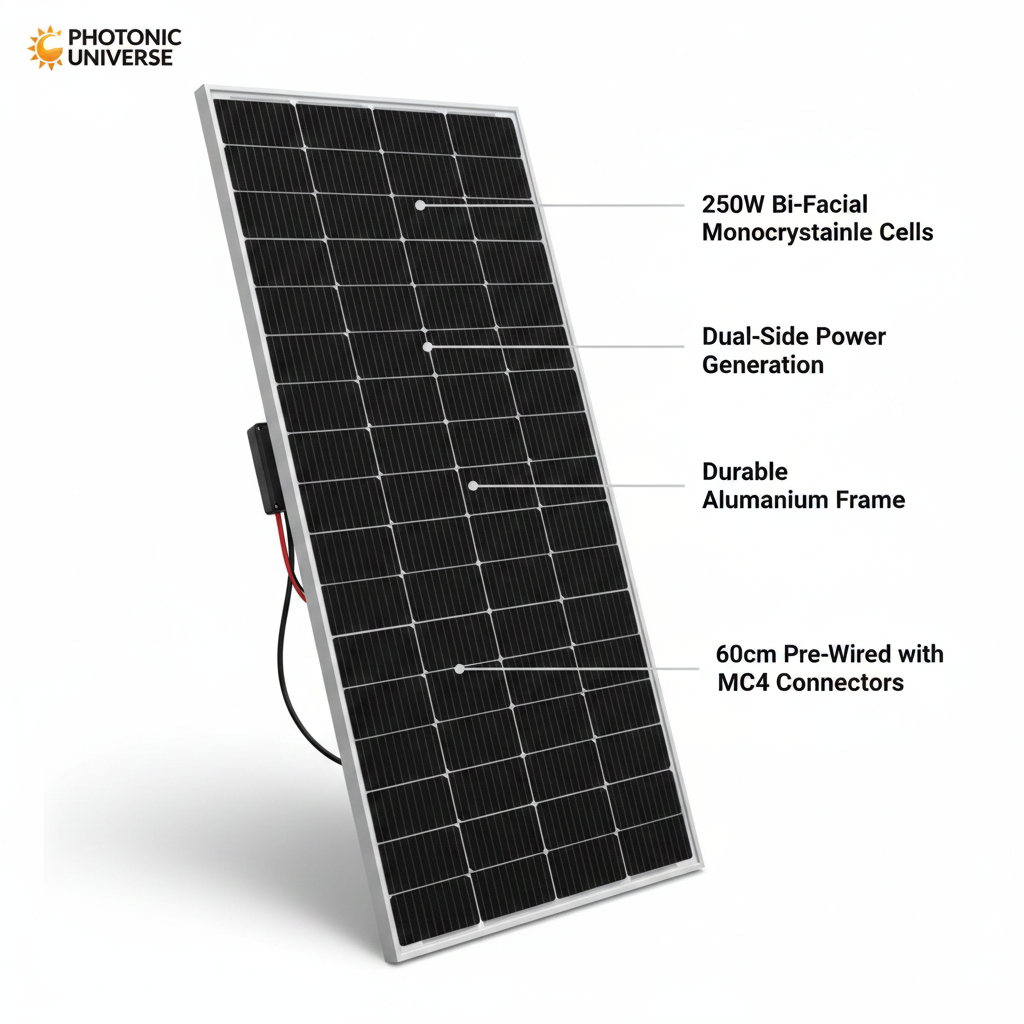

Key Features

• ✔ Bi-Facial Technology: Dual-side power generation.
• ✔ High Efficiency: Premium monocrystalline cells.
• ✔ Weatherproof: IP68 rated junction box.
• ✔ Pre-Wired: 2 x 60cm cables with MC4 connectors.
• ✔ Durability: Corrosion-resistant aluminium frame.

Technical Specs

Peak Power (Pmax)	250W
Max Power Voltage (Vmp)	39.02V
Max Power Current (Imp)	6.41A
Open Circuit Voltage (Voc)	45.45V
Short Circuit Current (Isc)	6.82A
Dimensions	1630 x 770 x 35 mm
Weight	13.5 kg

System Type	Application	Notes
12V Battery Systems	Camper Vans, Marine	Requires MPPT Charge Controller
24V Battery Systems	Off-Grid Cabins, Solar Kits	Compatible with PWM or MPPT
Direct Drive	Water Pumps, Motors	Suitable for non-sensitive loads

Mount the panel using the 4 integrated mounting holes. For bi-facial benefits, ensure the panel is elevated at an angle on a light-coloured surface (such as a white roof or light gravel) to allow reflected light to reach the rear cells. Use an MPPT controller for maximum efficiency when charging 12V batteries.

Is this a genuine original part?

This is a premium quality Solarika product, manufactured to meet or exceed original equipment standards for Photonic Universe SWB-250M compatibility.

How do I know if it is compatible?

If your system requires a 250W panel with a voltage of ~39V (Vmp) or you are replacing an existing SWB-250M unit, this is a direct replacement.

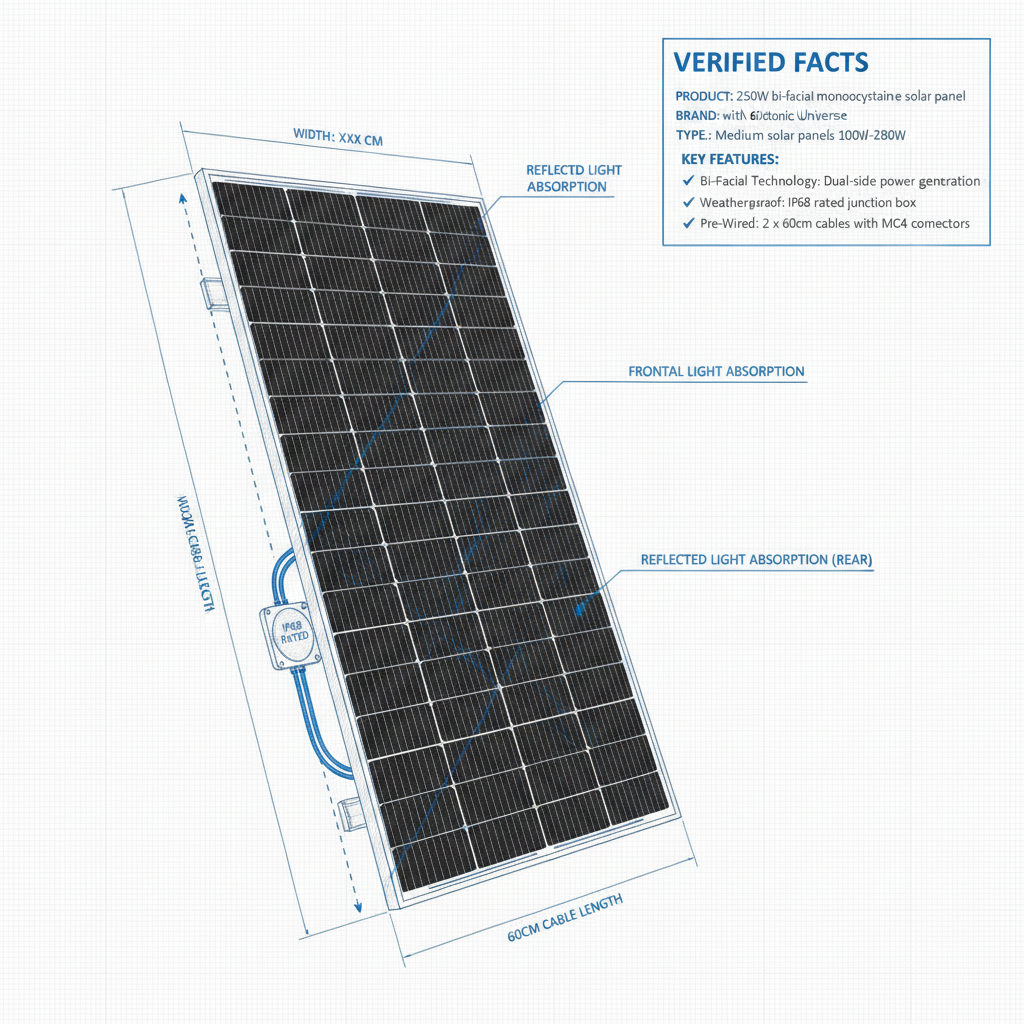

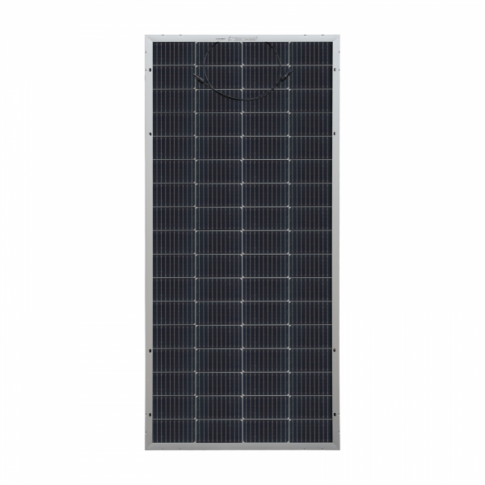

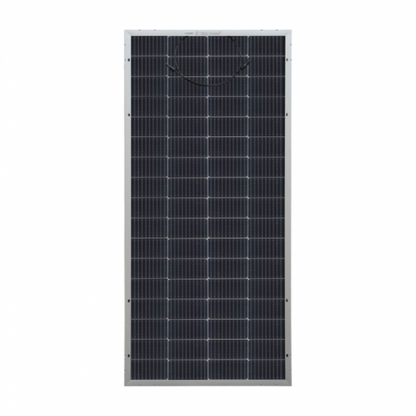

What is the benefit of a Bi-Facial panel?

A bi-facial panel generates power from both sides. While the front captures direct sunlight, the rear captures ambient reflected light, potentially providing up to 20% more power than a standard mono panel of the same size.
