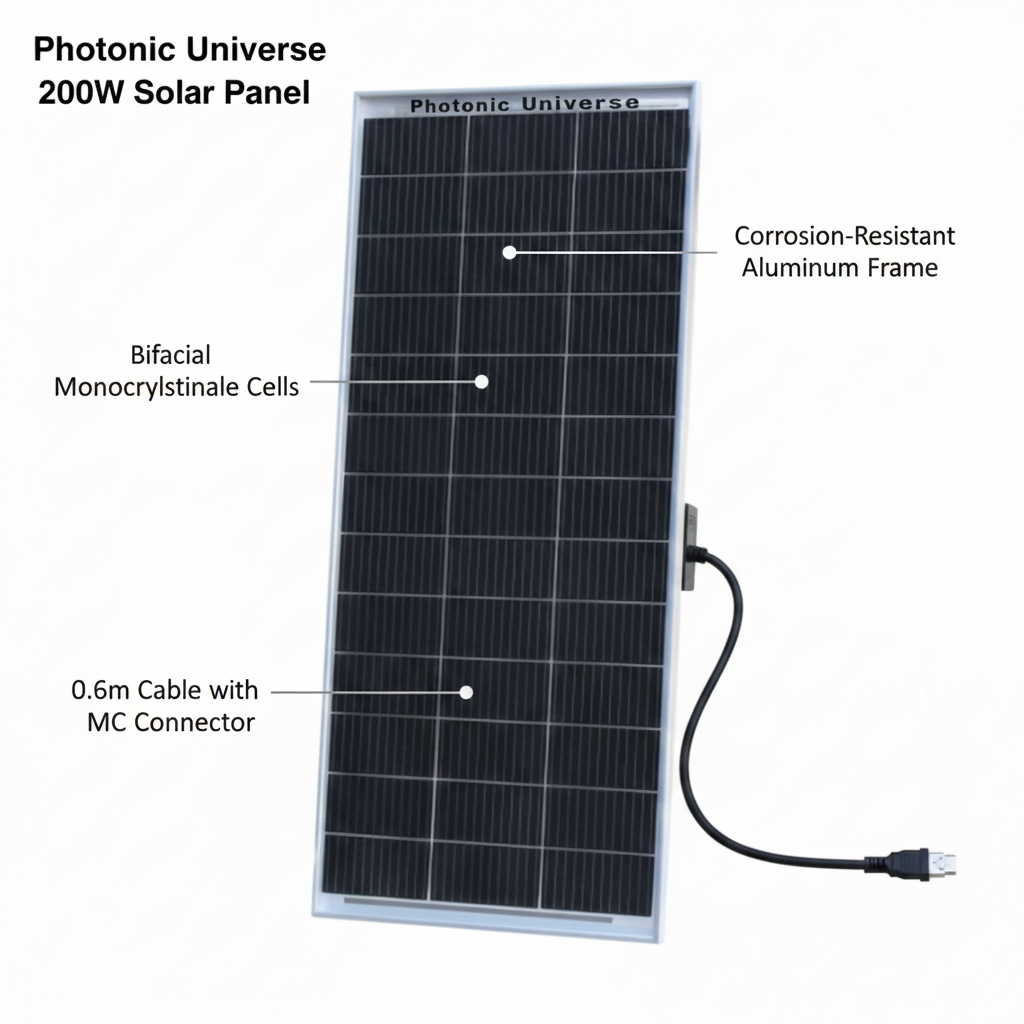

RELIABILITY: Built with a corrosion-resistant aluminum frame and toughened glass to meet or exceed OEM standards for marine and extreme outdoor use.

Key Features

• ✔ Bifacial Gain: Increases output by utilizing reflected light.
• ✔ Monocrystalline Cells: Superior efficiency in low-light conditions.
• ✔ Weatherproof: IP65/IP67 rated for permanent outdoor use.
• ✔ Plug & Play: Includes 0.6m cables with MC4 connectors.

Technical Specs

Peak Power (Pmax)	200W
Max Power Voltage (Vmp)	22.45V
Max Power Current (Imp)	8.91A
Open Circuit Voltage (Voc)	26.29V
Short Circuit Current (Isc)	9.41A
Dimensions	1480 x 670 x 30 mm
Weight	10.5 kg

System Type	Application	Notes
12V Battery Systems	Leisure/Marine	Requires MPPT controller for optimal charging.
Off-Grid Solar	Cabins / Sheds	Compatible with standard Z-brackets or tilt mounts.
Vehicle Mounting	RV / Motorhome	Bifacial gain is best achieved when mounted with space beneath.

Connect the solar panel to a suitable charge controller before attaching to your battery bank. Do not exceed the maximum input voltage of your controller. Ensure mounting allows for airflow beneath the panel to maximize bifacial performance.

Is this a genuine original part?

This is a premium quality replacement panel manufactured to exacting industry standards by Solarika, matching the specifications of the SWB-200M reference.

How do I know if it is compatible?

Verify the dimensions (1480x670mm) and electrical output (200W). If your existing system uses MC4 connectors and supports up to 26V Voc, this is a perfect fit.

What are the benefits of Bifacial technology?

Bifacial panels have cells on both sides. When mounted on light-colored surfaces or tilted away from a roof, they capture "albedo" (reflected light) from behind, providing extra power compared to standard one-sided panels.
