RELIABILITY: Built with tempered "Low-Iron" solar glass and a heavy-duty anodized aluminum frame to withstand wind loads up to 2400Pa and snow loads up to 5400Pa.

Key Features

• ✔ High Efficiency Cells: Grade-A Monocrystalline cells for superior conversion.

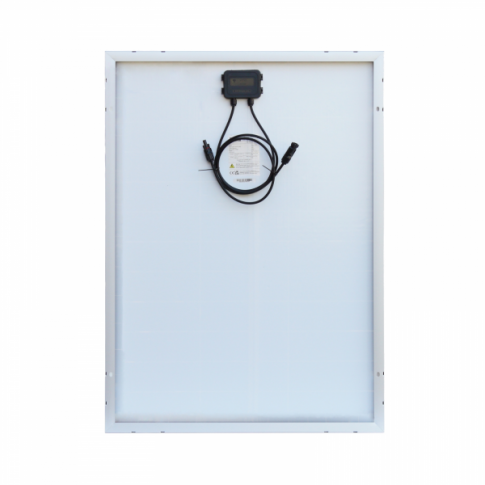

• ✔ All-Weather Design: IP67 waterproof junction box with built-in bypass diodes.
• ✔ Plug & Play: Pre-fitted with 900mm cables and standard MC4 connectors.
• ✔ Durable Build: Corrosion-resistant frame for extended outdoor use in marine environments.

Technical Specs

Max Power (Pmax)	120 Watts
Voltage at Pmax (Vmp)	18.0 V
Current at Pmax (Imp)	6.67 A
Open Circuit Voltage (Voc)	22.5 V
Short Circuit Current (Isc)	7.20 A
Dimensions	970 x 670 x 30 mm
Weight	8.0 kg

Application Type	System Compatibility	Notes
Leisure Batteries	12V Lead-Acid, AGM, Gel, LiFePO4	Requires PWM or MPPT controller.
Mobile Off-Grid	Caravans, Motorhomes, Campers	Fits standard Z-bracket mounts.
Marine	Boats, Yachts, Narrowboats	Corrosion-resistant for saltwater air.

1. Securely mount the panel using Z-brackets or a dedicated mounting rail system.
2. Connect the panel MC4 connectors to your solar charge controller (never connect directly to a battery without a controller).
3. Ensure appropriate fuse protection (10A-15A recommended) between the controller and the battery bank.

Is this a rigid or flexible panel?

The SWG-120M is a rigid, aluminum-framed panel. This design offers superior durability and heat dissipation compared to flexible panels.

How do I know if it is compatible?

This panel is a "Standard 12V" module (18Vmp). It is compatible with all standard 12V battery types when used with a solar regulator/charge controller.

Does it work in the shade?

While all panels perform best in direct sun, the SWG-120M includes bypass diodes within the junction box to minimize the power drop caused by partial shading.
