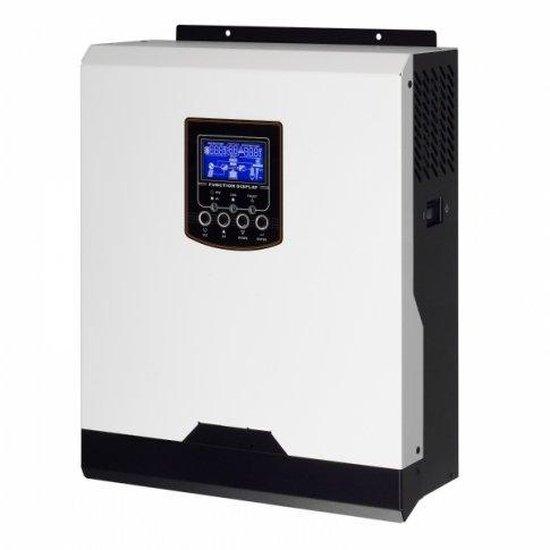

Iconica 3000W 24V hybrid pure sine wave inverter with 40A MPPT solar controller and 25A mains charger

The Iconica 3000W 24V hybrid inverter combines the functions of a 3000W pure sine wave inverter, 40A MPPT solar charge controller, and a 25A smart battery charger in one single portable unit. This model can accept input from solar panels, mains power/generator, and a battery, either from a single source or in combination. In addition to its unique hybrid capability, this innovative inverter features advanced communication functions and a menu full of highly customizable settings. It is the perfect solution for any off-grid application with limited or zero access to traditional mains power. This hybrid inverter features an Uninterrupted Power Supply (UPS), making it the ideal option for applications where the power supply is unreliable, intermittent, or expensive to maintain. This inverter is great for both stationary and mobile off-grid installations, such as remote properties, holiday homes, huts, cabins, narrowboats, yachts, as well as for customers looking to reduce their mains electricity usage and save on electricity bills. It could also be used as a backup system in locations suffering from frequent power cuts.

Key Functions:

1. 3000W 24V Pure Sine Wave Inverter: Converts DC current into 230V AC mains electricity to run various household appliances such as a TV, laptop, lighting, and fans. It is able to produce 3000VA of continuous power with a peak power handling capability of up to 6000VA, making it suitable for starting appliances with electric motors. This inverter is a pure sine wave type, which surpasses modified sine wave inverters in terms of efficiency and compatibility with a wider range of appliances.

2. Inbuilt 40A MPPT Solar Charge Controller: The high-efficiency MPPT controller regulates the input from the solar panels to the batteries or the load, with various safety functions, including protection against overcharge, overheating, and reverse current. The controller operates at up to 98% efficiency to extract the maximum power from the solar array.

3. Enhanced 25A Smart Battery Charger: Designed to enable safe and efficient unattended charging of a battery from a mains power source or generator, with full overcharge protection and multiple charging stages.

Additional Intelligent Features:

The Iconica 3000W 24V hybrid inverter includes various unique features, providing enhanced functionality over standard inverters, such as:

- Output Source Priority: This feature allows the user to set preferences for the AC load output of the inverter from solar/battery/mains input or a generator.

- Battery Charging Priority: Options are available for charging the battery using solar power only, a combination of solar power and mains power, or from mains power only.

- Customizable Settings: The parameters for this inverter can be personalized to a specific degree via the user-friendly interface. Users can customize parameters such as the AC input range, battery type, max charging current, specific high/low voltage disconnect points, preferred charging source upon reconnection, duration and voltage of each charging stage, auto-restart options, power saving mode, overload bypass, and battery equalization stage characteristics.

The inverter has several options for managing operational features like the audible alarm and backlight settings. It has an illuminated LCD screen that displays vital statistics, including status and mode, input/output voltage, frequency, battery voltage, load power and percentages, charge and discharge current, and more, which can be easily adjusted using the up/down keys.

It comes with a PC connection cable and PC software CD for easy access to important system information such as solar, battery, and AC voltage, charging current, battery capacity, etc. Detailed data logs can be viewed and exported to PDF/Excel formats. Additionally, the inverter can send data to an online user portal using a Wi-Fi connection kit, mobile app Wi-Fi kit, or 3G connection kit for remote system monitoring and exclusive features like email/push notification/SMS status updates for the inverter.

The inverter features an auto-restart function that disconnects load appliances during overload or overheating and automatically reconnects them once safe conditions are detected. It is equipped with an inbuilt fan to maintain an optimal operational temperature and uses intelligent cooling design to prevent overheating of the components.

This hybrid inverter is compatible with 24V flooded and sealed GEL/AGM lead-acid batteries with pre-defined charging programs. It also supports user-defined battery types with customizable settings for other lead-acid batteries.

Specifications:

- Nominal battery voltage: 24V

- Continuous power output: 3000W / 3000VA

- Surge power: 6000VA

- Output voltage: 230V AC

- Output frequency: 50Hz/60Hz

- Output waveform: Pure sine wave

- Maximum solar input power: 1000W

- Maximum open circuit solar input voltage: 102V

- Maximum solar charging current: 40A

- MPPT operating voltage range: 30V – 80V

- Maximum mains AC charging current: 25A

- Maximum combined charging current: 60A

- Peak efficiency: 93%

- Operating temperature: -10°C to 50°C

- Supplied with a PC connection cable and PC software CD

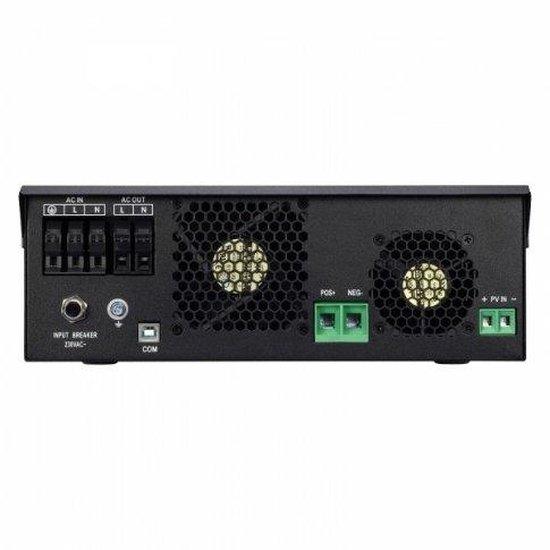

- Terminals for mains power connection

- Size: 32 x 22.5 x 8.8 cm

- Weight: 7 kg

The inverter comes with a 1-year manufacturer warranty. Due to the low noise emitted by the cooling fan(s), it may not be suitable for installation in locations that require absolute silence, such as bedrooms at night. A detailed user manual explaining wiring and operations is provided, and free installation support and technical assistance are available via email or phone.
