The Iconica 1000W 12V hybrid inverter is a versatile device that integrates the functions of a 1000W pure sine wave inverter, a 40A MPPT solar charge controller, and a 20A smart battery charger into a single portable unit. This inverter can accept input from solar panels, mains power/generator, and a battery, either from a single source or a combination of sources. It is designed to be an ideal solution for off-grid applications and features an Uninterrupted Power Supply (UPS) function, making it suitable for areas with unreliable or limited mains power. Additionally, it is suitable for both stationary and mobile off-grid installations, and can serve as a backup system for areas that experience frequent power cuts.

Key Functions:

1. The inverter can convert DC current into 230V AC mains electricity, making it suitable for running various household appliances such as TVs, laptops, lighting, and fans. It offers 1000VA of continuous power and has a peak power handling capability of up to 2000VA, making it capable of starting appliances with electric motors. This pure sine wave inverter provides greater efficiency and compatibility with a wider range of appliances compared to modified sine wave inverters.

2. The built-in 40A MPPT solar charge controller is highly efficient and regulates the input from the solar panels to the batteries or load. It includes safety functions to protect against overcharge, overheating, reverse current, and more, operating at up to 98% efficiency.

3. The enhanced 20A smart battery charger is designed to safely and efficiently charge a battery from a power source, with full overcharge protection and multiple charging stages for unattended use.

Additional Features:

- Output source priority: Allows the user to set preferences for the AC load output source, including solar power, battery power, mains input, or generator, based on varying conditions and scenarios.

- Battery charging priority: Offers options for charging the battery using solar power only, a combination of solar and mains power, or mains power only.

- Highly customizable settings: The inverter's parameters can be personalized through the user-friendly interface, enabling customization of AC input range, battery type, maximum charging current, specific high/low voltage disconnect points, charging stage characteristics, auto-restart options, power saving mode, overload bypass, battery equalization stage characteristics, and more.

- Illuminated LCD screen: Displays vital statistics such as status/mode, input/output voltage, frequency, battery voltage, load power percentages, and charge/discharge current.

- Advanced communication options: Comes with a PC connection cable and software CD to view important system information, with options for detailed data logs and data transmission to an online user portal via Wi-Fi connection kit, mobile app Wi-Fi kit, or 3G connection kit (purchased separately).

- Auto restart function: Automatically disconnects load appliances in the event of overload or overheating.

The inverter will automatically reconnect when safe conditions are detected, thanks to an inbuilt fan that maintains an optimal operational temperature.

Intelligent Cooling Design: The inverter uses predictive fan logic to prevent overheating of the components. This logic is based on performance and temperature, and 1 or 2 fans operate at a time with variable speeds.

Compatibility: This hybrid inverter is compatible with 12V flooded and sealed GEL/AGM lead-acid batteries. It includes predefined charging programs for these batteries and also offers a user-defined battery type with customizable settings for charging other lead-acid batteries. The inverter comes with a 1.5m cable and a 3-pin UK plug for connecting to a mains power outlet. For more information, click on the "Details and Specifications" tab.

Inverter Specifications:

- Nominal battery voltage: 12V

- Continuous power output: 1000W / 1000VA

- Surge power: 2000VA

- Output voltage: 230V AC

- Output frequency: 50Hz

- Output waveform: Pure sine wave

- Maximum solar input power: 500W

- Maximum open circuit solar input voltage: 102V

- Maximum solar charging current: 40A

- MPPT operating voltage range: 15V to 80V

- Maximum mains AC charging current: 20A

- Maximum combined charging current: 60A

- Peak efficiency: 93%

- Operating temperature: -10°C to 50°C

- Supplied with: 1.5m AC power cable with 3-pin UK plug, PC connection cable, and PC software CD

- Size: 32 x 22.5 x 8.8 cm

- Weight: 5 kg

- This product is covered by a 1-year manufacturer warranty.

Please Note: Due to the quietness of the cooling fan(s), this inverter may not be suitable for use in locations that require absolute silence, such as bedrooms at night.

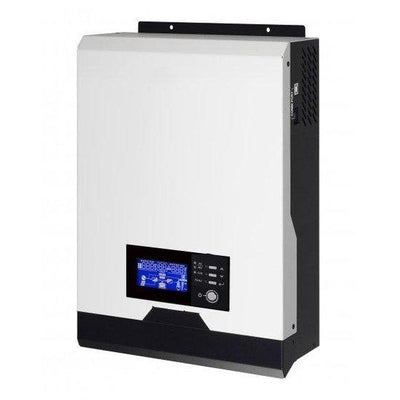

Iconica 1000W 12V hybrid pure sine wave inverter with 40A MPPT solar controller and 20A mains charger
