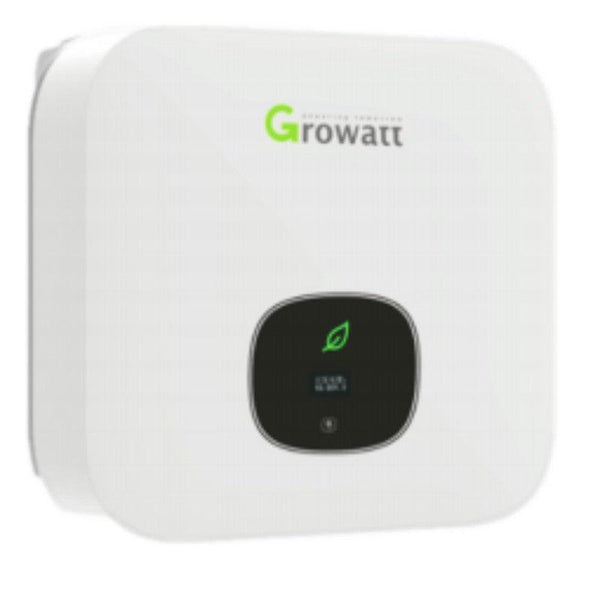

Product Details
The new X range of residential inverters is a smaller, lighter version of it's -S predecessor. The sleek, minimal design makes it an aesthetic choice at a competitive price. The low start up voltage and wide voltage range allow flexibility in string design.
Note: These products are not compatible with the standard Shinelink or Shinevision monitoring options and require the Shinelink-X for monitoring.- MIC inverters require a meter to achieve the export limit function.
AC attributes
Max power: 3000W
Max current: 14.3A
Number of phases: 1
DC attributes
Number of MPPT 1
V range of MPPT 65 - 550V
Max power 4200W
Max Isc current 16A
Max voltage 550V
Start up voltage 80V
System
Max efficiency 97.6%
IP rating IP65
Built in protection Type III AC/DC surge
Export limitations With meter or CT
Weight 6kg
Dimensions 274x254x138mm
Communication RS485, USB, (wifi, GPRS,RF,LAN optional)
Warranty (extensions) 10 years
Key features
Lightweight
Build in SPD protection
Indoor or outdoor installation
