EPEVER UPower Series Solar Hybrid Off Grid Inverter 5000VA / 48V & MPPT Charge Controller 4000W / 80A (UP5000-M8342)
Solar Hybrid Inverter. MPPT Solar Charger. Pure Sine Inverter.
- Industrial Grade Specification
- Quick Transfer Speed and High Efficiency
- Large LCD Display and Control with optional PC software
- 2 Year Warranty
CE & RoHS Certified

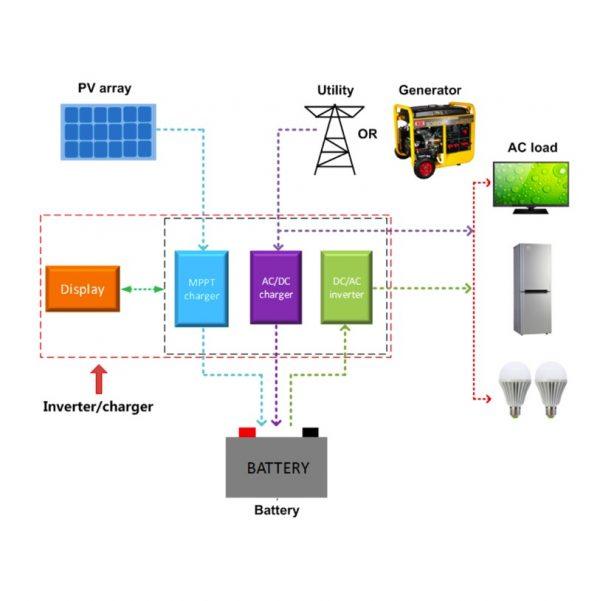

A Hybrid fully configurable Inverter Charger combining MPPT Solar Charging and Inverter function in one reliable solar off-grid package. Suitable for Industrial, Commercial, Scientific, Residential and Marine use.
Available in 1KVA, 2KVA, 3KVA and 5KVA models.
Industrial grade design with 2 Year Warranty:
- Uses multi-core processor design and an advanced MPPT control algorithm in an IP30 enclosure.
- SPWM Pure Sine Wave output. Low Harmonic Distortion (≤3%) suitable for industrial, scientific and medical applications.
- MPPT technology with efficiency up to 99.5%
- AC side / Utility side 2P circuit breakers inbuilt (reduces installation space and time)
- Battery temperature compensation function
- Extensive electronic protection
- Can deliver instantaneous Output Surge Power twice the device rated power.
- For Critical UPS Power Applications, inbuilt Relay Interface can activate an external power source (e.g. Auto Start/Stop Generator) when Battery voltage is critically low.
MPPT Solar Charge algorithm maximises conversion efficiancy up to 99.5%. Battery Charging function configurable to suit local environment preferences and reliabilty requirements in multiple priority modes:
- Solar charging priority over Utility (to balance low running cost with reliability)
- Utility charging priority over Solar (to maximise charge in cloud conditions)
- Solar-only charging (to achieve the lowest running cost)
- Utility & Solar combined simultaneous charging
Inverter DC-AC module uses SPWM to produce Pure Sine wave output suitable for residential and commercial/scientific applications.
AC Inverter Module can be configured to run on:
- Always Battery source. This creates a continuously stable output for systems requiring UPS (Uninterrupted Power Supply), e.g. telecommunication systems or medical devices, or for countries where electrical power is unstable.
- Utility Power as default. For example when a Boat is connected to shore power.
- Configure output Voltage between 230VAC and 220VAC, and frequency between 60Hz or 50Hz
Control and Monitoring: Large 4.2-inch inbuilt display with real-time operational data. Control and Monitor the system with PC Software or Android App.
- Optional Communication Cable (USB to RS485) required for PC connection.
- Optional eBox-WiFi required for Mobile Phone.
- PC Software is required (Download here).
Electrical Specification:
| UPower Series | 1 KVA (UP1000-M3212) | 2 KVA (UP2000-M3322) | 3 KVA (UP3000-M3322) | 3 KVA (UP3000-M6322) | 5 KVA (UP5000-M8342) |
|---|---|---|---|---|---|
| System Battery Voltage (and Range) | 12 V DC (10.8～16VDC) | 24 V DC (21.6～32VDC) | 48 V DC (43.2～64VDC) | ||
| Output Power (15min.) | 1000W (Continous 800W) | 2000W (Continous 1600W) | 3000W (Continous 2400W) | 3000W (Continous 2400W) | 5000W (Continous 4000W) |
| Max. Surge Power | 2000W | 4000W | 6000W | 6000W | 10000W |
| Inverter Output Voltage / Frequency | 220VAC±3%, 230VAC (-7%～+3%) / 50Hz/60Hz | ||||
| Inverter Output Wave | Pure Sine Wave | ||||
| Distortion THD | ≤3% (12V or 24V resistive load) | ||||
| AC Utility Input Voltage | 160VAC～280VAC(Working voltage range), 170VAC～270VAC(Utility starting voltage range) | ||||
| Max. Utility Charge Current | 20A | 30A | |||
| Max. PV Open Circuit Voltage | 46V | 92V | 138V | 180V | |
| Max. PV Input Power | 390W | 780W | 1500W | 4000W | |
| Max. PV Charging Current | 30A | 60A | 80A | ||
| Battery Type | Lead Acid (AGM / Gel / Sealed / Flooded) / User Custom (Lithium / Other) | ||||
| Battery (Equalization/Boost/Float) Volatge | 14.6V / 14.4 V / 13.8 V | 29.2 V / 28.8 V / 27.6 V | 58.4 V / 57.6 V / 55.2 V | ||
| Temperature Compensation Coefficient | -3mV/℃, 2V (Default) | ||||
| MPPT Tracking Efficiency | upto 99.5% | ||||
| PC Connectivity Option | RS485 Interface | ||||
| Inbuilt Relay Interface | Can drive resistive loads 125VAC /1A, 30VDC/1A | ||||
Environment Specification:
| Operating Temperature Range | -20°C ~ +50°C |
| Relative Humidity | ≤95%, N.C |
| Enclosure | IP30 |
Physical Specs:
| Parameter | 1 KVA (UP1000-M3212) | 2 KVA (UP2000-M3322) | 3 KVA (UP3000-M3322) | 3 KVA (UP3000-M6322) | 5 KVA (UP5000-M8342) |
|---|---|---|---|---|---|
| Dimension | 386×300×126mm | 444×300×126mm | 518×310×168mm | 614×315×178mm | |
| Mounting Dimension | 230mm | ||||
| Mounting Hole Size | Φ8mm | ||||
| Weight | 7.3kg | 8.5kg | 9.2kg | 14.9kg | 17.5kg |
Full Protection Functions:
PV Over Current, PV Short Circuit, Night Reverse charging, Battery & PV reverse polarity, Battery over-discharge, Battery overheat, Battery over-voltage, Load Short Circuit, Load Overload, and Device overheating. Note: To comply with IEC62109 requirement, connector for the battery temp sensor is now located inside the unit.
CE, RoHS.
Box Contains:
- Hybrid Charger/Inverter
- DC Circular & Input Terminals
- Battery Input Fuse
- Environment Temperature Sensor
- Installation tools. Wall Template, Anchor Bolts and Screws.
Specifications subject to change. * Lithium Battery compatibility is not guaranteed, due to varying battery chemistry and BMS configurations.
