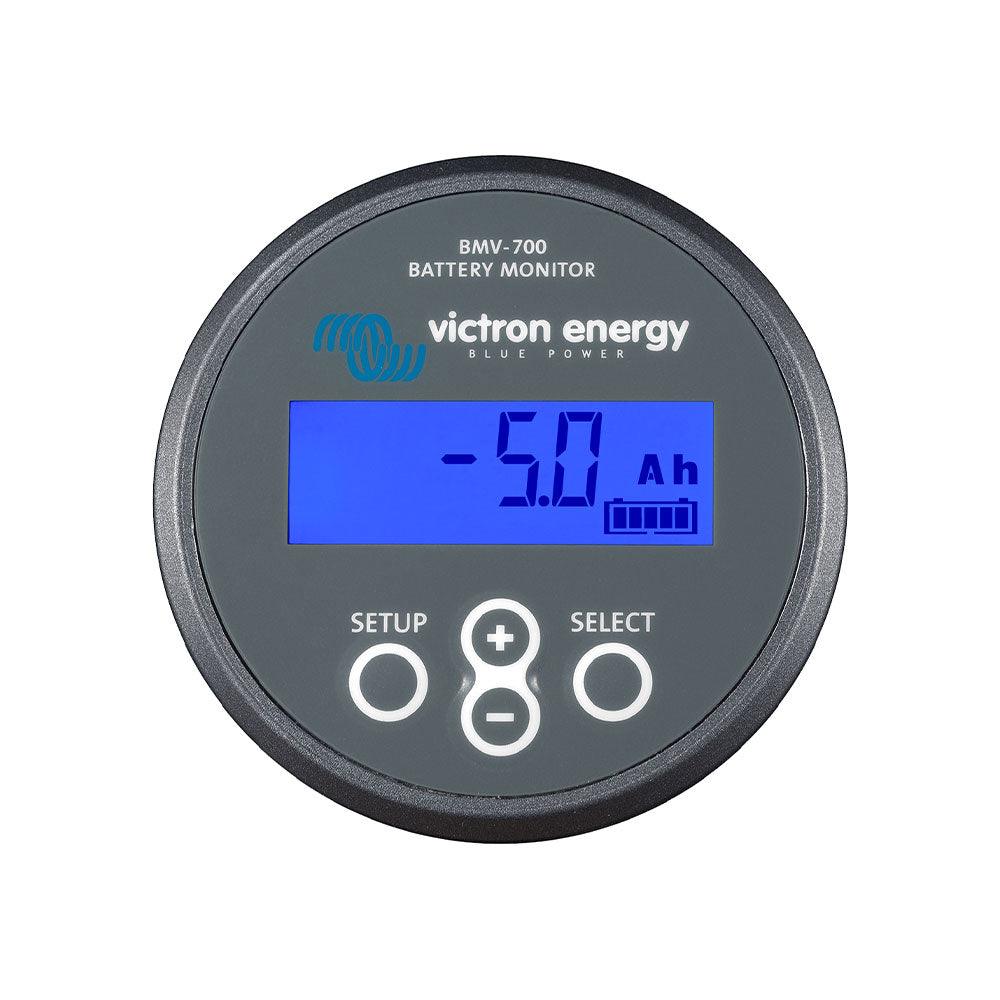

Victron Battery Monitor BMV-700

Regular price £236.00 £189.00

Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU: 792-BAM010700000

  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping
  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

    • Supply Voltage Range: 6.5-95 VDC
    • Battery Capacity (Ah): 1-9999
    • Temperature Sensor: Optional
    • Protection Category: IP55
    • Front Bezel: 69 x 69mm
    • Body Diameter & Depth: 52 x 31mm
    • Warranty: 5 Years
    • Battery voltage current power ampere-hours consumed and state of charge
    • Remaining time at the current rate of discharge
    • Programmable visual and audible alarm
    • Programmable relay to turn off non critical loads or to run a generator when needed
    • 500 Amp quick connect shunt and connection kit
    • Shunt selection capability up to 10.000 Amps
    • VE.Direct communication port
    • Stores a wide range of historical events which can be used to evaluate usage patterns and battery health
    • High current measurement resolution: 10 mA (0 01A)
    • Low current consumption: 2 9Ah per month (4mA) @12V and 2 2Ah per month (3mA) @ 24V

    Battery ‘fuel gauge’ time-to-go indicator and much more

    The remaining battery capacity depends on the ampere-hours consumed discharge current temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.

    Next to the basic display options such as voltage current and ampere-hours consumed the BMV-700 series also displays state of charge time to go and power consumption in Watts.

    Easy to install

    All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

    Also included are a separate front bezel for a square or round display appearance a securing ring for the rear mounting and screws for the front mounting.
