Victron SmartSolar MPPT 150/85 for solar panels up to 150V (Bluetooth inbuilt)

Regular price £729.99 Sale

per
Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU: VSSM150-85

  • For all products over £50 you will get an extra 10% off, right in the check-out page!!
  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping

  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

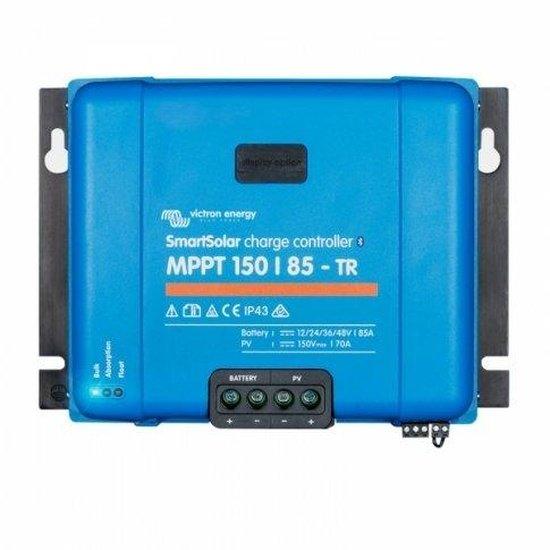

    This Victron 150V 85A MPPT?ÿcontroller comes?ÿfrom the intelligent SmartSolar range, which uses the latest ultrafast MPPT technology to?ÿmaximise energy harvest whilst maintaining optimal battery health. SmartSolar MPPT controllers uniquely feature built-in Bluetooth , to allow remote system monitoring via any Bluetooth enabled device, along with a programmable relay with various signalling options. Ultrafast MPPT Technology: This 85A MPPT solar charge controller is designed to deliver the highest possible energy yield in the shortest amount of time.?ÿThis is achieved?ÿthrough the use of high speed Maximum Power Point Tracking technology, which?ÿtracks the maximum power voltage point of the solar panels as it varies depending on sunlight exposure and temperature.?ÿ This?ÿtechnology enables the controller to produce?ÿup to?ÿ30% greater energy yield than PWM controllers and as much as 10% more power than slower MPPT controllers. This advanced technology?ÿallows the controller to?ÿperform extremely well?ÿin low-light or cloudy conditions, as the controller consistently strives to extract?ÿthe maximum?ÿavailable power from the solar array. Inbuilt safety protection: Fully equipped with an extensive range of safety features, this controller?ÿoffers complete?ÿprotection against potential hazards such as PV short circuit, reverse polarity, overvoltage, overcurrent and reverse current, as well as?ÿbattery overvoltage, reverse polarity and overheating -?ÿmonitored via the internal temperature sensor. The controller also has self-diagnostic capability?ÿand highlights?ÿany system errors using sophisticated fault-targeting technology.?ÿThese?ÿare signalled via the high intensity LED indicators.?ÿ?ÿ Inbuilt Bluetooth: This SmartSolar?ÿcharge controller features?ÿ built-in Bluetooth which allows the user to easily connect to any Bluetooth enabled device, such as a mobile phone, tablet or?ÿiPad?ÿin order to access ?ÿ the VictronConnect App ?ÿ(no additional Bluetooth dongle required).?ÿThe?ÿmobile app unlocks?ÿnumerous possibilities for?ÿadvanced programming and remote monitoring of your Victron SmartSolar system. Once the controller is paired with the app,?ÿa wide range of?ÿadditional features are made available, including: Live data transmission: Real-time information is displayed including solar panel output, battery voltage and current (flowing into and out of the battery) as well as battery state of charge. Detailed?ÿdata logs: System activity for the past 30 days is available to?ÿview; either as in-depth daily logs or as a monthly summary. These easy-view graphics display daily energy yield, maximum recorded power and voltage, time spent in each charging stage, minimum and maximum recorded battery voltages, error records and total energy counters. User-defined battery charging algorithm: Option to disable preset?ÿvalues in favour of?ÿpersonalised charging parameters, including user-defined?ÿabsorption voltage, absorption time, float voltage, equalisation voltage and temperature compensation settings. The VictronConnect App is?ÿalso available to download?ÿas a PC version , for computers without bluetooth connectivity. If you would like to?ÿuse?ÿthe PC version of the app to monitor/program your SmartSolar system, this controller can be connected to your PC via a VE Direct USB cable . Optional LCD display: Alternatively, this SmartSolar controller features?ÿa connection area for an optional?ÿ Plug-in LCD display ?ÿ (sold separately). Simply remove the rubber seal on the face of the controller and?ÿplug in the?ÿremoveable LCD display to access a range of monitoring and programming functions. This display shows charging parameters (voltage, current,?ÿpower) for the solar panel and?ÿbattery as well as 30 day?ÿperformance data and any system faults. The user can also set their own charging parameters for a user-defined battery type, personalise settings for the load, charging stages and more. Programmable relay: This solar charge controller has programmable relay contacts, which can be programmed (e.g. with a smartphone, via the app) to start a generator or to send a low battery signal which will activate?ÿan audible alarm. Other features: The Victron SmartSolar MPPT?ÿ150-85 model is ideal for a wide range of applications as it is resistant to extreme temperatures, high altitudes, dusty environments and marine environments. The unit enclosure is IP43 water resistant with resin encapsulation of the internal electrical components and has a PD3 pollution rating. This solar charge controller is also compatible with a wide range of battery types, including AGM, Gel , Tubular plate and Lithium batteries . Click on the Details and Specifications tab for more information about this product. Specifications: - The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system - Fully automated operation and auto 12 / 24 / 36 * / 48V selection - 2 pairs of terminals (solar panel, battery) for wires up to 35mm2 - Inbuilt bluetooth - Programmable relay: AC rating: 240VAC /4A , DC rating: 4A up to 35VDC, 1A up to 60VDC - Max solar panel voltage: 150V - Max solar panel power: 1200W (12V) / 2400W (24V) / 3600W (36V) / 4900W (48V) - Temperature sensor for automatic compensation (-16mV / -32mV / -48mV / -64mV / ?øC) - Comprehensive electronic protection features - Communication port: RS232 / TTL?ÿfor VE Direct accessories - Self-consumption: <35mA (12V) / <20mA (48V) - Working temperature: -30?øC to +60?øC - IEC/EN certified - Enclosure: IP43 (electronic components)?ÿ/ IP22 (connection area) - Pollution Degree rating: PD3 - Dimensions:?ÿ216 x?ÿ295 x?ÿ103?ÿmm - Mounting dimensions:?ÿ273 x?ÿ144 mm - Weight: 4.5kg - 4 x mounting holes (8mm diameter) for ease of installation * 36V selection available when using?ÿthe?ÿ Plug-in LCD display or VictronConnect App . This product is covered by a?ÿ 5 year warranty . The product comes with a detailed user manual which explains wiring and operations (see Documents tab). If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone. The following documents are available to download: User manual for Victron 85A MPPT SmartSolar solar charge controller VSSM150-85 Product datasheet for Victron 85A MPPT SmartSolar solar charge controller VSSM150-85
