Product Details

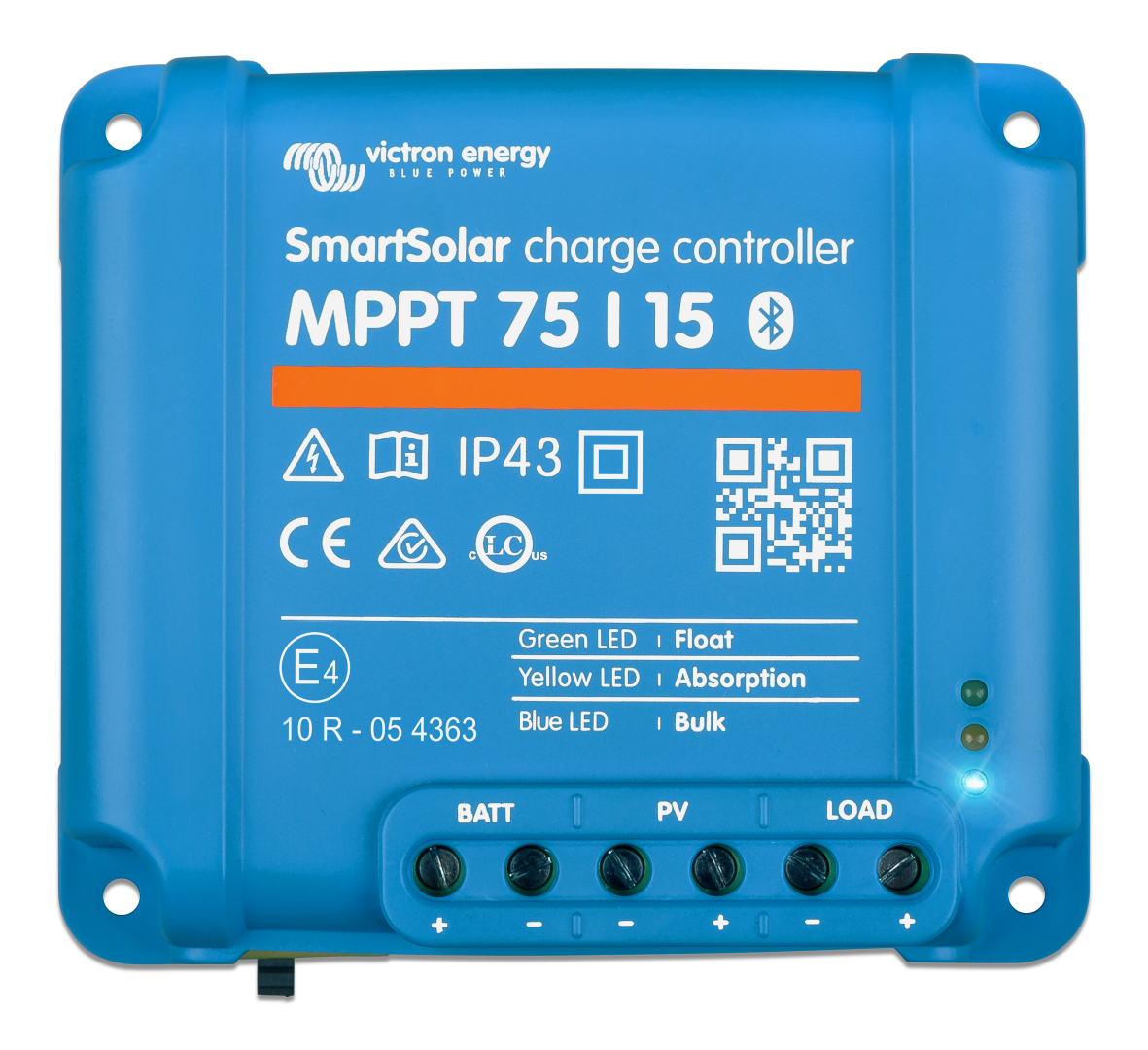

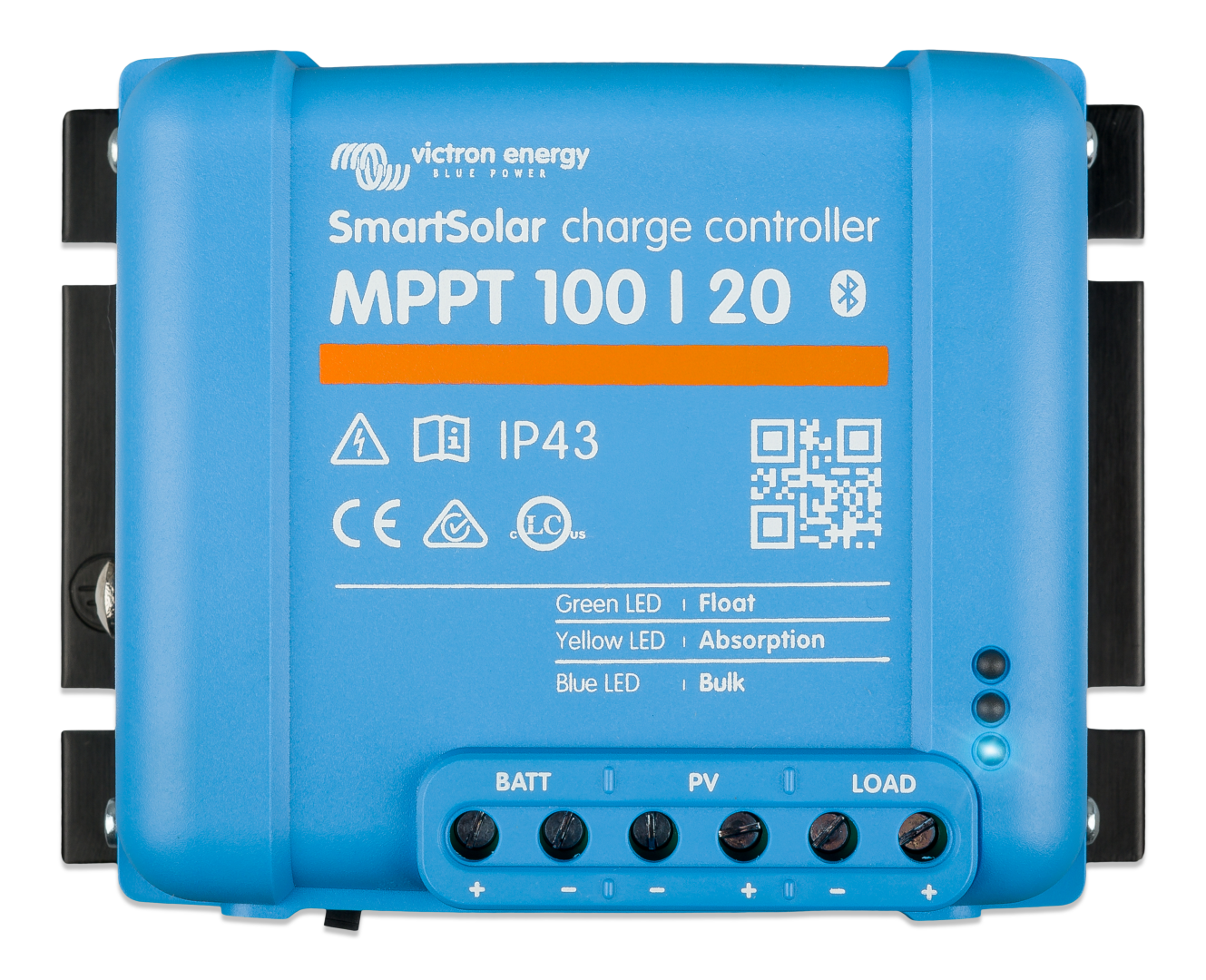

These Victron SmartSolar Charge Controllers support a PV input with a maximum open circuit voltage of either 75V or 100V and have a maximum output of up to 20A. They work with and will automatically recognise 12V, 24V and 48V battery systems (48V with SmartSolar 100/20-48 only).
- Internal Bluetooth for wireless communication with smartphones or tablets.
- Ultra-fast Maximum Power Point Tracking (MPPT) for maximum energy harvest.
- Advanced Maximum Power Point Detection in case of partial shading conditions
- VE.Direct communication port
- Up to 98% efficient
- Load output, connect ó20A loads to be automatically disconnected/reconnected by the charge controller to stop the battery being over discharged
- ó1A on 48V model
- Electronic protection:
- Battery reverse polarity
- PV reverse polarity / Output short circuit / Over temperature
- Internal temperature sensor, compensates absorption and float charge voltages
- 6 mmý screw terminals
- 5 years warranty
