Product Details

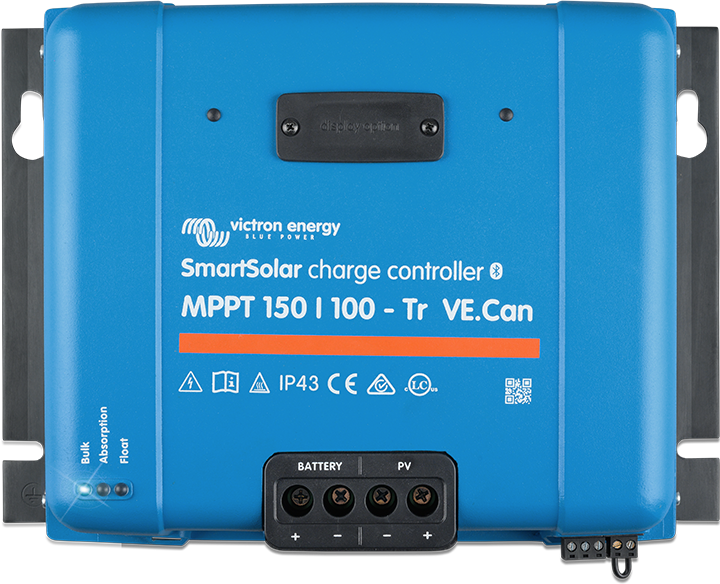

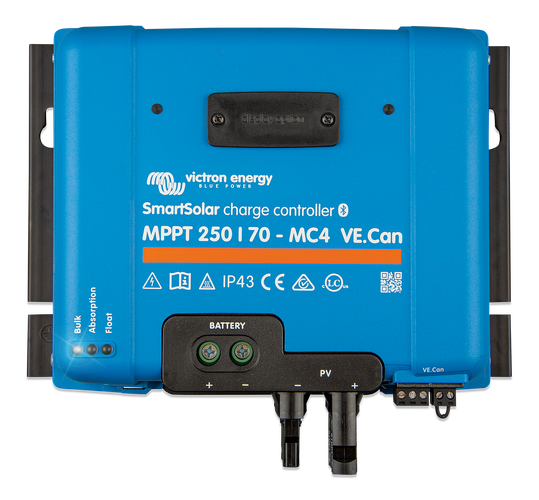

Identical to the SmartSolar Charge Controller MPPT but with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply ?daisy chained? to each other with a single RJ45 cable between the individual units.
When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.
- Optional display - plugs into front of controller for VSS-MPPT150/45 to VSS-MPPT250/70 units.
- Internal Bluetooth for wireless communication with smartphones or tablets.
- Ultra-fast Maximum Power Point Tracking (MPPT) for maximum energy harvest.
- Advanced Maximum Power Point Detection in case of partial shading conditions
- VE.Direct communication port and 2 VE.Can ports
- Available with 35 mmý screw terminals (TR) or 3 sets of MC4 connectors (MC4)
- Up to 98% efficient
- 8 preprogrammed algorithms selectable with a rotary switch
- Electronic protection:
- Battery reverse polarity (fuse, not user accessible)
- PV reverse polarity / Output short circuit / Over temperature
- Internal temperature sensor, compensates absorption and float charge voltages
- Remote on/off (2 pole connector)
- Programmable relay - DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC
- 5 years warranty
