Product Details
- Voltage: 12V
- Charge Current: 50A
- Input Voltage: 230V
- Number of Outputs: 1+1
- Protection Category: IP43 (electronic components) IP22 (connection area)
- Efficiency: 92%
- Bluetooth Enabled: Yes
- Dimensions: 180 x 249 x 100mm
- Weight: 3.5Kg
- Warranty: 5 Years

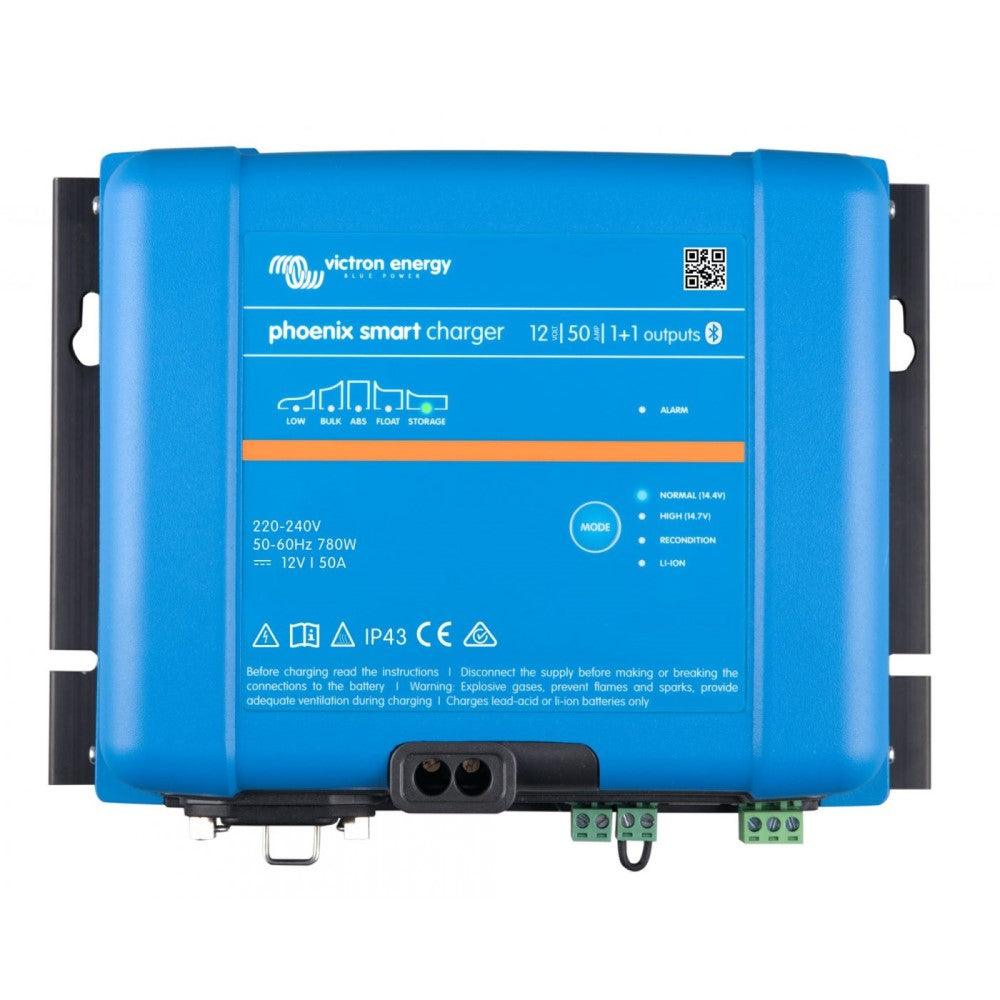

With boat owners in mind this adaptive 1+1 model 5-step charger provides 3A to the starter-battery and the rest to the ‘house’ bank. With Bluetooth enabled it is posible to monitor the charger and set alarms straight from a connected phone.
Features
Bluetooth Smart enabled
Any Bluetooth enabled smart phone tablet or other device can be used to monitor to change settings and to update the charger when new software features become available.
Phoenix Smart (1+1): two outputs to charge 2 battery banks
The second output limited to approximately 3A and with a slightly lower output voltage is intended to top up a starter battery.
Automatic voltage compensation
The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.
Adaptive 5-stage charge algorithm: Bulk – Absorption – Recondition – Float – Storage
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the charge process relative to the way the battery is being used.
The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.
Preventing damage due to excessive gassing: the BatterySafe mode
If in order to quickly charge a battery a high charge current in combination with a high absorption voltage has been chosen the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached
Less maintenance and aging when the battery is not in use: the Storage Mode
The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2 2 V/cell (13 2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation a major cause of early battery failure.
Also charges Li-ion (LiFePO₄) batteries
Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port. Alternatively full control of voltage and current can be achieved with Bluetooth.
Fully programmable charge algorithm
The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface. Three preprogrammed algorithms can be selected with the mode button (see specifications).
Remote on-off
The remote on/off consists of two terminals: Remote H and Remote L. A remote on/off switch or relay contact can be connected between H and L. Alternatively terminal H can be pulled high or terminal L can be pulled low. See manual for details.
VE.Direct interface
For a wired data connection to a Color Control panel PC or other devices. Please see the VictronConnect app under Downloads / Software on our website.
Programmable relay
Can be programmed using the VE.Direct interface or a Bluetooth enabled device to trip on an alarm or other events.
