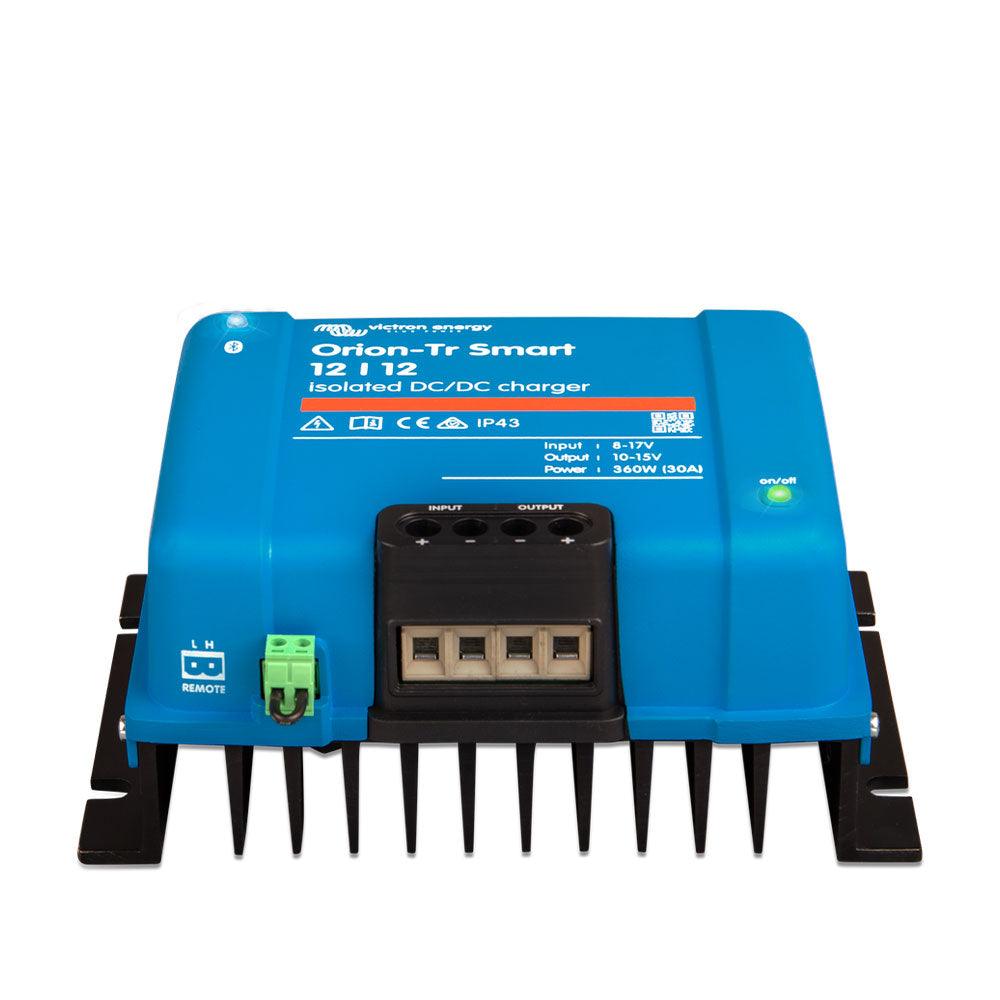

Victron Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger

Regular price £445.00 £356.00

per
Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU: 792-ORI121236120

  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping
  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

    • Voltage: 12/12V
    • Cont. Output Current: 30A
    • Protection Category: IP43 (electronic components) IP22 (connection area)
    • Efficiency: 87%
    • Bluetooth Enabled: Yes
    • Dimensions: H130 x W186 x D80mm
    • Weight: 1.8Kg
    • Warranty: 5 Years

    The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

    For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

    The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

    Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

    Features

    Bluetooth Smart enabled

    Any Bluetooth enabled smart phone tablet or other device can be used to monitor to change settings and to update the charger when new software features become available.

    Fully programmable

    Battery charge algorithm (configurable) or fixed output.

    Smart alternator compatibility: engine running detection mechanism.

    Adaptive 3-stage charge algorithm: bulk – absorption – float

    For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.

    For lithium batteries absorption time is fixed default 2 hours.

    Alternatively a fixed output voltage can be chosen.

    Remote on-off

    A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively the H terminal (right) of the two-pole connector can be switched to battery plus or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle for example).

    All models are short circuit proof and can be paralleled to increase output current

    An unlimited number of units can be connected in parallel.

    High temperature protected

    The output current will reduce at high ambient temperature.

    IP43 protection

    When installed with the screw terminals oriented downwards.

    Screw terminals

    No special tools needed for installation.

    Input fuse (not replaceable)
