Product Details
- Input Voltage Range: 15-40VDC
- Under Voltage Shutdown: 13V
- Under Voltage Restart: 14V
- Max. Continuous Output Current: 20A
- Short Circuit Proof: Yes
- Protection Category: IP67
- Dimensions: H74 x W74 x D32mm
- Weight (kg): 0.3
- Warranty: 5 Years
Completely encapsulated: waterproof shockproof and ignition protected

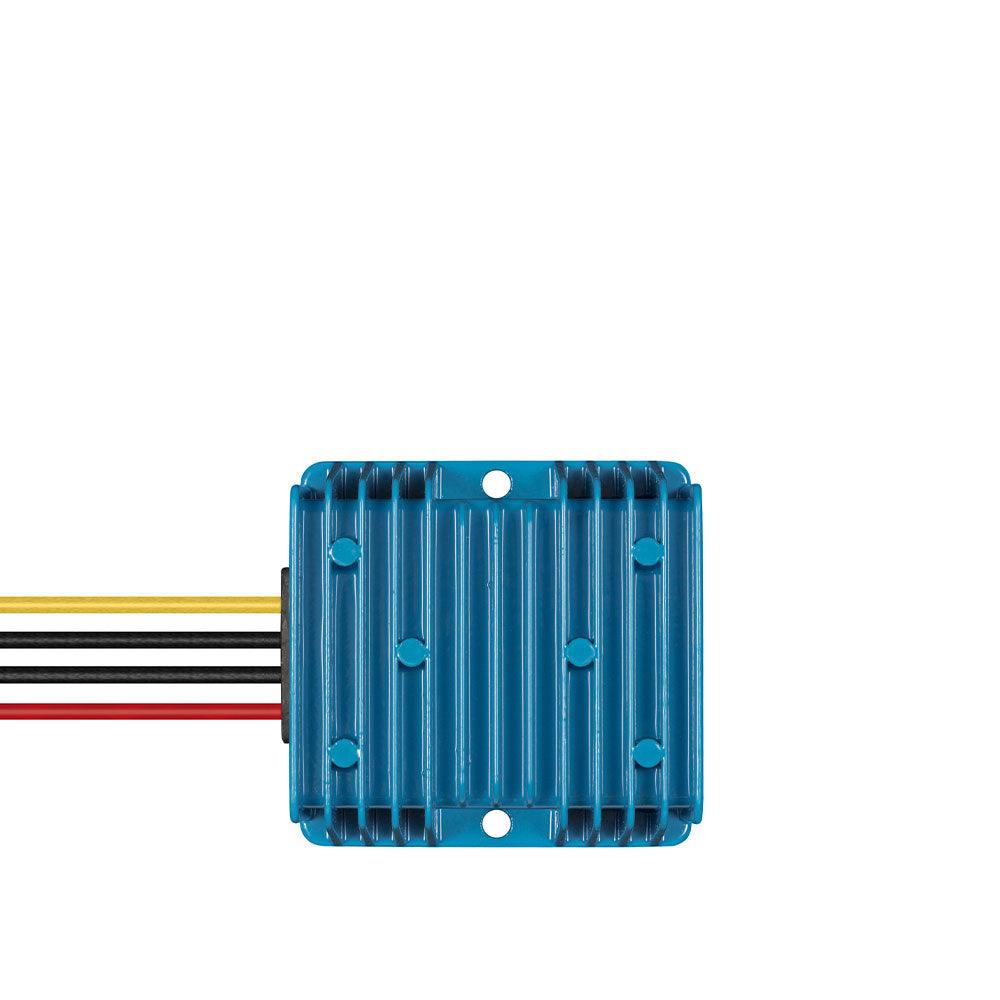

Water oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.
Extra-long input and output cables
Thanks to the cables of 1.8 meters in length intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.
Wide input voltage range
With 15 to 40 Volts input range a stable output is ensured during surges or sags due to other equipment connected to same battery.
Protected against overheating
It can be used in a hot environment such as a machine room.
