Product Details

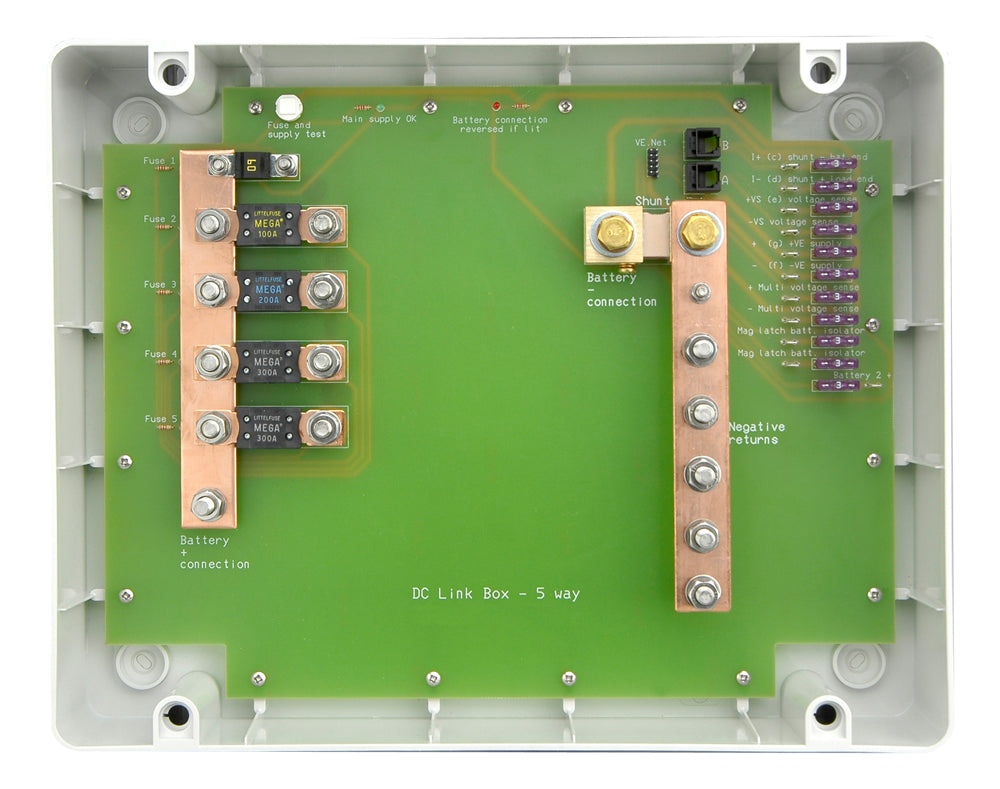

The Victron ESP DC link box facilitates connection of the primary DC protection, DC monitoring and sensor connections into one simple to fit enclosure.
Includes:
- 4 Mega fuses (2x 300A, 1x 200A, 1x 100A) and 1 Midi fuse (60A) (these can be changed)
- 500 amp shunt
- Test button with LED's for all 5 fuses and a polarity warning LED
- Fused connection points for MultiPlus voltage sense and BMV-600 connections
- Fused connections for magnetically latching battery isolator which can be controlled via ESP system panel
- RJ 11 and 45 socket connections for ESP system panel
- 5 years warranty
