Product Details

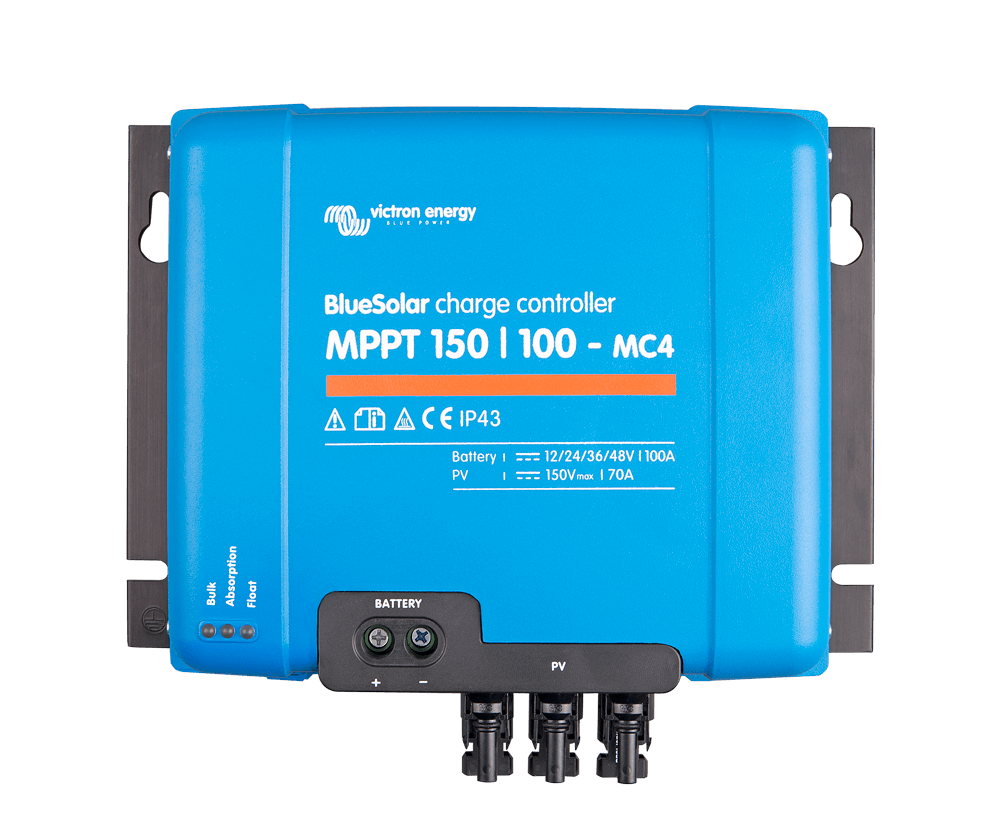

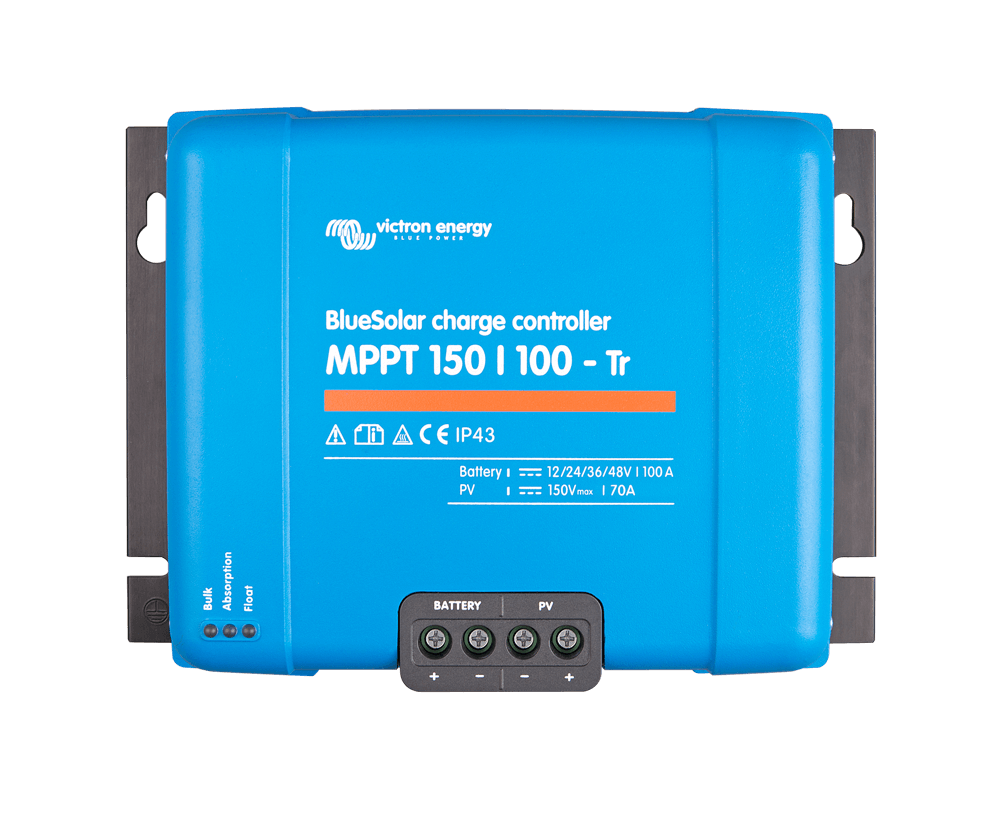

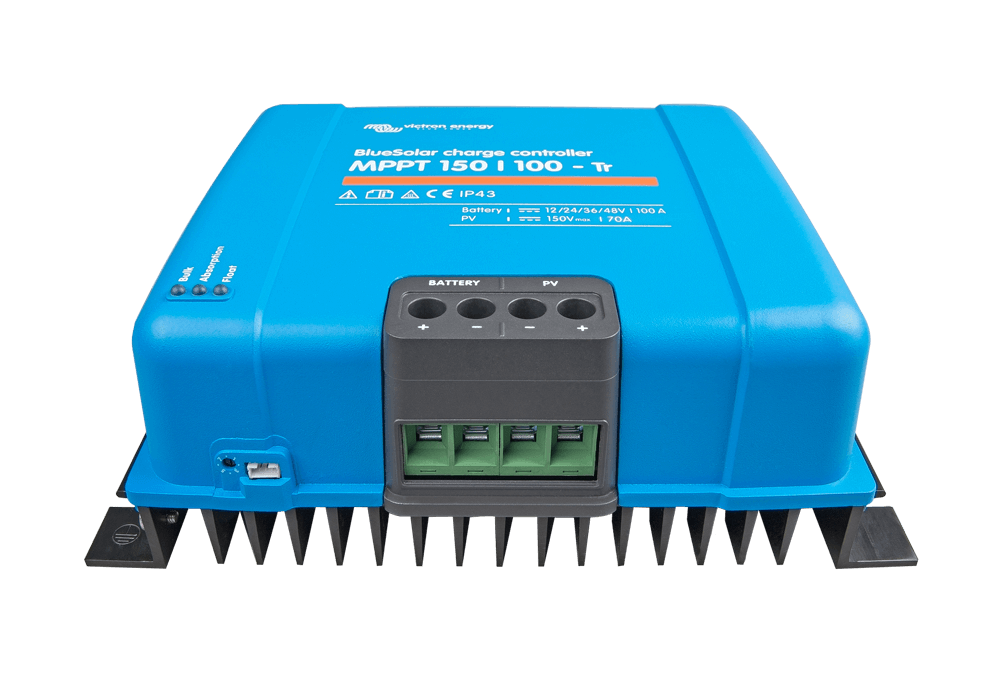

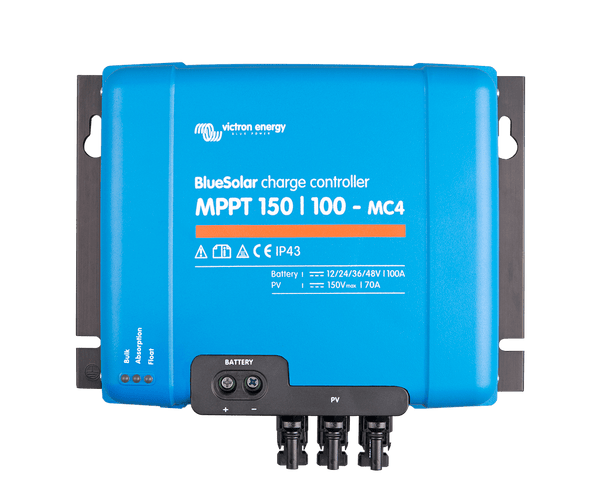

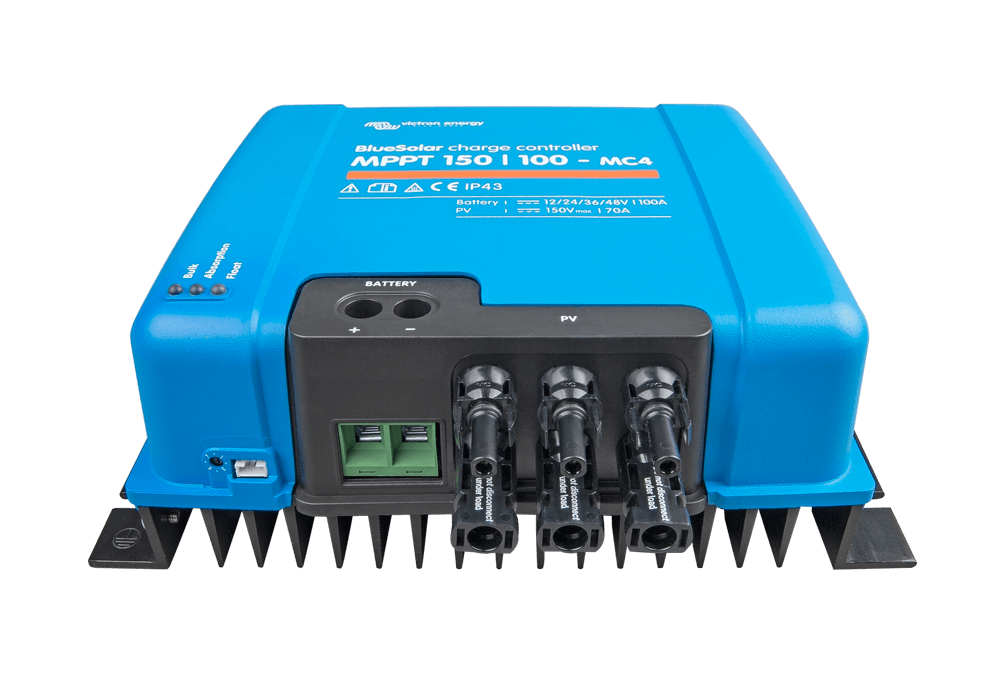

These Victron Blue Solar Charge Controller supports a PV input with a maximum open circuit voltage of either 150V or 250V and have a maximum output of up to 100A. It works with and will automatically recognise 12V, 24V and 48V battery systems (36V also possible via software configuration).
Highlights:
- Bluetooth enabled (Bluetooth dongle needed)
- Ultra-fast Maximum Power Point Tracking (MPPT)
- Advanced Maximum Power Point Detection in case of partial shading conditions
- VE.Direct communication port
- VE.Can models allow daisy chained communication
- Available with 35 mmý screw terminals (TR) or 3 sets of MC4 connectors (MC4)
- Up to 98% efficient
- 8 preprogrammed algorithms selectable with a rotary switch
- Electronic protection:
- Over-temperature
- PV short circuit, reverse polarity and reverse current
- Internal temperature sensor, compensates absorption and float charge voltages
- 5 years warranty
