Victron Battery Monitors

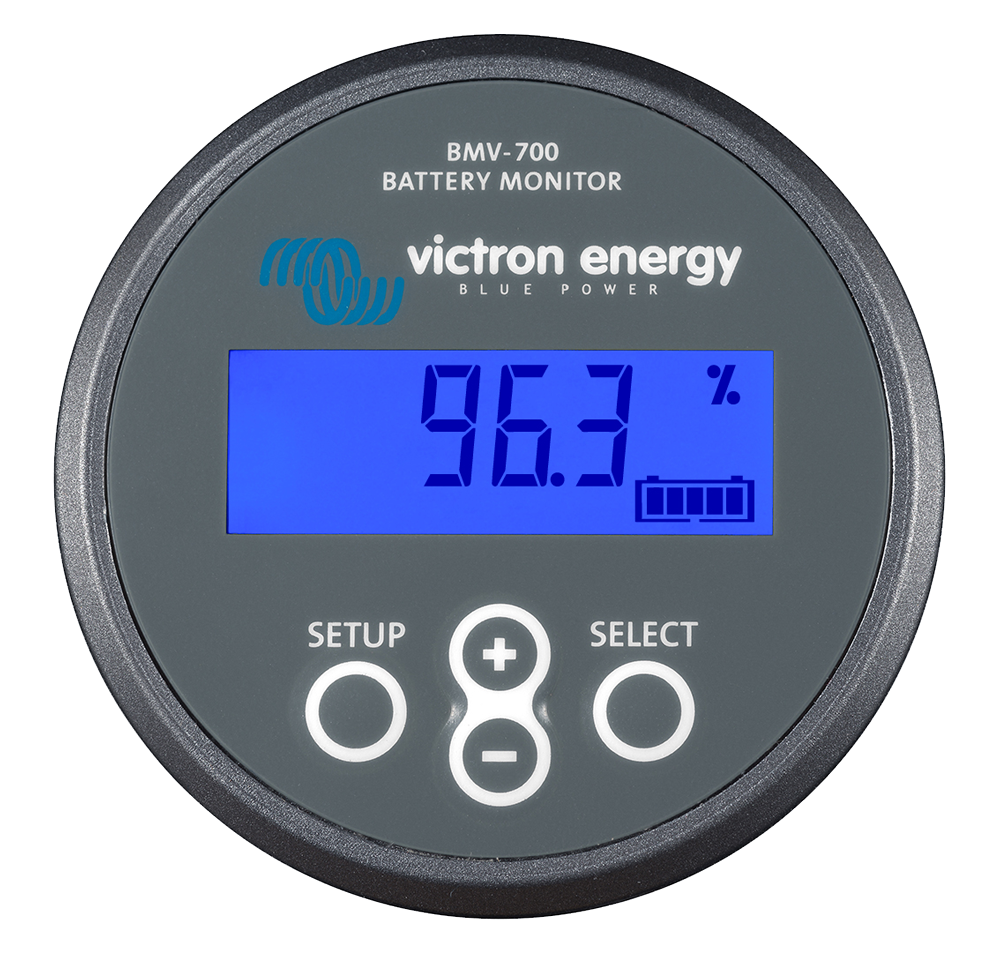

The Victron battery monitors precisely measure the power going in/out of the battery to exactly determine the battery state of charge.

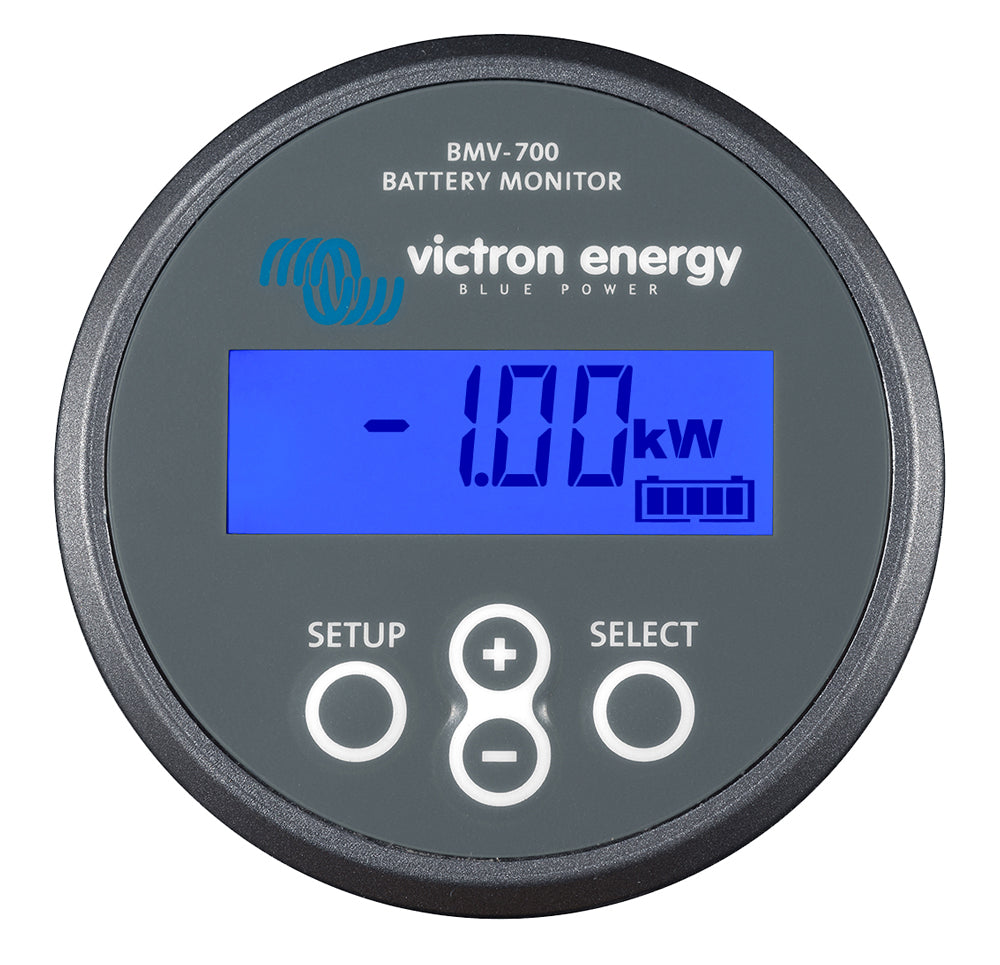

Displays:

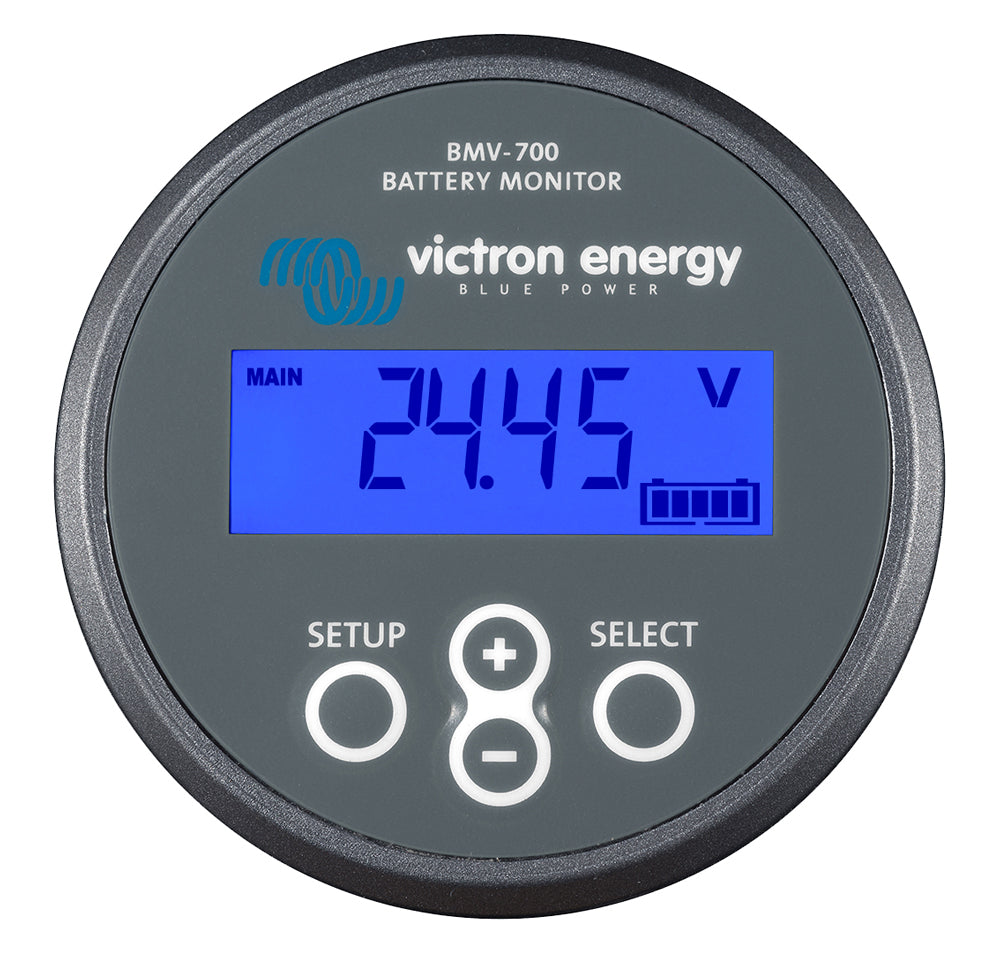

• battery voltage

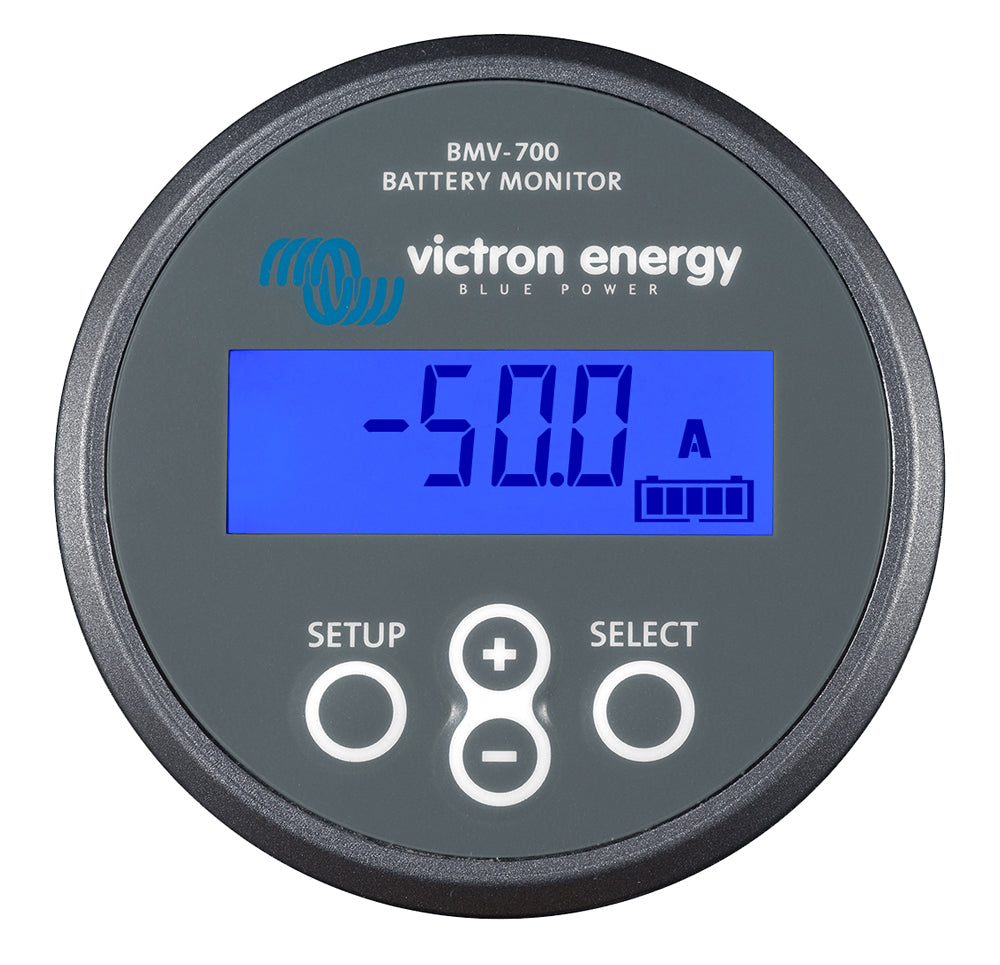

• charge/discharge current
• amp-hours consumed
• time remaining at current rate of discharge

Visual and audible alarms:

• over and under voltage
• and/or battery discharged

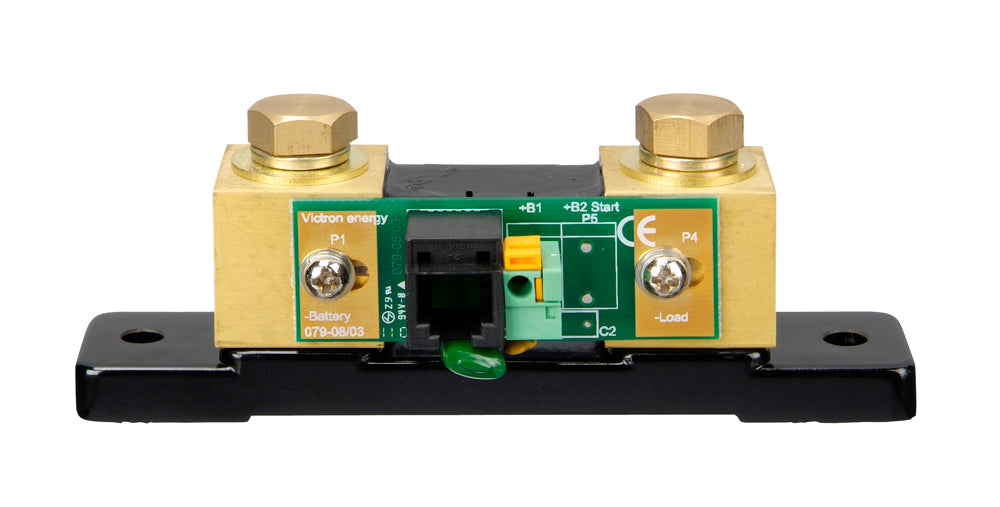

Includes 500A/50mV shunt as standard (M10 stud connectors) which is placed in the main negative cable to the battery being monitored , optional 2000A shunt available.

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

Includes programmable alarm or generator start relay.

The VBMV-702 adds the ability to connect a second battery for monitoring two battery systems.

• 5 years warranty
