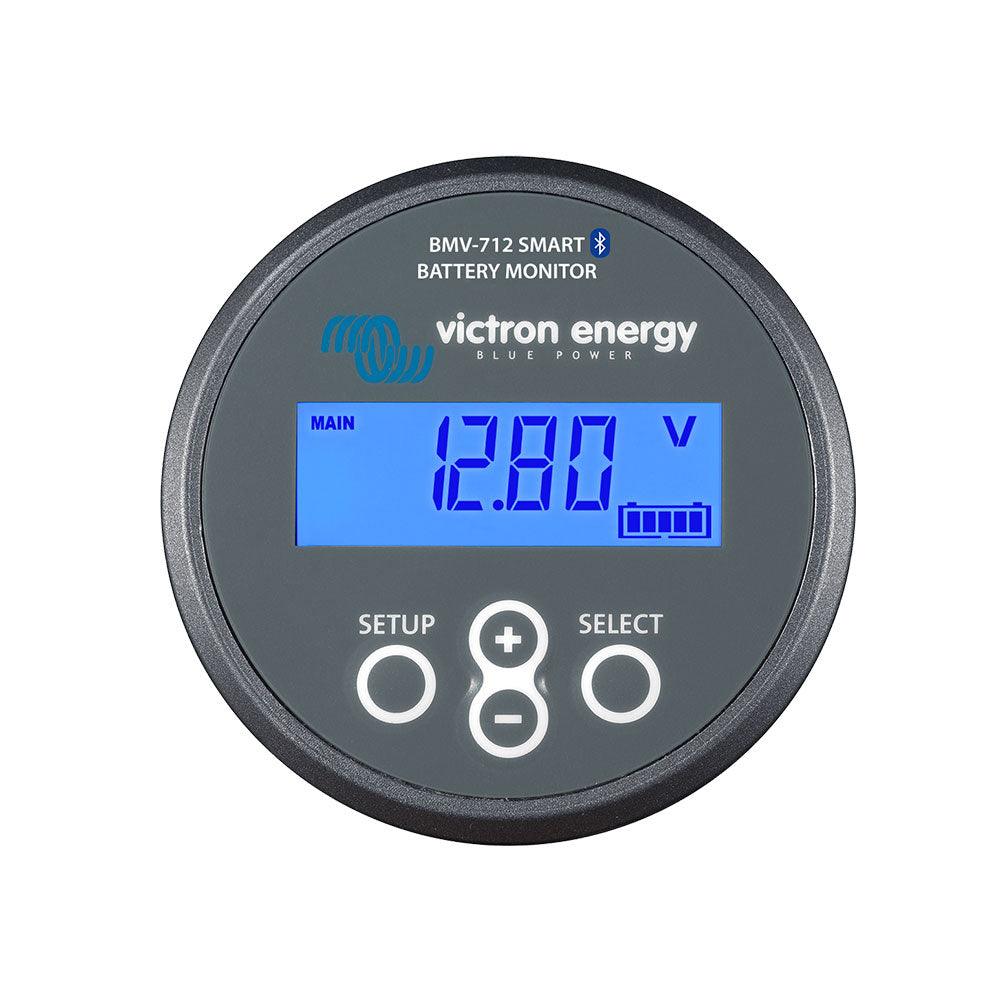

Victron Battery Monitor BMV-712 Smart

Regular price £339.00 £271.00

per
Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU: 792-BAM030712000

  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping
  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

    • Supply Voltage Range: 6.5-70 VDC
    • Battery Capacity (Ah): 1-9999
    • Temperature Sensor: Optional
    • VE.Direct Communication Port: Yes
    • Protection Category: IP55
    • Front Bezel: 69 x 69mm
    • Body Diameter & Depth: 52 x 31mm
    • Warranty: 5 Years

    Bluetooth inside

    With Bluetooth built-in the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products wireless communication between products will simplify system installation and enhance performance.

    Download the Victron Bluetooth app

    Use a smartphone or other Bluetooth enabled device to – customize settings – monitor all important data on single screen – view historical data and to – update the software when new features become available.

    Easy to install

    All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

    Also included are a separate front bezel for a square or round display appearance a securing ring for rear mounting and screws for front mounting.

    Midpoint voltage monitoring

    One bad cell or one bad battery can destroy a large expensive battery bank. When batteries are connected in series a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual section 5.2 for more information.

    We recommend the Battery Balancer (BMS012201000) to maximize service life of series-connected lead-acid batteries.

    Very low current draw from the battery

    Current consumption: 0 7Ah per month (1mA) @12V and 0 6Ah per month (0 8mA) @ 24V Especially Li-ion batteries have virtually no capacity left when discharged until low voltage shutdown. After shutdown due to low cell voltage the capacity reserve of a Li-ion battery is approximately 1Ah per 100Ah battery capacity. The battery will be damaged if the remaining capacity reserve is drawn from the battery. A residual current of 10mA for example may damage a 200Ah battery if the system is left in discharged state during more than 8 days.

    Bi-stable alarm relay

    Prevents increased current draw in case of an alarm.
