Victron 30A 12V Blue Smart IP22 mains battery charger with Bluetooth connectivity

Regular price £209.99 Sale

Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU: VBC1230

  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping
  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

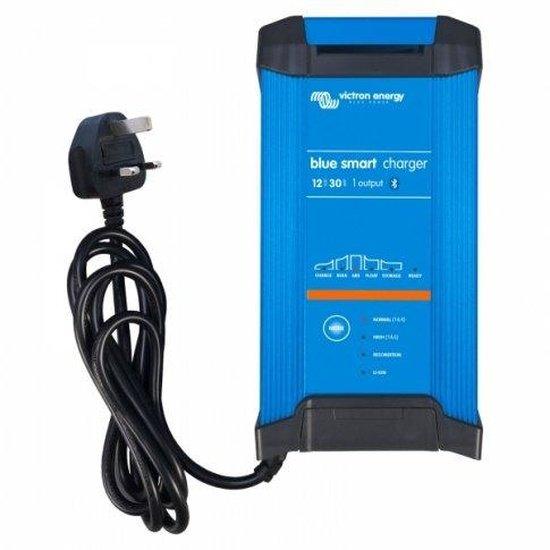

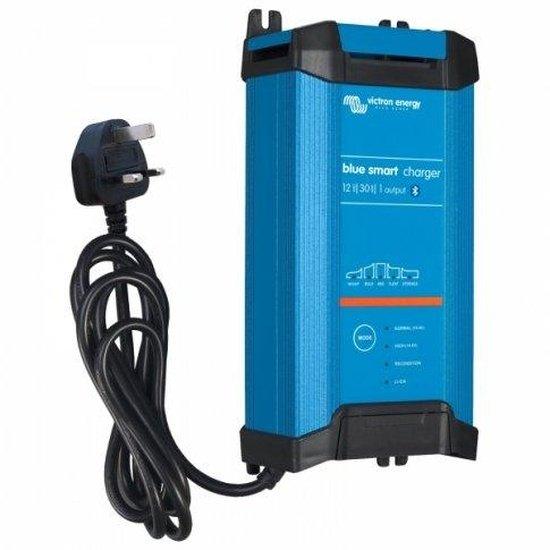

    This?ÿ Victron 30A 12V?ÿBlue Smart IP22 mains battery?ÿcharger is designed to enable safe and efficient unattended charging of a 12V battery or battery bank from a mains power source (220-240V AC). This mains charger boasts an outstanding 93%?ÿefficiency , along with an adaptive automatic 7-stage charging process?ÿto deliver faster and more efficient charging. This unit also uniquely features Bluetooth connectivity , which enables the user to remotely monitor the charging system on a mobile device. This unit?ÿcan charge a single 12V battery or several 12V batteries connected in parallel (batteries must be the same?ÿtype, capacity and age). This mains battery charger is compatible with Lithium batteries (with a dedicated charging mode to optimise performance) and standard Lead Acid batteries, including AGM, Gel and Wet cell batteries. Key features: - Safe?ÿunattended charging:?ÿ Features inbuilt safety functions (protection?ÿagainst DC short circuits, overheating, overcharging and reversing the polarity of the battery), which allow the charger?ÿto be?ÿleft permanently connected to the battery?ÿfor unattended automatic charging. - Adaptive battery management: Automatically adapts and optimises the charging process?ÿrelative to how the battery is used. This adaptive ability also limits corrosion within the battery by reducing time spent in the absorption stage when possible (e.g. when charging a battery which is already nearly fully charged). - Continued charging during battery use: Operates even while energy is being drawn from the battery during use.?ÿThe unit will maintain the charge if the battery is already at full capacity. - Power?ÿsupply function: Can provide a direct ?ÿpower supply ?ÿto a 12V load even when no battery is?ÿconnected. - Dead battery recovery: The charger will attempt to recharge a deeply-discharged battery (will start charging?ÿwhen a battery is at 0V) at a low current. As soon as the sufficient?ÿbattery voltage is reached, normal charging will resume. - Silent night mode: By selecting either the?ÿ'night' or low' mode, the output current is reduced to max 50% of the nominal output and the charger enters a silent operation mode. - Storage Mode: Designed to prevent ageing of the battery when it is not in use. This mode is enabled whenever the battery has not been discharged for 24 hours. Storage mode minimises gassing and corrosion within the battery and prevents other major causes of early battery failure, including sulphation. - Bluetooth connectivity: Enables the user to remotely program settings (set battery type or charging current),?ÿmonitor data (battery voltage, charge current, and charging cycle status) and download updates for?ÿthe system via any Bluetooth-enabled device, using the free VictronConnect App. ?ÿAlternatively, you can connect the unit to a PC/Laptop to access the free VictronConnect software to program settings (requires VE.Direct to USB cable sold separately). - Inbuilt temperature sensor: Measures the ambient temperature and automatically compensates for temperature when charging lead-acid batteries. - Charging status LEDs: 11 LED lights on the front panel indicate the current charging stage (night, bulk, absorption, float, storage) and the charging mode (normal, high, recondition, Lithium). This charger?ÿis fitted with?ÿa?ÿ 1.5m mains AC cable with?ÿa UK 3-pin plug . Click on the 'Details and Specifications tab for more information about this product. Specifications: ?ÿ Operating Voltage range (AC): 180V - 265V DC output current ('normal' mode): 30A DC output current ('night' or 'low' mode): 15A DC output voltage: 12V Minimum battery capacity ('normal' mode): 60Ah Minimum battery capacity ('night' or 'low' mode): 30Ah Absorption charging voltage: 14.2V - 14.7V DC (depending on the battery type) Float charging voltage: 13.5V - 13.8V (depending on the battery type) Minimum battery voltage: starts charging at 0V ('dead battery') Efficiency: 93% Standby power consumption: 0.5W Operating temperature range: -20?øC?ÿto 50?øC Humidity (non-condensing): Max 95% Temperature compensation: 16mV/?øC Cooling: low rpm (silent) fan Protection: IP22 (indoor use) Dimensions:?ÿ235 x?ÿ108 x?ÿ65 mm Weight: 1.3 kg This product is covered by a ?ÿ5 year ?ÿmanufacturer warranty . Full?ÿdetails explaining wiring and operations?ÿcan be found in the user manual supplied with this product (see Documents tab). If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone Below is a video explaining how to connect a Blue Smart charger to the VictronConnect app via the inbuilt Bluetooth: The following documents are available to download: User manual for Victron 30A Blue Smart IP22 Mains Battery Charger (VBC1230) Datasheet for Victron 30A Blue Smart IP22 Mains Battery Charger (VBC1230)
