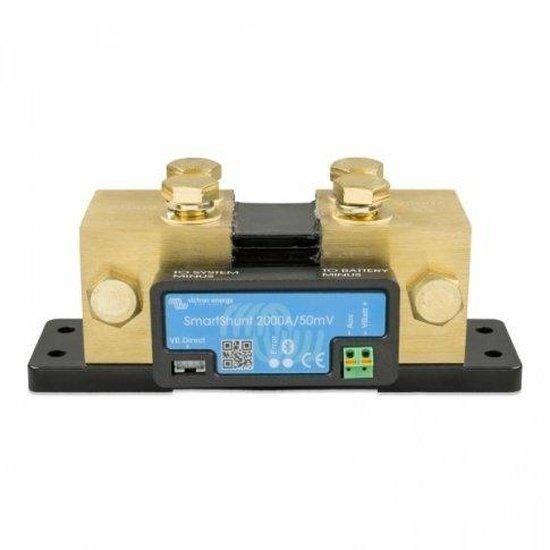

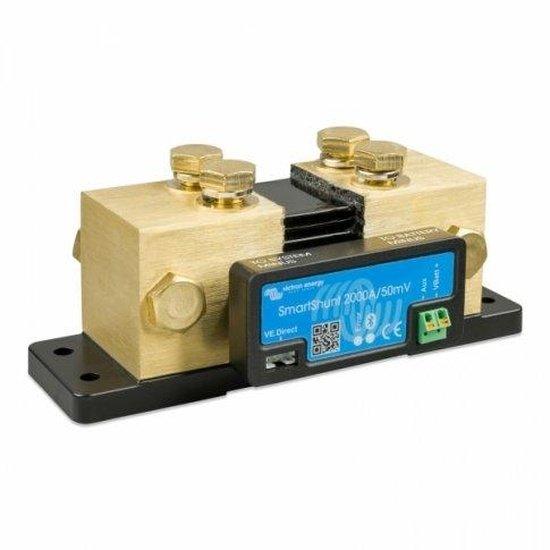

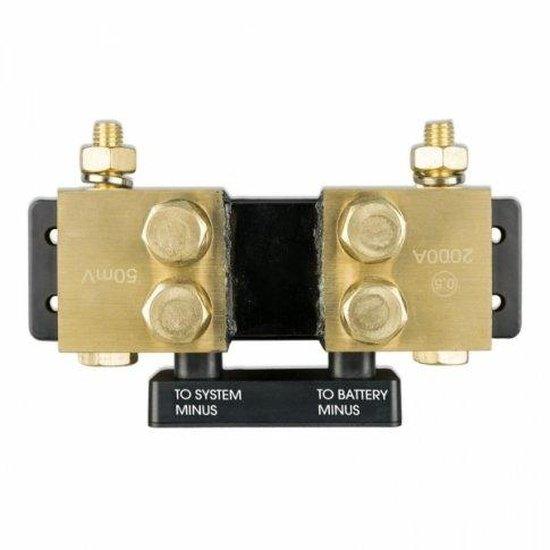

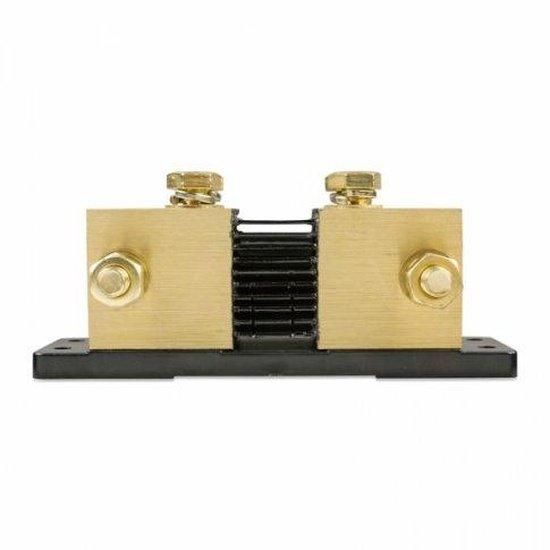

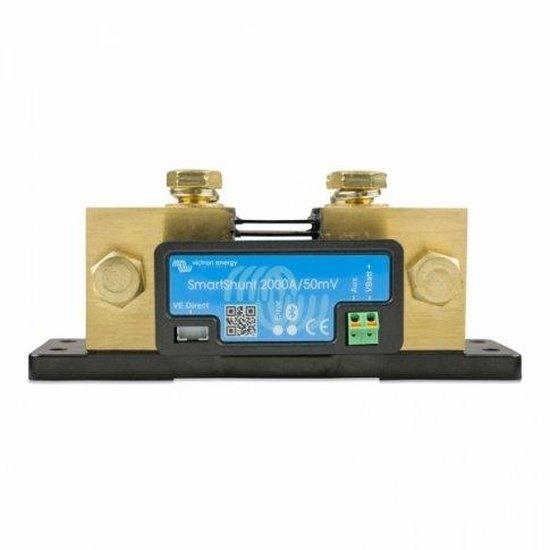

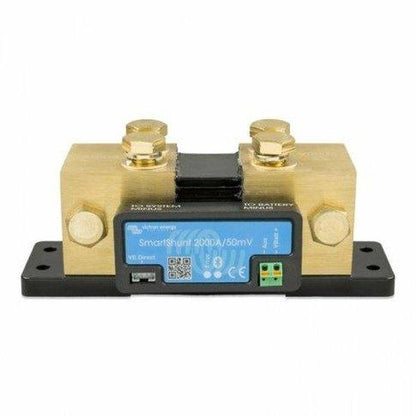

Victron 2000A 12V/24V/48V Battery Monitoring SmartShunt with Inbuilt Bluetooth

Photonic Universe is an official distributor of products from Victron Energy - the?ÿglobally renowned manufacturer of high-quality?ÿhybrid power electronics. Victron Energy products have a longstanding reputation for their outstanding reliability, innovative design and superior build quality. This Victron 2000A VS series SmartShunt uses a high-precision battery shunt designed to expertly measure?ÿvital charging and performance?ÿdata for?ÿyour batteries. This smart model features additional advanced functions such as Bluetooth communication ability, a secondary?ÿinput for?ÿoptional monitoring of an auxiliary battery bank, and an extremely low current draw from the battery bank (0.7Ah per month for a 12V system).?ÿStatistics such as battery voltage, charge / discharge current as energy flows in to and out of the battery, Amp Hours consumed, state of charge and time-to-go?ÿcan be viewed and the settings can be programmed using the inbuilt Bluetooth via any Bluetooth-enabled mobile device, such as a smartphone or tablet. Battery data The SmartShunt?ÿmeasures?ÿthe vital parameters relating to the battery condition and the energy it receives?ÿ/ provides,?ÿand transmits this information?ÿvia Bluetooth, where it can be viewed by the user (and where settings can be amended if necessary). This information includes: Battery voltage: Displayed for the main battery / battery bank, and also for an optional auxiliary battery which can be connected via the secondary input. Battery midpoint voltage monitoring:?ÿ For battery banks constructed of several individual batteries, the SmartShunt is able to maintain balance by taking the voltage measurements from the midpoint within the bank, and if the voltage deviates from this point of balance, an alarm will be generated. For such battery banks, the voltage value is also displayed for the battery bank as a whole, and additionally, for the 'top section' and 'bottom section' (i.e. 1st half and 2nd half) of the battery bank. Battery state of charge: Indicated as a percentage value from 0-100%. Battery charging / discharging current and power:?ÿ The current?ÿ(A) and power (W)?ÿflowing out of the battery (load consumption)?ÿare displayed as negative values,?ÿwhile the current and power?ÿflowing into the battery?ÿare?ÿdisplayed as positive values. Battery temperature: The SmartShunt can be connected to an optional Victron battery temperature sensor (sold separately). This temperature measurement can be used to adjust available battery capacity as the temperature varies. An alarm will be activated when battery?ÿtemperature falls outside of the safe range. Amp hours consumed: For example, if 12A is drawn from a fully charged battery during a period of 3 hours, the app will show -36.0Ah consumed by the battery. Time-to-go:?ÿ The SmartShunt is able to?ÿestimate the?ÿapproximate length of time that the battery will continue to support the current load, before?ÿthe battery?ÿrequires re-charging.?ÿ An in-depth?ÿ data?ÿlog also records historical data?ÿto enable the user to evaluate usage patterns and determine overall battery health. This includes values such as?ÿthe highest/ lowest recorded voltages (for the main battery and auxiliary battery), deepest recorded discharge,?ÿtime since last?ÿfull discharge, cumulative Amp hours drawn, time since last full charge, total energy charged/discharged and many more. Customisation The user can set high/low thresholds for battery voltage (either battery), battery state of charge (main battery) or the battery temperature (additional sensor required). If any of the above parameters fall outside of this specified range, the battery shunt?ÿwill activate an alarm on the connected mobile app. Advanced communication This smart battery monitor features inbuilt Bluetooth, enabling the user to wirelessly connect their mobile device to the monitor. Then, using the VictronConnect App ?ÿon a smartphone or tablet, you will unlock?ÿnumerous possibilities for?ÿadvanced programming and remote monitoring of your battery system. A wide range of?ÿfeatures are made available, including real-time data transmission, as well as the option to amend battery storage information, program alarms,?ÿand set up or join an existing VE.Smart network. Alternatively, the VE Direct USB cable can be used to establish a connection to a non-Bluetooth-enabled PC/laptop. The VictronConnect app is compatible with?ÿmost mobile devices and computers, including Android and iOS smartphones, tablets, iPads, MacBooks, Windows PCs/laptops. Compatibility This SmartShunt is suitable for use with any?ÿ12V, 24V or 48V?ÿLead Acid / Gel / AGM / Lithium battery or battery bank. The maximum admissible nominal?ÿcurrent?ÿthrough this device?ÿusing the supplied shunt is 2000A. Additional items The shunt is also supplied with 2 x 1.5m positive supply cables with a fuse?ÿ to connect the battery shunt to?ÿup to?ÿtwo battery banks. Click on the Details and specifications tab for more information about this product. System Specifications: Nominal battery voltage: 12V / 24V / 48V Supply voltage range: 6.5 - 70V Input voltage range (Auxiliary battery): 6.5 - 70V Supply current: 1mA (12V) / 0.8mA (24V) Input current range: -2000A to +2000A Operating temperature range: -40?øC to +50?øC Voltage measurement accuracy: ?ñ0.3% Current measurement accuracy: ?ñ0.4% Dimensions: 120 x 68 x 76 mm Weight: 2125g Standards: Safety: EN 60335-1 Emission/ Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 Automotive: EN 50498 Additional items: 2x Positive supply cables: 1.5m length Optional additional temperature sensor (not included): Victron product code ASS000100000 This product is covered by a ?ÿ5 year manufacturer warranty .?ÿ Click on the Installation tab for further instructions. This unit comes with a detailed user manual which explains connection and operations. A basic installation guide is also?ÿavailable to download in the 'Documents' tab. Please note: the shunt should be connected on the negative battery wire, close to the battery. The following video provides a brief?ÿintroduction to?ÿthe SmartShunt: https://www.youtube.com/watch?v=0HG4GiH9su8 If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone. The following documents are available to download: User manual for Victron 2000A 12V/ 24V/ 48V SmartShunt (VS2000S) Datasheet for Victron 2000A 12V/ 24V/ 48V SmartShunt (VS2000S)
