Product Details

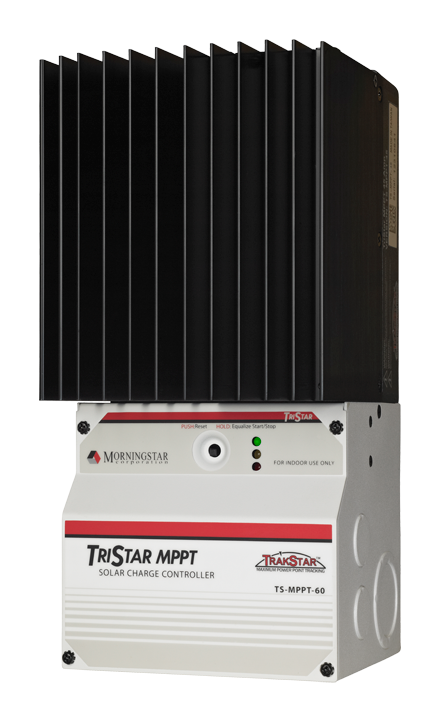

The industry-leading TriStar MPPT with TrakStar Technology is an advanced maximum power point tracking controller for larger off-grid photovoltaic (PV) energy systems up to 4.2kWp. An iconic design, TriStars have been proven in solar installations around the globe and remain the first choice for designers of mission-critical systems where failure is not an option.
Extremely high reliability due to robust thermal design, conformally coated printed circuit boards and extensive electronic protections inc.: overload; short circuit; high voltage; high temperature; lightning & transient surges; nightime reverse current. Peak efficiency of 99% using TrakStar MPPT Technology to maximise the PV energy harvest by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve.
Can be used with solar arrays with a maximum open circuit voltage of 150 VDC and battery systems of 12, 24, 36 or 48 VDC.
Capable of continuous operation at full power at up to 45øC without need to de-rate. Remote temperature sensor is included and optional displays are available. The TS-MPPT-60 includes on-board Ethernet interface & up to 200 days of data logging.
Optional LCD digital backlit display (included with -M version) provides system & controller information: battery voltage; current; temperature; amp-hours and error mode. Versions mount either on face of the controller or remotely.
Traditional PWM vs TrakStar MPPT
- 5 year warranty
