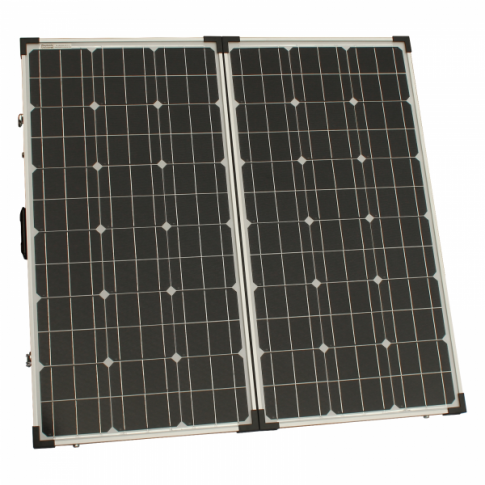

Product Details
This high quality, waterproof 150W folding solar panel is designed to provide free power for charging 12V/24V batteries, for example in vehicles and boats (motorhome, caravan, camper, narrow boat, yacht etc) or any other system with a 12V/24V battery or battery bank. This is the ideal solution for experiencing the benefits of solar without the permanency of a mounted solar panel, as this panel can be folded and stored away when not in use.
This High efficiency 150W (75W+75W) 12V/24V folding monocrystalline solar panel comes with:
- Adjustable aluminium stand, handle and latches
- 5m solar cable
- Storage / protective case
The folding solar panel has several important features which make it a truly unique, premium quality product:
- The solar panel is completely waterproof, so the unit can be used in all weather conditions
- The high efficiency (75W + 75W) monocrystalline solar panels are made of high quality solar cells
-
The storage bag is not just a dust cover – it includes a layer of foam for added protection
This folding solar panel is supplied without a solar charge controller, to offer the flexibility to choose the controller best suited to your application. You can use your existing solar charge controller with this panel or it can be paired with any of our solar charge controllers. We offer a wide range of controllers; with features including LCD displays, MPPT/ Dual Battery/ Buck-Boost capability, mobile app connectivity and more - providing you with increased control over your system. This folding panel also allows you to remotely mount a solar charge controller in a convenient location for easy monitoring and quick access. This folding panel can be easily connected to one or more similar folding panels if necessary. The entire system can then be connected through a larger solar charge controller to increase the energy yield. Please note this panel comes pre-wired for a 12V battery connection and will require re-wiring for 24V. Alternatively a buck boost solar charge controller can be used.
The folding solar panel comes with 5m (bare ended) solar cable to connect the panel to your choice of solar charge controller. The design incorporates a stand which is easy to set up and adjust, while the handle and latches ensure ease of storage and portability. The storage case included with the panel is made with a layer of foam which provides protection for the glass and the frame, and prevents any accidental damage. In addition to this, the solar panels’ corners are protected by plastic shields, which reduce the risk of damage.
Click on the Details and Specifications tab for more information about this product.
Solar panel specifications:
- Peak power: 150W
- Maximum power voltage: 17.5V
- Maximum power current: 8.32A (2 x 4.16A)
- Open circuit voltage: 21.6V
- Short circuit current: 9.0A (2 x 4.5A)
- Power allowance: +/- 3%
- Dimensions: 51 x 101 x 7 cm (folded)
- Weight: 15kg
This product is covered by a 1 year workmanship warranty. For more information please refer to our Terms and Conditions.
In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.
This solar panel is not supplied with a user manual. A detailed user manual will be provided with your chosen solar charge controller.
If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
