Product Details

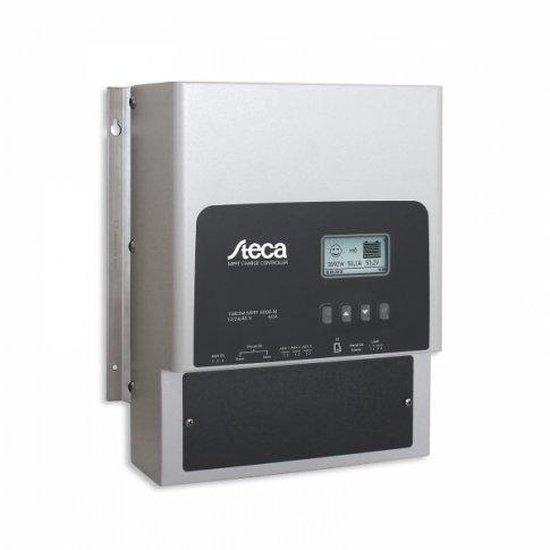

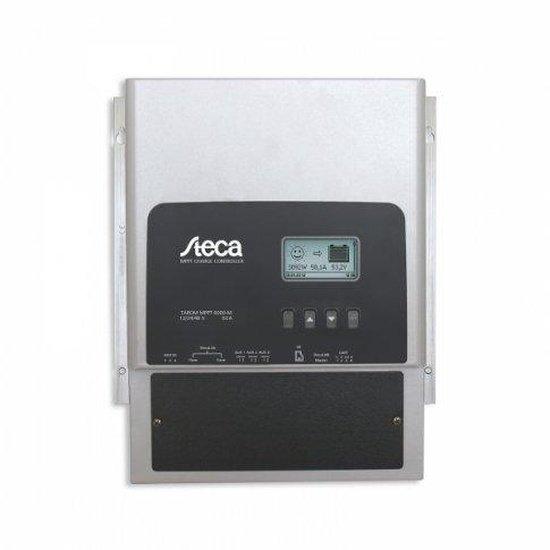

We are proud?ÿto offer this advanced controller?ÿfrom?ÿSteca Electronik;?ÿthe?ÿglobal leader in off-grid solar electronics. All Steca controllers are able to?ÿcontrol the entire energy flow in any power system, whilst ensuring optimal battery maintenance. German design, engineering and manufacturing ensure unrivalled standards of quality and efficiency. This Steca Tarom M-Type 60A?ÿMPPT charge controller sets unprecedented standards in the field of Maximum Power Point?ÿtrackers. Due to its continued outstanding achievements in the solar industry, it?ÿwas awarded the renowned OTTI Innovation Prize and the Intersolar Award in 2014. With two independent MPP trackers and two solar inputs , this MPPT controller can easily handle two different solar module arrays of varying sizes. The controller is designed to protect batteries whilst charging them,?ÿproviding automatic cut off to prevent over-charging and deep discharge. It comes with an automatic electronic fuse and a?ÿ full range of electronic protection functions , including protection against: overload, short circuit, high voltage, reverse polarity, high temperature, lightning and transient surges, reverse current at night. This M-Type model?ÿhas the ability to communicate with up to 22 Steca Tarom MPPT S-Type ?ÿcontrollers in one network (connected to the same battery bank),?ÿoffering possibilities for system expansion at a later date. When multiple S-type controllers are connected, this controller will intelligently synchronise their actions and charging stages to ensure that a safe and stable voltage is maintained accross the entire system, regardless of varying cable lengths. Other key features include: Extremely high reliability, with an integrated self-test function?ÿand a?ÿlong 5 year warranty Unique MPP trackers which work constantly at?ÿhigh efficiency ratings of up to 99% Compatible with lead-acid, lithium-ion or NiCd batteries, with personalised?ÿsettings for each type Automatic?ÿdata logging of energy values for 20 years, with a MicroSD slot for logging of detailed values Intelligent output terminals (can?ÿbe programmed for load management, e.g. to?ÿactivate a generator when the battery is low or to divert excess energy to an electrical appliance) Programmable current limiting function which allows the input current to be limited to a specific value (e.g. for temporary charging of a smaller battery bank) Easy to use LCD?ÿdisplay This solar charge?ÿcontroller is suitable for solar panels with a?ÿ maximum power of up to 850W (12V battery bank), 1700W (24V battery bank) or 3400W (48V battery bank) ?ÿand?ÿis?ÿalso compatible with?ÿ 36V or 60V batteries by activating advanced settings in the expert menu. Click on the?ÿDetails and Specifications tab for more information about this product. Controller specifications: Nominal battery voltage: 12V / 24V / 48V Rated charging current: 60A Solar input voltage up to 200V and power up to 3.4kW 3 pairs of?ÿterminals (two solar inputs, battery) MicroSD slot for advanced data logging Graphical LCD display Max. DC-DC efficiency: 99.4% (Ubatt=48 V; Uin=70 V; P=0.65*Pnom) MPP efficiency: 99.9% (static), 99.8% (dynamic) Minimum voltage to operate: 9.5V Self-consumption: < 2W Working temperature: -25?øC to +50?øC Enclosure: IP31 (indoor) Size:?ÿ294 x?ÿ335 x?ÿ130 mm Weight:?ÿ6.3 kg Mounting holes for ease of installation This product is covered by ?ÿ a 5 year warranty . This product comes with an instruction manual (see the 'Documents' tab)?ÿwhich explains connections and operations. If you need help with installation or have any technical questions we can provide FREE?ÿsupport - please contact us by email or phone. The following documents are available to download: Data sheet for Steca Tarom 60A MPPT solar controller (M-Type) Instruction manual for Steca Tarom 60A MPPT solar controller (M-Type)
