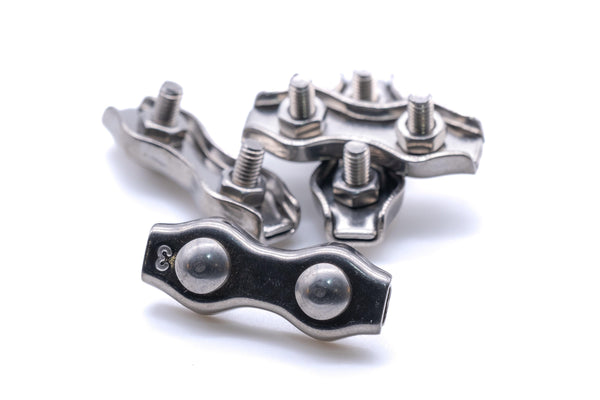

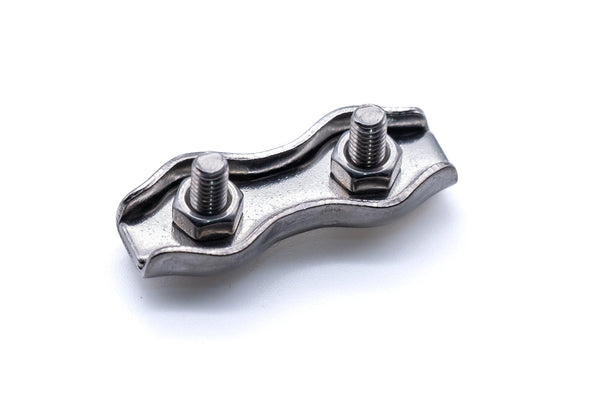

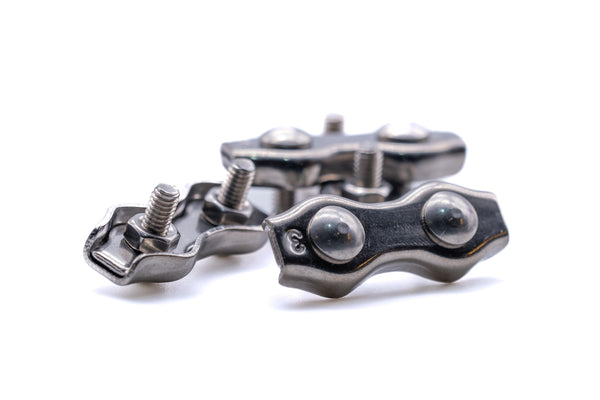

Wire rope clamps made from marine grade 316 A4 stainless steel
Note: Simplex and Duplex clamps 3mm or over are only to be used with 7x19 wire. 7x7 wire is not flexible enough
( If using 3mm - 5mm 7x7 wire rope I would advise just using the standard wire clamps (U shape) with this, or you can go a duplex or simplex clamp size higher than your rope, makes fitting much easier )

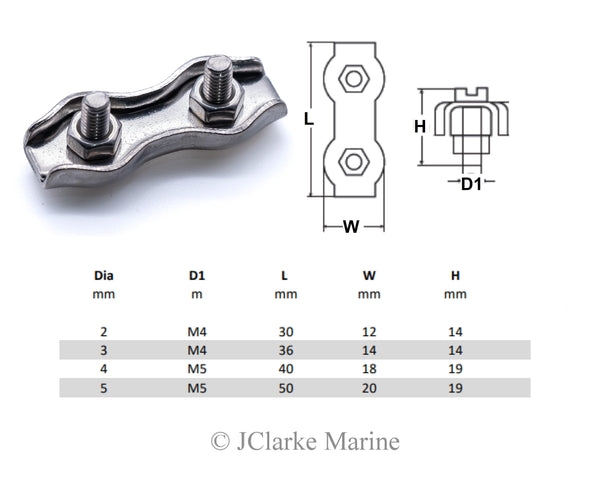

2mm Duplex
L - 30mm
B - 12mm
3mm Duplex
L - 36mm
B - 14mm
4mm Duplex
L - 40mm
B - 18mm
Thread - M5
5mm Duplex
L - 50mm
B - 20mm
Note: Simplex and Duplex clamps 3mm or over are only to be used with 7x19 wire. 7x7 wire is not flexible enough
( If using 3mm - 5mm 7x7 wire rope I would advise just using the standard wire clamps (U shape) with this, or you can go a duplex or simplex clamp size higher than your rope, makes fitting much easier )
2mm Duplex
L - 30mm
B - 12mm
Thread - M4
3mm Duplex
L - 36mm
B - 14mm
Thread - M4
4mm Duplex
L - 40mm
B - 18mm
Thread - M5
5mm Duplex
L - 50mm
B - 20mm
Thread - M5
