Product Details

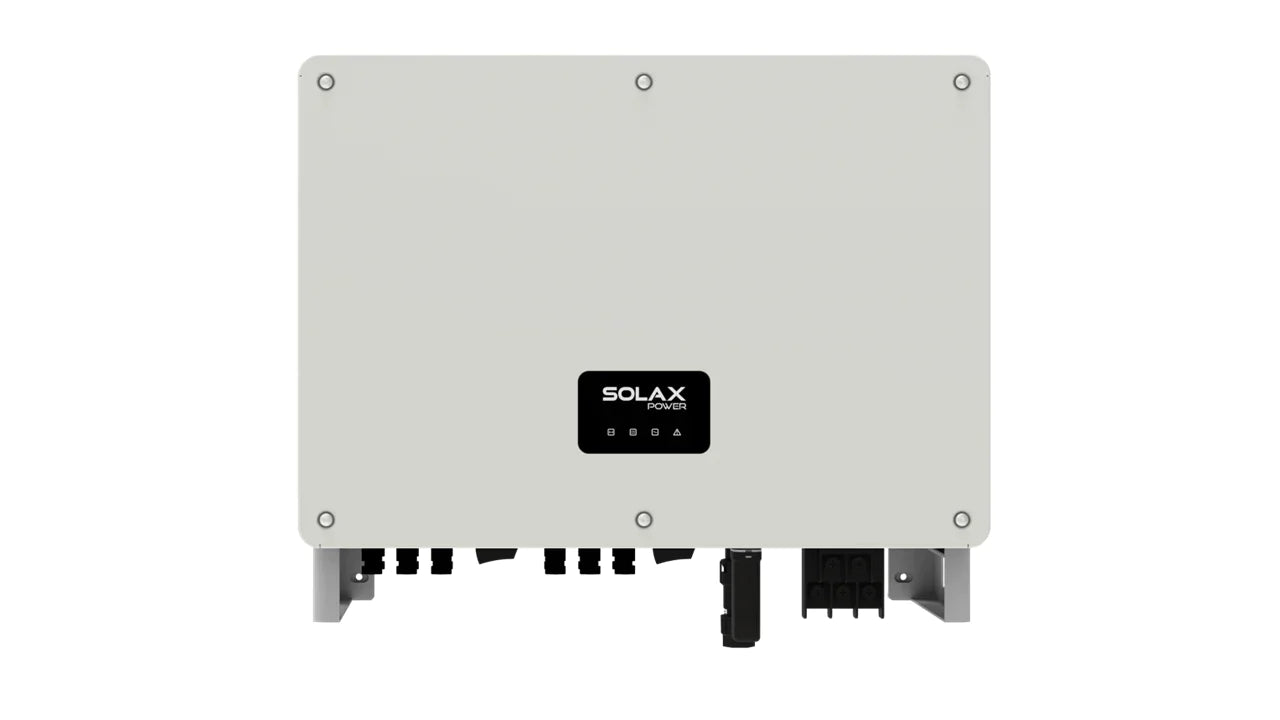

This three-phase inverter produces a maximum power output of 60kW, making it a reliable option for various applications.
#1: X3-MEGA-60K
Superior Efficiency
- Max efficiency 98.3%, European efficiency 98.0%
- 4 independent MPPTs
- ECO Invention patent technology
High Reliability
- Top-ranking high quality components
- Integrated type II DC &AC surge arresters
Intelligent Maintenance
- Intelligent monitoring via APP & Web
- Multiple-string monitoring for easy trouble shooting (Optional)
Excellent Grid Compatibility
- Advanced grid impedance algorithm for large-scale power stations
- Active power/reactive power control option (Remotely)
Weight: 67 kg
Rated Power: 60,000 W
Min PPT Voltage: 200 V
Max PPT Voltage: 960 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 200 V
Max Input Voltage: 1,000 V
Max DC Power: 78,000 W
Max AC Power (5 Minutes): 60,000 W
Surge AC Power (1 Second): 60,000 W
Max DC Current: 156 A
Max DC Inputs: 4
Has DC Fuses: 0
Connector: MC4
Included Connectors: 2
Euro Efficiency: 98 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: No
Warranty: 5 years
