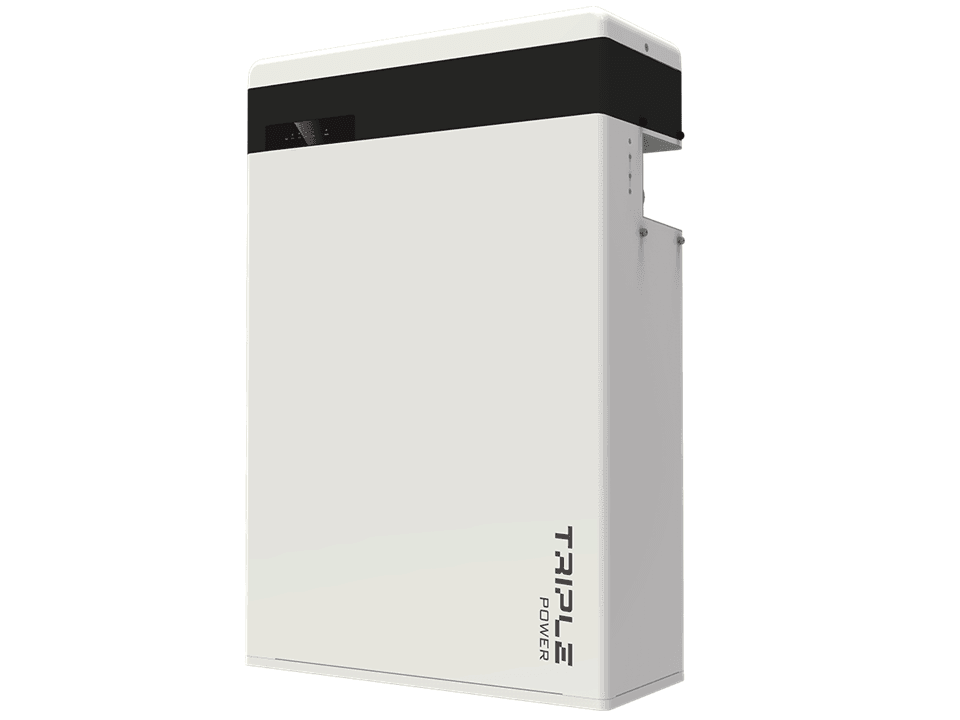

SolaX V2 Triple Power HV 5.8kWh LFP Extension Battery SLAVE

SolaX V2 Triple Power HV 5.8kWh LFP Extension Battery SLAVE

#1: HV11550-58-SLAVE-V2 Storage Systems - Lion Battery Pack

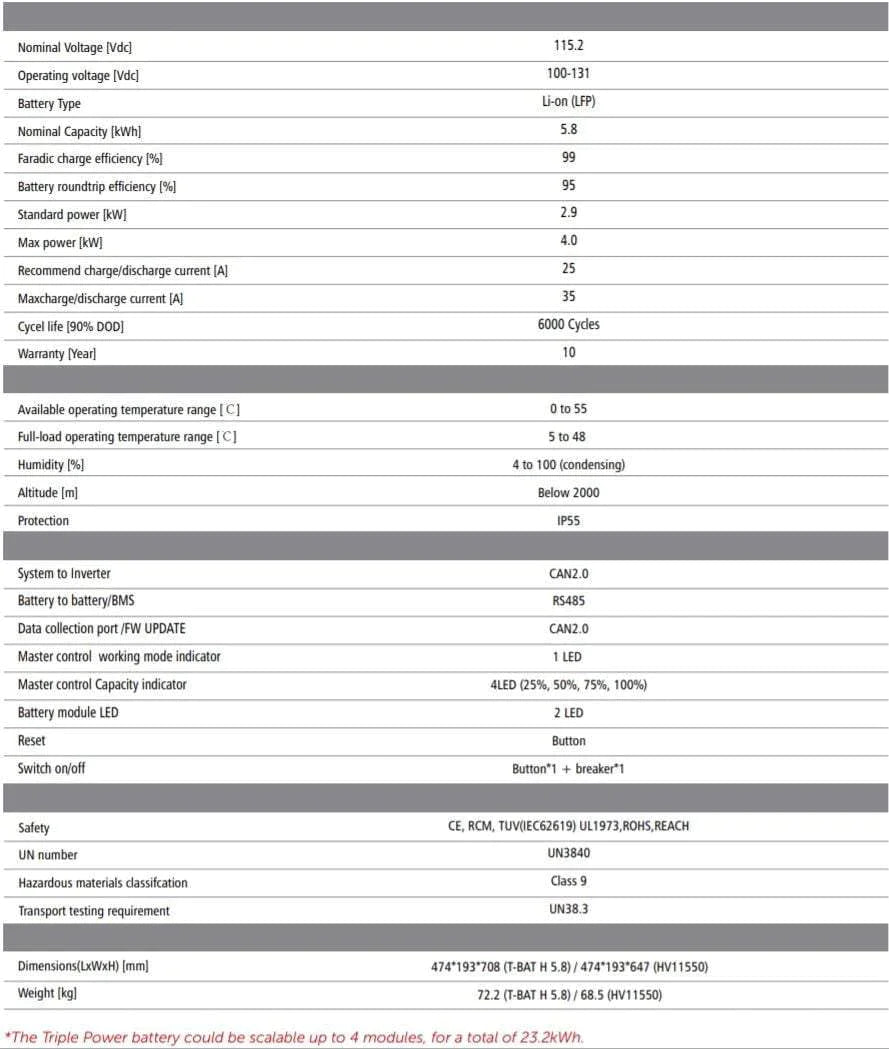

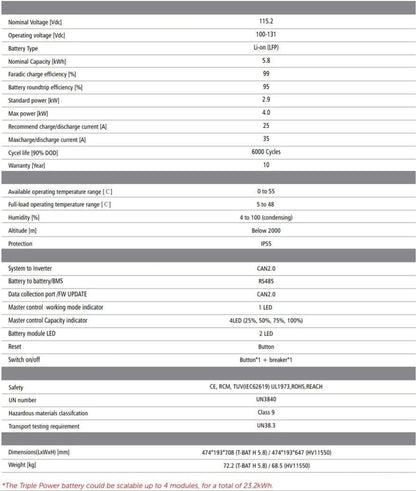

SolaX V2 Datasheet

SolaX V2 Installation Manual

SolaX V2 Warranty



V2 batteries confirmed to be compatible with V1 slave batteries

 Solax Triple Power LFP Extension Battery (Slave) HV11550-58

The perfect match to X1-Hybrid, X3-Hybrid and X1-AC, the SolaX Triple Power LFP battery is available as Master Battery 5.8kWh and Slave Battery 5.8kWh. Each Master can be installed with up 3 Slave batteries in series (charger dependent) for up to 23.2kWh storage capacity.

Please note: Only 1 or 2 Slave batteries can be used with 1x Master in a single-phase system (Maximum 3 batteries in total) and 2 or 3 Slave batteries can be used with 1x Master in a three-phase system (Maximum 4 batteries in total).

- Additional features:
- Scalable to 23.2kWh
- Up to 4kW charge/discharge
- High Voltage means thinner cables are required.
- Compact Design
- 90% Depth of discharge
- 6000 life cycles
- Easy installation – plug and play with all cables supplied

Triple Power LFP 5.8kWh Slave batteries can only be matched with LFP 5.8kWh Master batteries. They are NOT compatible with Generation 1 or 2 BMS or Batteries!

Solax LFP 5.8kWh batteries will initially arrive with Blue TOP. This will change to Black TOP at some point in the near future.

Please note this is a HV11550-58 Extension (Slave) Battery only, it requires HV-T-BAT-H-58 Main Battery(Master) to work.
