Product Details

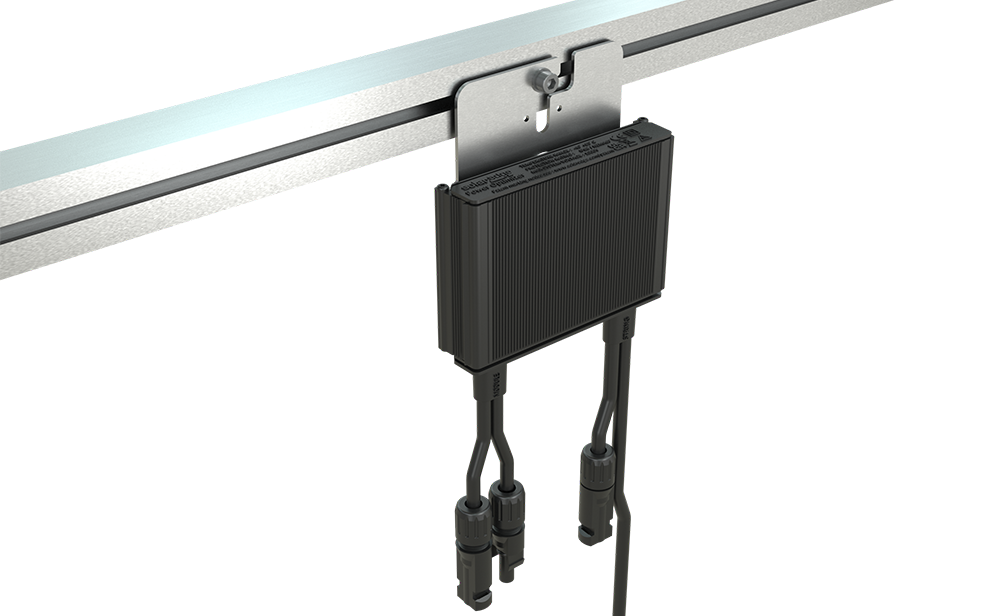

Connected by installers to the PV module and compatible with a wide range of modules
Key features
- 25 year warranty
- Gain up to 25% more energy
- 99.5% efficient
- Removes all mismatch-losses - from manufacturing tolerances to partial shading
- Flexible system design - different panels and orientations can be utilised
- Module level monitoring
- SafeDCTM - 1V per optimiser whenever the inverter or grid is shut down
- Safety for installers and firefighters
The S-Series further strengthens PV safety technology, setting a new benchmark for arc detection and prevention with SolarEdge Sense Connect (available from 2022 via firmware upgrade). With an improved cable layout they are future-proofed to meet evolving PV module requirements.
|
Power Optimizer Model |
Module Power (1) | Module Voc | Typical Module Compatibility |
| S440 |
ó440W | ó60V | 60-cell, 72-cell and bi-facial modules |
| S500 | ó500W | ó60V | 60-cell, 72-cell and bi-facial modules |
| S500B |
ó500W | ó125V | 60-cell, 72 cell and bi-facial modules |
(1) Rated STC power of the module. Module of up to +5% power tolerance allowed.
