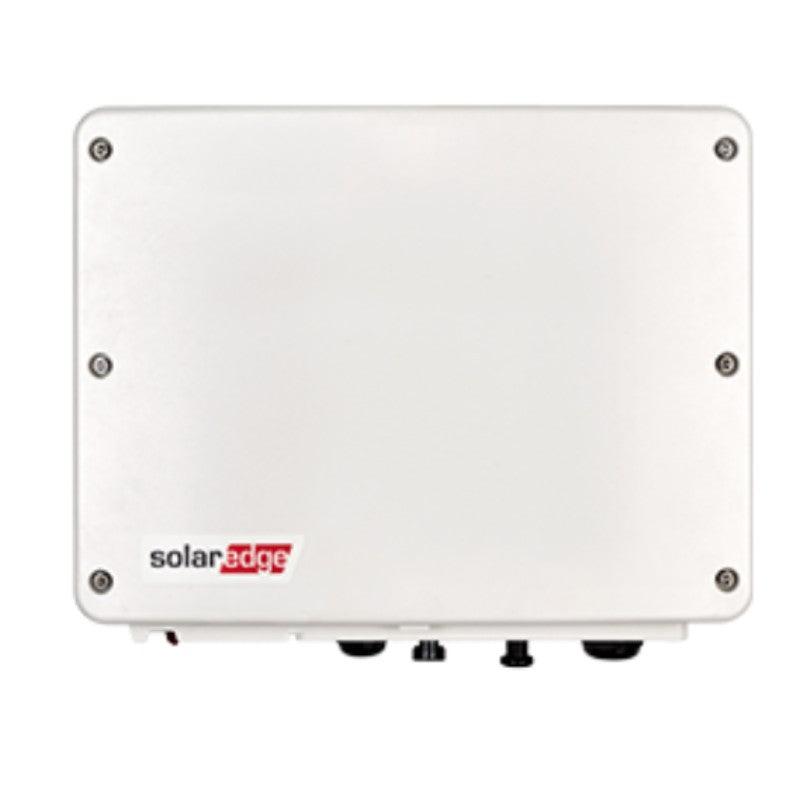

SolarEdge 5000W 1ph Home-Wave Inverter (Net Inverter)

Regular price £1,199.00 Sale

per
Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU:

  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping
  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

    The Net Home-Wave Inverter Contains an extra 'plug-in slot' for both the E-NET card and either ZigBee or GSM.

    The SolarEdge Home-Wave Inverter uses HD-Wave technology to provide an optimised installation. This is the 5000W version and maintains all of the key characteristics of the previous screenless SetAPP inverter whilst containing an extra 'plug-in slot' for both the E-NET card and ZigBee/GSM card.

    Marked as a milestone in inverter technology, the award winning HD-Wave technology is a record-breaker in efficiency tests.

    Small, light, efficient and superbly reliable – SolarEdge’s single phase inverters with innovative HD-Wave technology are now a firm favourite for installers and end-customers alike.

    SolarEdge inverters will only work with power optimisers, which control module-level Maximum Power Point Tracking and voltage management. This means that the inverter is only responsible for DC to AC inversion – this is the secret of the HD-Wave technology. It uses smaller, lighter and more reliable thin film capacitors, allowing SolarEdge to rid most of the heavy metal parts from the inverter.

    Commissioning requires using SolarEdges' SetApp on your mobile device.

    AC attributes
    Max power: 5000W
    Max current: 23A
    Number of phases: 1
    DC attributes
    Number of MPPT Not applicable
    V range of MPPT Not applicable
    Max power 10000W
    Max current 13.5A
    Max voltage 480V
    Start up voltage Not applicable
    System
    Efficiency 99.2%
    IP rating IP65
    Built in protection Arc fault/Safe DC
    Export limitations Possible using meter
    Weight 9kg
    Dimensions 280x370x142mm
    Communication Ethernet, RS485, (Wifi, Zigbee, cellular optional)
    Warranty (extensions) 12 years (20 or 25 years extensions available)
    Key features
    Superior efficiency
    Lightweight
    Oversizing up to 200% possible
    Indoor or outdoor installation

    SolarEdge have a system design tool, available hereChecking the status of a SolarEdge products warranty can be done here.
