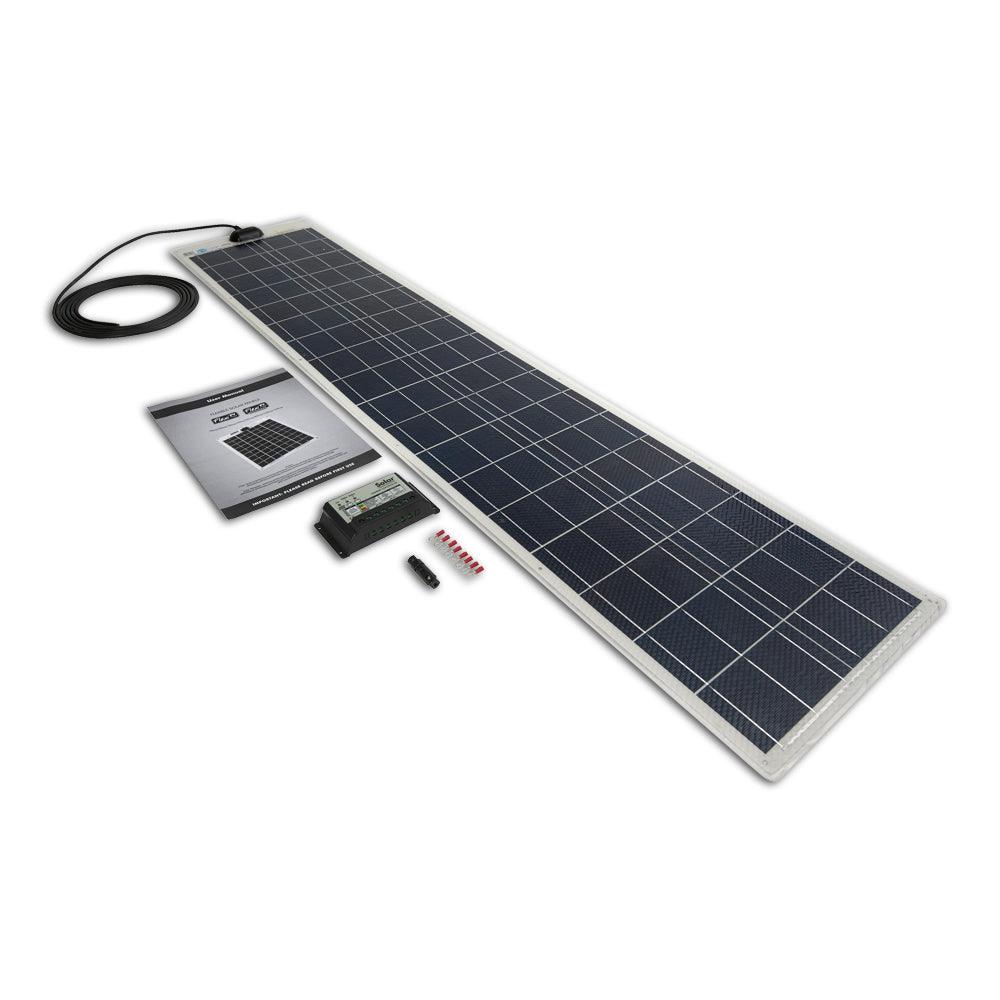

Solar Technology 60W Flexi Solar Panel Kit & 10Ah Charge Controller

Regular price £377.60 £302.10

Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU: 751-STPVF060MA

  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping
  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

    STPVF060 60W Flexible Solar Panel

    • Power: 60W
    • Size: 1450 x 315 x 4mm
    • Weight: 3Kg
    • Amp hours per day (A): 20.22
    • Charge Controller: 10Ah
    • Vmp (VDC): 17.8
    • Imp (A): 3.37
    • Voc (V): 22.1
    • Isc (A): 3.64

    STCC10 10A Dual Battery Charge Controller

    • Nominal System Voltage: 12/24VDC (automatic system voltage recognition)
    • Battery Voltage Range: 6-36V
    • Rated Battery Current: 10A
    • Over Voltage Disconnect Voltage: 16V/32V
    • Charging Limit Voltage: 14.6V/29.2V
    • Equalize Charging Voltage: 14.6V/29.2V
    • Float Charging Voltage: 13.8/27.2V
    • Operating temperature: -35oC to +55oC
    • Overall dimensions: 135 x 70 x 35mm
    • Terminal size: 6mm2
    • Net weight: 155g
    <a class=\"pagebuilder-button-primary\" href=\"\" target=\"_blank\" style=\"text-align: center; font-weight: normal;\"> <i class=\"fas fa-file-alt\"></i> <span data-element=\"link_text\" style=\"font-weight: 600;\"> Datasheet</span> </a>

    Benefit from the semi-flexible panel\'s self-healing top surface

    The ETFE top layer gives the PV Logic flexi extra resilience in really tough conditions. ETFE has a memory effect or self-healing capacity in the event the panel comes into contact with branches etc thus ensuring any slight abrasions are ‘healed’ within a few hours. The flexi range can even be walked on with soft deck shoes! During production the ETFE is dimpled to further protect the panel and provide an anti-slip surface particularly useful if the panel is fitted to a boat deck.

    Completely waterproof

    Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon guaranteeing no water ingress.

    Cells protected from hot spots

    Where used on a camper van or boat partial shading of a solar panel is typical. In these circumstances heat build-up and damaging hot spots can occur leading to a significantly reduced life cycle of the panel. The larger 60w and above PV Logic flexi panels have up to two shading diodes housed within the fully waterproof junction box to prevent this occurrence.

    Superior design

    There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.

    Includes 10A Dual Battery Charge Controller

    This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems.

    The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.

    • Reverse current protection.
    • Unique dual battery charging function.
    • Efficient Series PWM charging increases battery lifetime and improves solar system performance.
    • 12/24V automatic recognition.
    • Overload protection
    • Open circuit protection
    • Lightning surge protection
    • Deep discharge protection
    • Charge current protection up to 10A

    Easy fix

    The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium metal GRP and fibreglass using Simson ISR 70-03. The aluminium layer is also pre-drilled with 4.5mm holes should the panel need to be mechanically fixed as well as or instead of bonding. For more information about what sets the PV Logic Flexi range apart from other panels click here.

    Installation method

    Please only use the glue pattern below (this is covered in more detail in the instructions) which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.
