Solar panel mounting set with corner brackets, side brackets and a waterproof cable gland

Regular price £54.99 Sale

per
Tax included. Shipping calculated at checkout.

Availability: Available Unavailable

Product SKU: SET_BR

  • Exchange or Return within 30 days of a delivery
  • 100% quality Guaranteed Plus Fast & Secure Shipping
  • Stock levels may vary and change frequently. If a product appears to be in stock, it may have already sold out. For any questions regarding availability, please contact us. We appreciate your understanding.
  • Product Details

    This is a solar panel mounting set for fixing solar panels to vehicles, boats and other flat roofs and surfaces.

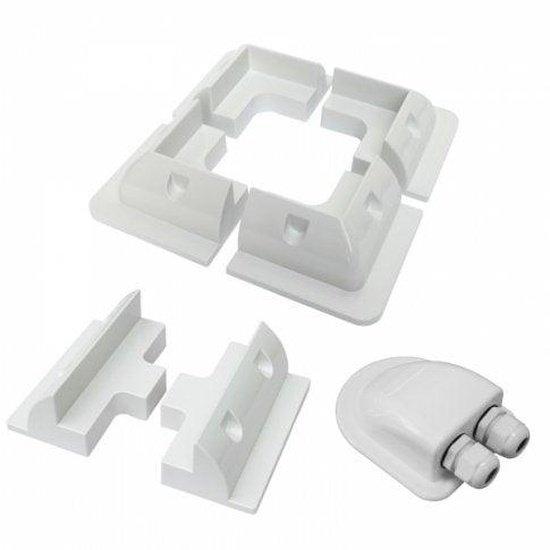

    The set includes:

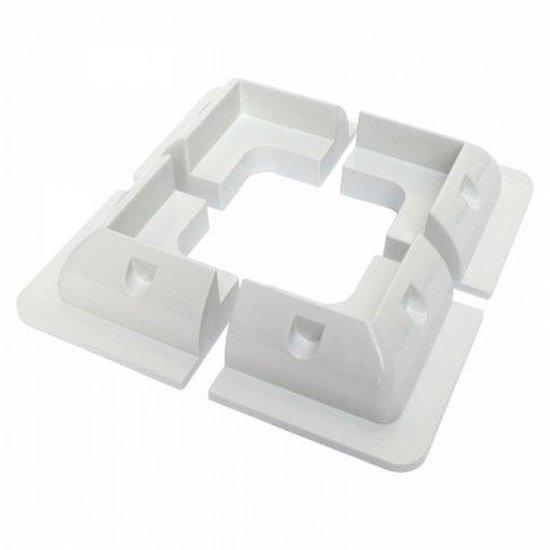

    • 4 plastic corner brackets

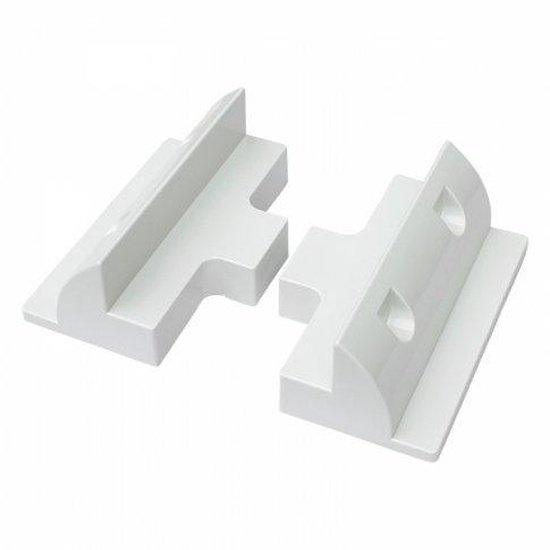

    • 2 side brackets

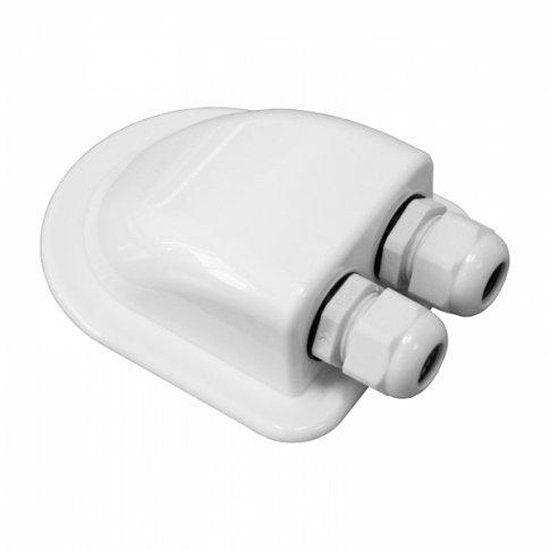

    • A waterproof double entry cable gland

    This set is ideal for all Photonic Universe rigid frame solar panels and is suitable for most other rigid frame solar panels with a round profile cable.

    Click on the Details and Specifications tab for more information.

    Specifications:

    - Material: plastic
    - Colour: white
    - Cable diameter for the cable gland: 3-7mm

    - Dimensions:

    • Corner brackets (each): 15 x 15 x 6.5 cm
    • Side brackets (each): 18 x 9 x 6.5 cm
    • Cable gland: 11 x 9 x 4 cm
    • Combined weight: 2.7kg

    Installation is easy: holes should be drilled in each bracket in the designated places, then the brackets should be placed on the solar panel frame and the corresponding holes marked and then drilled (smaller diameter) in the solar panel frame. Then the brackets should be fixed to the solar panel using self-tapping screws (not included). Finally, while the brackets are fixed to the solar panel they should be bonded to the roof using an appropriate sealant or adhesive (not included). Any extension cables can then be fed through the cable entry gland which should then be bonded to the roof in the same way as the brackets.
