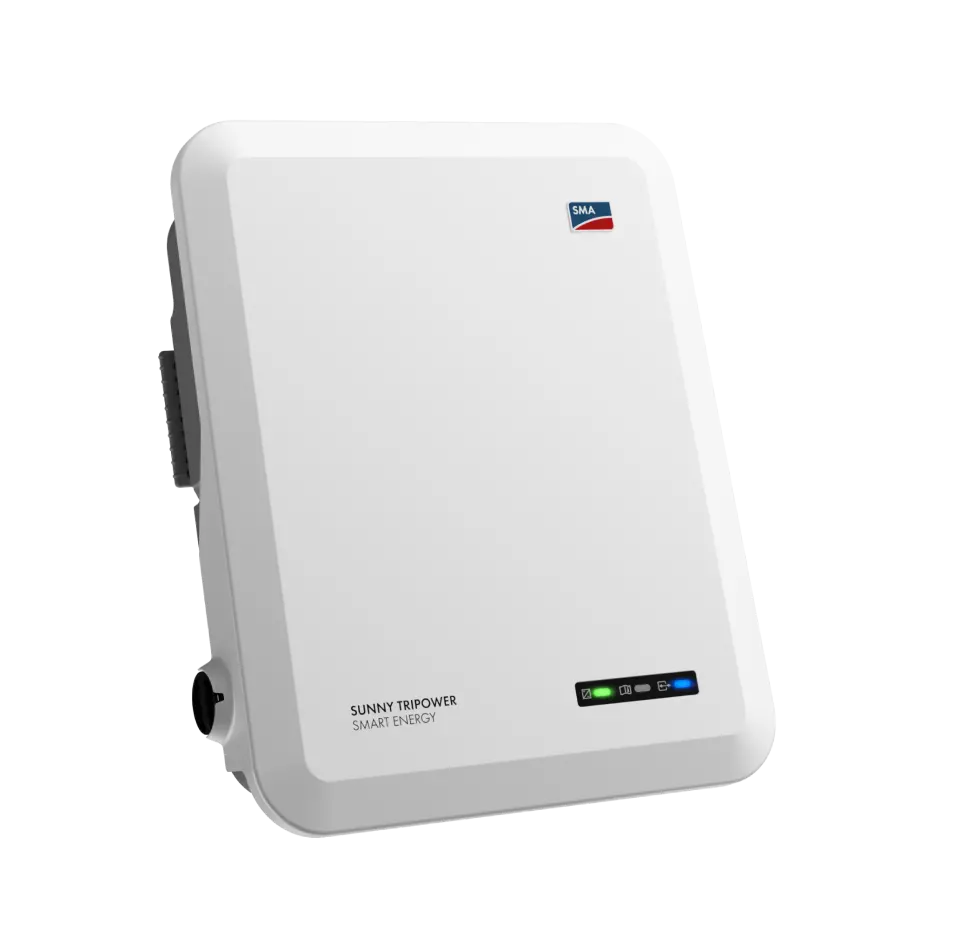

SMA Sunny Tripower Smart Energy Hybrid Inverters

The SMA Sunny Tripower Smart Energy hybrid inverter isÿ idealÿ for supplying solar power to three-phase properties.

Combines smart technology and integrated services to create a space-saving compact system. Users can easily and conveniently generate, use and store solar power. It is possible to make additions to the system at any time, incorporating e-mobility or heat pumps.

Theÿintegrated battery-backup functionÿsafeguards the electricity supplyÿeven in the event of a grid failure. That makes PV systems comprehensive, smart energy systems with solar energy self-sufficiency of up to 100 percent.

Features:

• Three-phase / DC-coupled hybrid inverter/charger
• Integrated battery-backup function
• Fast charging
• Compatible with BYD HVS & HVM batteries
• Smart energy management with the Sunny Home Manager
• Maximum energy yield thanks to SMA ShadeFix
• Intuitive commissioning via app
• Quick and easy to install thanks to external terminals
• Compact design means minimum space requirements

Specifications

Power:ÿ 5.0kW / 6.0kW / 8.0kW / 10.0 kW
DC-Voltage (Battery):ÿ150 VDC ? 600 VDC
Max DC-Current (Battery):ÿ30 A
Efficiency (max.):ÿ98.2%
Warranty:ÿ5 years / 10 years with registration in Sunny Portal / Sunny Places
