Product Details

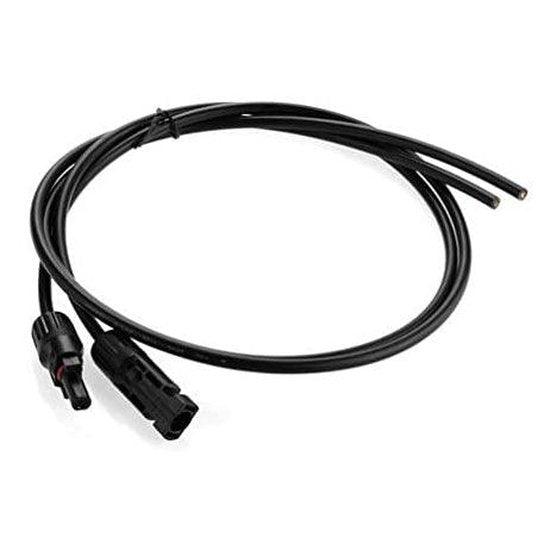

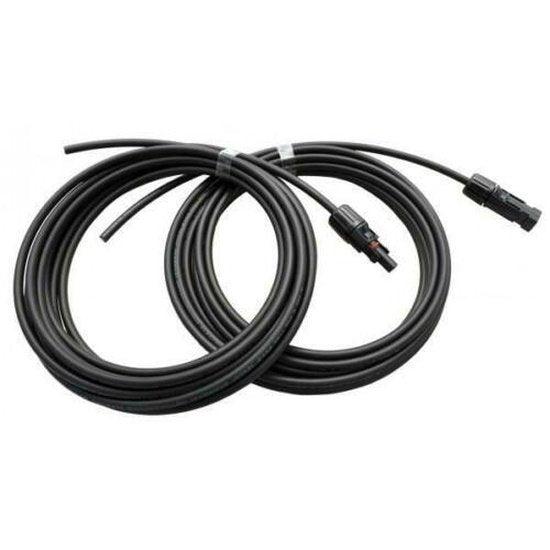

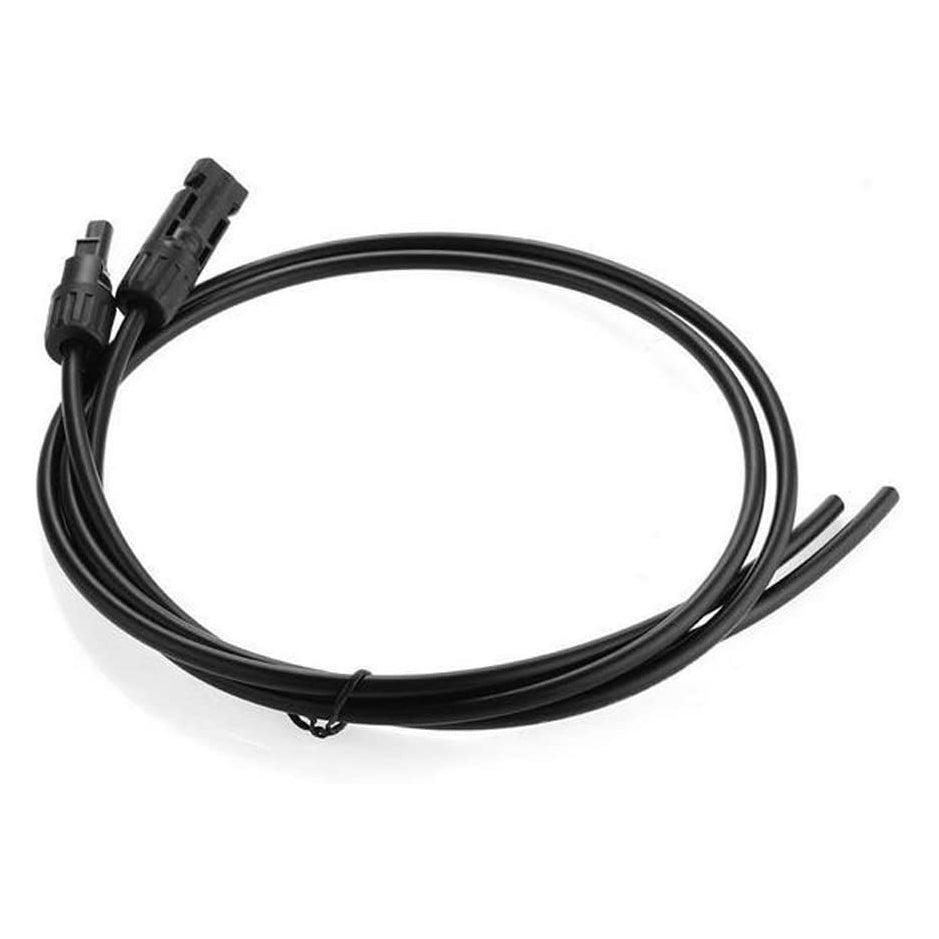

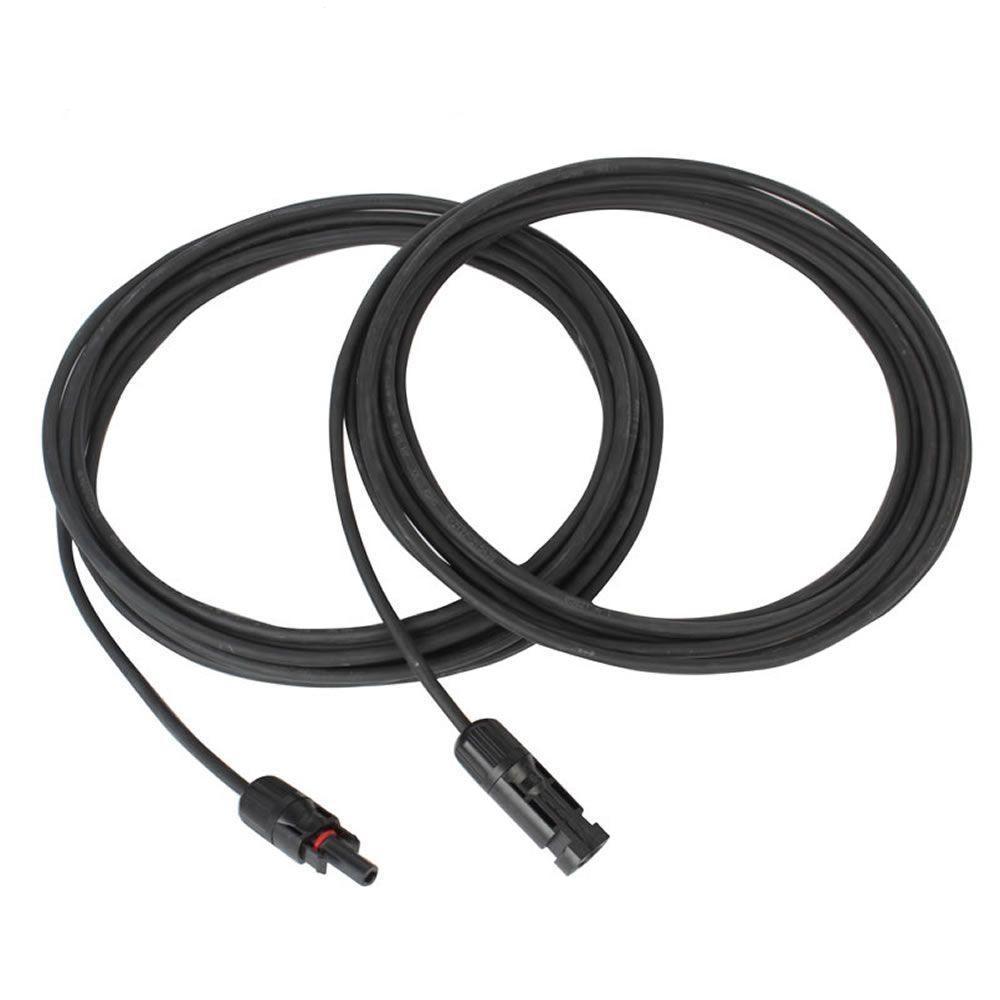

This pair of single core solar extension cables is specially designed for solar panels to carry high current and have negligible power loss. Featuring waterproof MC4 connectors ("male" on one lead, "female" on the other lead), these cables can be easily connected to similar MC4-type connectors on most solar panels, including Photonic Universe solar panels. These cables are suitable for all weather conditions, including cold and hot temperatures, ensuring reliable performance throughout the year.
Key Features:
- Waterproof MC4 Connectors: Ensures secure, weatherproof connections to most solar panels.
- High Current Capacity: Designed to carry high current with minimal power loss.
- Weather Resistant: Suitable for all weather conditions, from extreme cold to hot temperatures.
- Easy Installation: Simple plug-and-play connection with matching MC4 connectors.
Specifications:

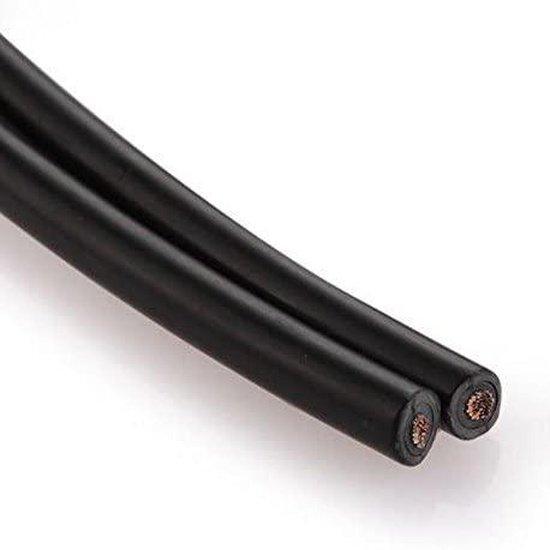

- Conductor Material: Tinned copper
- Cross Section: 6.0mm²
- Construction (N/mm): 84/0.30
- Conductor Diameter: 3.17 mm
- Conductor Resistance: 3.39 Ohm/km (20°C)
- Insulation and Jacket Material: 120°C XLPE
- Working Temperature Range: -40°C to +90°C
- Certification: TUV
- Outer Diameter: 7.0 mm
Ideal for:
- Off-Grid Systems: Perfect for 12V solar panels and systems up to 300W.
- On-Grid Systems: Suitable for panels with typical voltages of 30-60V and higher power ratings.
Applications:
- Solar panels in residential, commercial, and industrial setups
- Renewable energy systems
- Outdoor solar power installations
Installation:
Simply connect the male and female MC4 connectors to the corresponding connectors on your solar panels for a secure and reliable connection.
