Morningstar TriStar MPPT 45A Solar Charge Controller

As an official distribution partner of Morningstar products across the globe, we are proud to offer solar charge controllers from this world-leading supplier. Innovative design from years of dedicated research and superior build quality enable these top-of-the-range solar charge controllers to extend battery capacity and life, maximize energy production, and consistently achieve high performance standards.

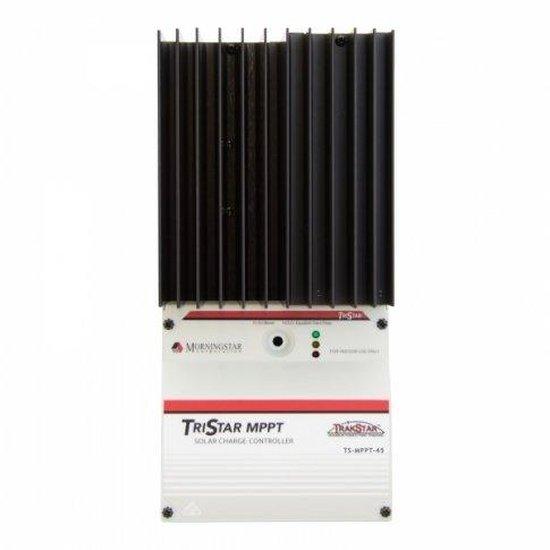

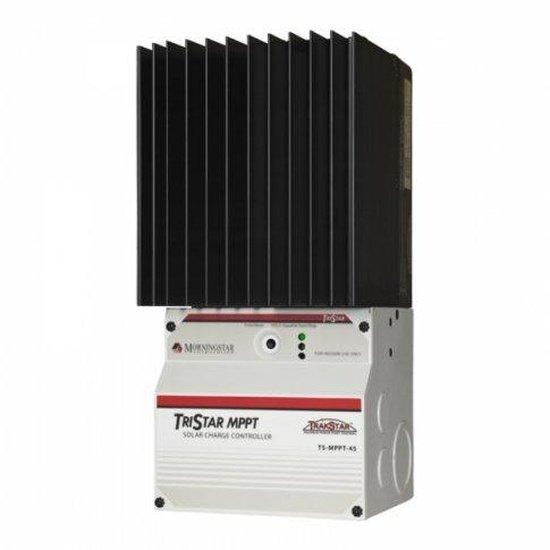

This high-quality Morningstar TriStar™ MPPT 45A solar charge controller is suitable for 12V, 24V, 36V, or 48V battery banks. It uses TrakStar Technology™, which provides the very best automatic power point tracking by sweeping the I-V curve faster than any other MPPT controller on the market, maximizing the energy harvest of the solar PV array. Setting an industry record of 99% peak efficiency and subsequently reducing power losses through the solar power system, this MPPT controller guarantees an excellent return on investment.

The controller is designed to protect batteries while charging them, providing automatic cut-off to prevent over-charging and deep discharge. It comes with a full range of protection functions: overload, short circuit, high voltage, reverse polarity, high temperature, lightning and transient surges, reverse current at night.

Other key features include:

• Extremely high reliability: With a large heat sink, no cooling fans, and a robust thermal design for high operating temperatures
• Better peak power point tracking: Excellent performance ratings at sunrise or during times of shading
• Incredibly high peak efficiency: 99% - a performance record in the solar industry
• Extensive communication capabilities: Internet access for custom settings, data logging, and remote monitoring
• Easy to install and use: Fully automatic operation, fault recovery, and up to 200 days of data logging

This controller can work with sealed, gel, and flooded batteries. The maximum allowed input solar power for this controller is 600W (12V), 1200W (24V), 1800W (36V), and 2400W (48V). The controller can also be connected to the TriStar remote meter with a 30m extension cable (sold separately) to view detailed charging parameters and remotely monitor your system.

Click on the Details and Specifications tab for more information about this product.

Controller Specifications:

• Nominal battery voltage: 12V / 24V / 36V / 48V
• Maximum output current: 45A
• Solar input voltage: Up to 150V
• Terminals: 3 pairs (input, battery, output), plus ports for computer connectivity and an optional remote meter
• Indicators: Multi-colour LEDs to indicate charging and battery status
• Temperature sensor: Automatic compensation (-5mV/C/cell) operating between -30°C and +80°C
• Minimum voltage to operate: 8V
• Self-consumption: < 2.7W
• Working temperature: -40°C to +45°C
• Humidity: 100% non-condensing
• Enclosure: IP20 (indoor and vented)
• Size: 291 x 130 x 142 mm
• Weight: 4.14 kg
• Mounting hole: For ease of installation

This product is covered by a 5-year manufacturer warranty. This product comes with an instruction manual (see the 'Documents' tab) which explains connections and operations. If you need help with installation or have any technical questions, we can provide FREE support - please contact us by email or phone.

The following documents are available to download:

• Data sheet for TS-MPPT-45 Morningstar TriStar MPPT solar controller
• Instruction manual for TS-MPPT-45 Morningstar TriStar MPPT solar controller
