Product Details

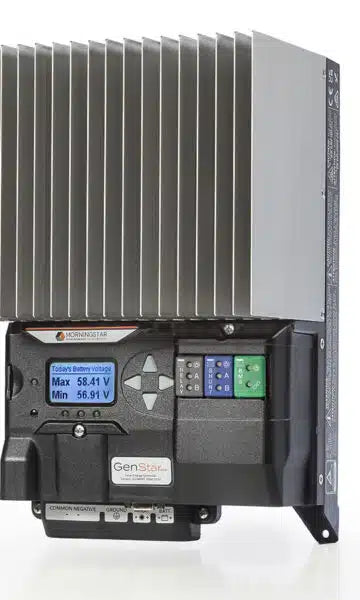

The newÿGenStar MPPTÿis the first model in Morningstar?s new Integrated Series and represents the industry's first truly "smart" controller with all built-in intelligence, communications, and control features instead of requiring additional external components.
GenStar models have charge ratings of 60A, 80A, and 100A and include built-in load control. In addition, GenStar supports full network integration without requiring adapters or extra equipment: Modbus and ModbusIP via RS-485, Ethernet, WiFi, and MS-CAN for connecting Morningstar devices. GenStar also includes Morningstar?s LiveView 2.0 interface application.
GenStar is upgradable through Morningstar?s ReadyRail architecture and snap-in ReadyBlocks to provide additional features and capabilities. ReadyShunt enables metering/monitoring and critical measurements. ReadyRelay provides signaling and advanced load control. Finally, ReadyBMS delivers complete communications and management with lithium batteries.
KEY FEATURES AND BENEFITS
- ReadyBlockÿexpansion system through exclusive ReadyRail design achieves true controller technology integration. All information is instantly available since it?s actually part of the hardware and software of the charge controller itself, instead of outside the system as with a typical stand-alone accessory device. Available ReadyBlock modules include:
- ReadyShuntÿ? battery metering/monitoring, key metrics including SOC, energy in/out (Amp hours), current measurement for system sources and loads, and more
- ReadyBMSÿ? full communications and control with lithium batteries
- ReadyRelayÿ? signaling (dry contact), advanced load control
- Full network integration without requiring adapters or extra equipment? Modbus and ModbusIP via 485, Ethernet, WiFi, MS-CAN connects MS Devices (proprietary), GS network information bridging.
- WiFi, and Bluetooth connectivity with a mobile device and app for easy connection, dashboard views, downloading True Controller Technology Integration WiFi and Bluetooth Connectivity
- Powerful Load Control ? built-in 30A loadÿcapability, unique for controllers in thisÿpower class
- Fanless Designÿfor improved efficiency andÿexceptional long-term reliability
- Oversized PV Array Input capability ? arrayÿinput power rating @ 150% meets today?sÿsystem design needs for PV oversizing
- Extensive electronic protections includeÿcold-weather lithium ?fold back? circuitryÿto guard against cold-weather charging damage. Also, short-circuit, over-currentÿand reverse polarity to ensure theÿcontroller will not be damaged by wiringÿmistakes or overloads
