Product Details

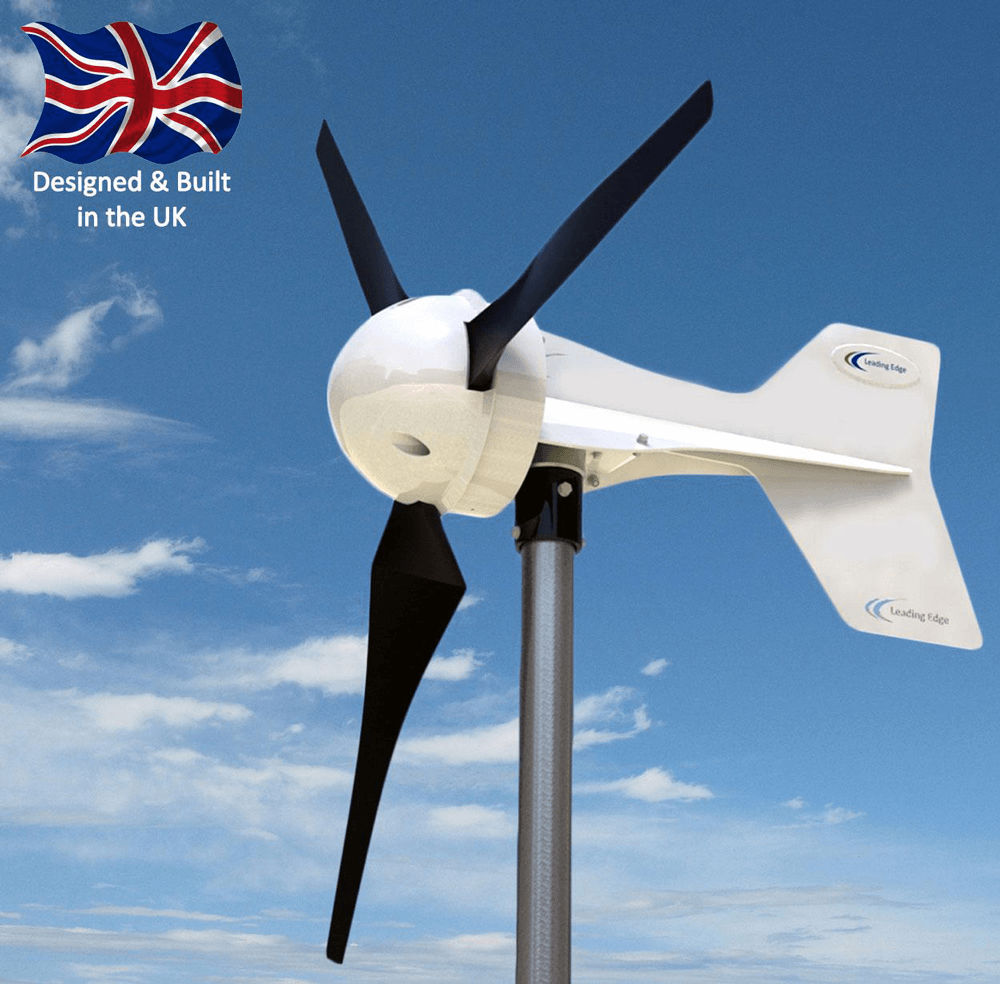

The Leading Edge LE-300 wind turbine, efficient, compact, quiet and considered to be the most rugged and reliable horizontal axis wind turbine in its class.
Available in 12V, 24V and 48V options to suit various battery charging applications. (48V option available on request)
A marine version of this turbine is also available by request which is fully optimised for marine conditions. This, the standard, version is ideal for off-grid home and industrial applications on land.
The controller is an integrated solution designed to prevent 12 or 24 Volt batteries from overcharging. It incorporates a 300 Watt resistor / heater and controller board in a stout powder coated steel enclosure.
Features
- Durable and reliable - designed to withstand storm force winds up to 27m/s (60mph)
- Powerful - 85W at wind speeds of 8m/s (18mph)
- Lightweight head - reduced loading on tower and easier to install
- Whispower blades - aerofoil blade design developed specifically for this turbine generate low acoustic emissions
- Rugged - aluminium alloy and stainless steel components are protected with aerospace grade coatings and anodising
- 5 year warranty
- Made in the UK
Specifications
- Rotor Diameter: 1 metre
- Rotor Type: 3-Blade upwind
- Blade Material: Glass Reinforced, UV resistant Nylon

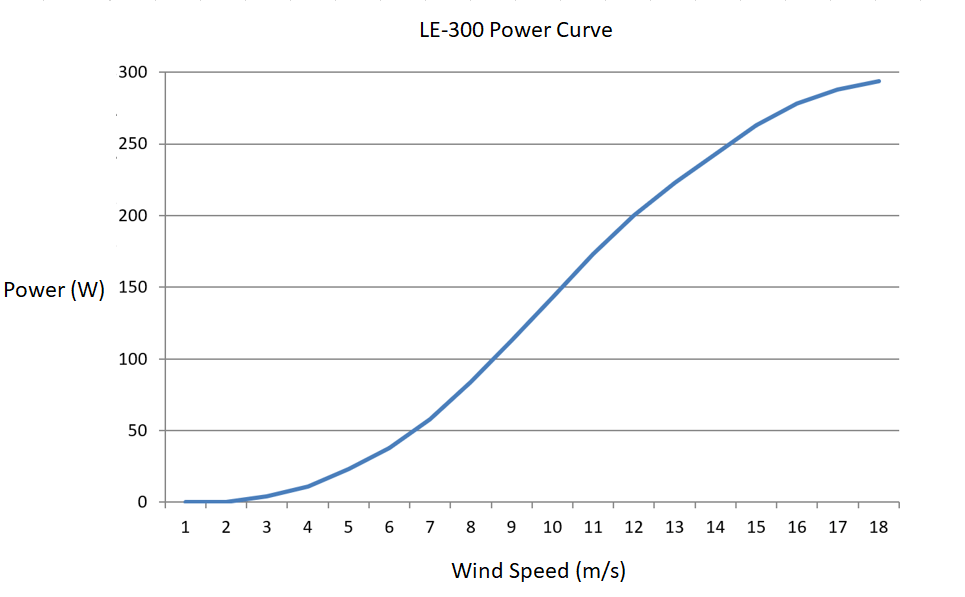

- Rated Output: 85W at 8m/s (18mph)
- Peak Output: 300W
- Cut-in speed: 3m/s (6.7mph)
- Weight: 6.5kg
- Generator Type: 3-Phase Brushless NIB rotor PMA
- Mounting Pole: 48.3 or 50.0mm outer diameter (3mm wall thickness)
- Output Voltage: 12, 24 or 48V
